Midas PRO SERIES

Wiring instructions 39
PRO Series Live Audio Systems
Owner’s Manual

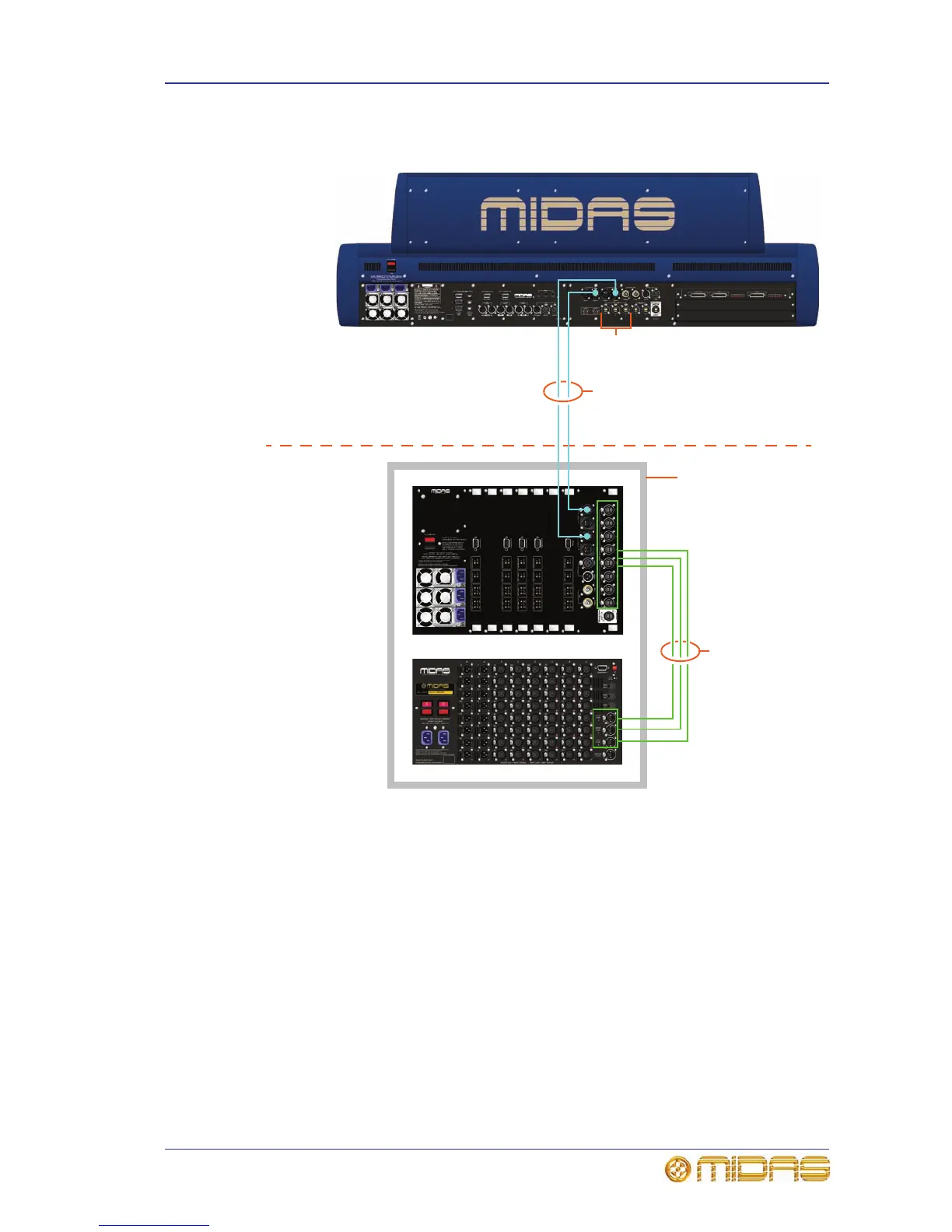

Figure 7: Standard PRO3 system configuration
DL371 Audio
System Engine
(4 x AES50
expansion ports)
Rack (the DL251 and
DL371 units are
typically located in a
single 14U rack)
Maximum 100 m,
typically 0.5 m
(N+1 redundant
AES50)
Cat 5e snakes (100 m, bi-directional,
192 + 192-channel)
PRO3 Control Centre
(control surface, router, 8 x inputs, 8 x outputs, 8 x insert
Jack I/O pairs and 6 x monitor outputs)
DL251 Audio System
I/O (48 x inputs and
16 x outputs)
Mix position
Stage
3 x AES50 expansion
ports
