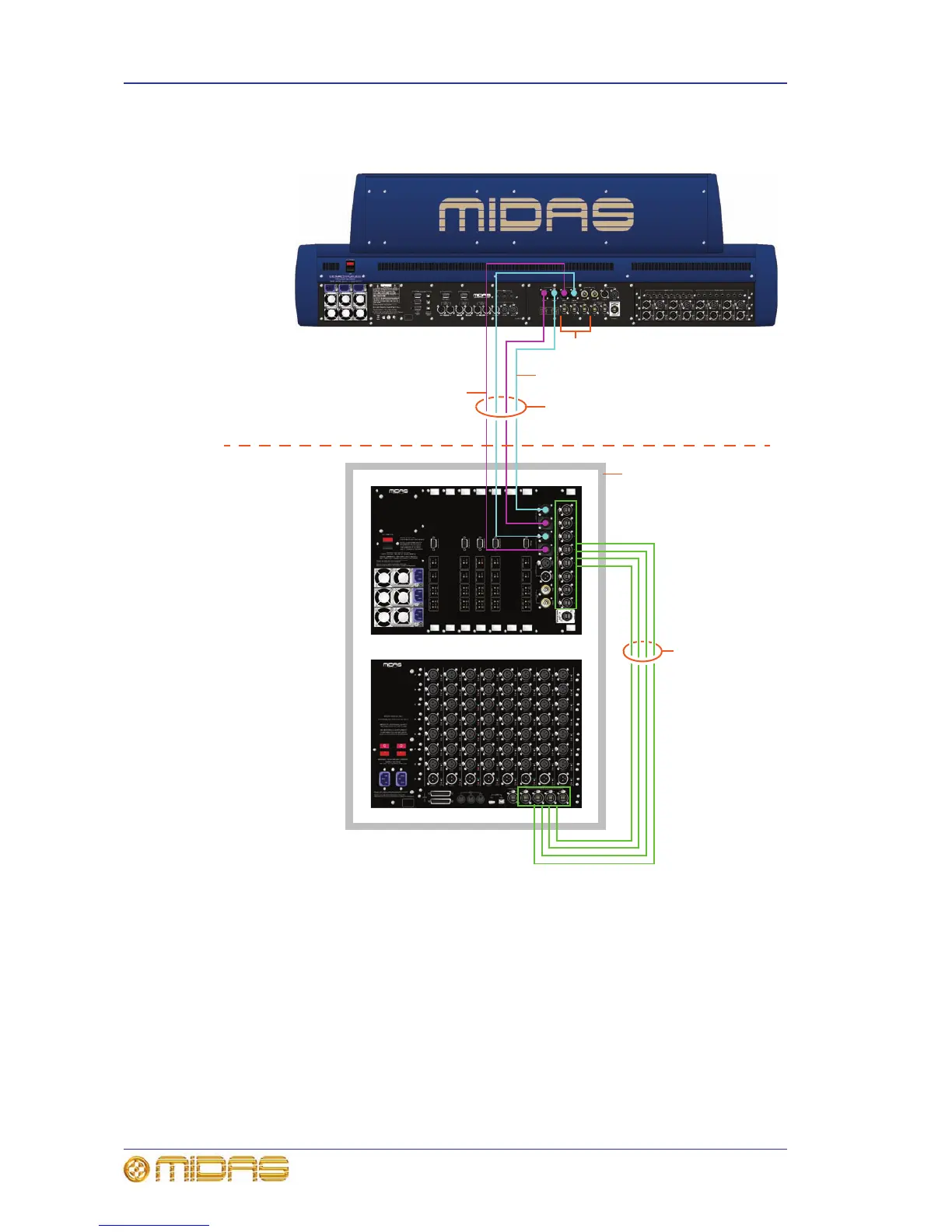

Figure 8: Standard PRO6 system configuration
3 x AES50 expansion
ports
DL371 Audio
System Engine
(4 x AES50
expansion ports)
Rack (the DL351 and
DL371 units are
typically located in a
single 14U rack)
Maximum 100 m,
typically 0.5 m
(N+1 redundant
AES50)
Dual cable redundant HyperMAC
(fibre optic or copper)
PRO6 Control Centre
(control surface, router, 8 x inputs, 8 x outputs, 8 x insert
Jack I/O pairs and 6 x monitor outputs)
DL351 Modular I/O
(56 x inputs and
8 x outputs)
Copper
Fibre optic
Mix position
Stage

Midas PRO SERIES Specifications

General

Series	PRO SERIES
Sample Rate	96 kHz
Word Clock	Yes
Type	Digital Mixing Console
Mix Buses	Up to 24
Connectivity	AES50
Control Surface	Motorized Faders
EQ Bands	4-band Parametric EQ per channel
Effects	Multiple internal effects engines
Frequency Response	20 Hz - 20 kHz
Processing	40-bit floating point
