Maintenance Manual > Adjustment > Mechanical Adjustment > LED-UV Unit Height Adjustment
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver 1.80 / 1.00 Remark
2.0
Rev.
4.3.4 LED-UV Unit Height Adjustment
 Outline
The up/down position of the LED-UV Unit is mechanically adjusted. The gap between the LED-UV Unit and table is
set to 2mm while the head gap is 1.5mm.

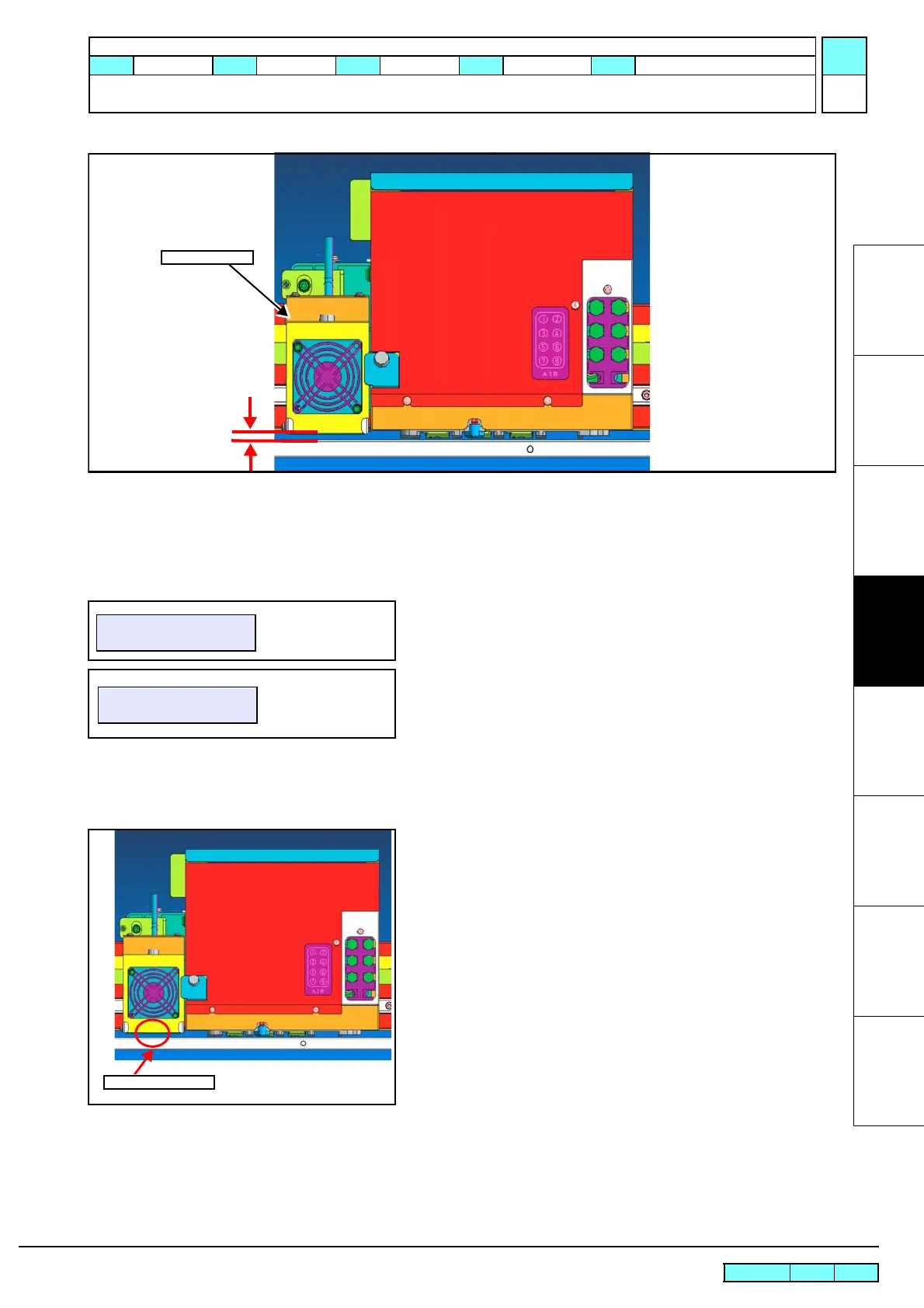

 Check the Height of LED-UV Unit
1. Raise the table to the highest position.
2. Move the carriage to place of “X=150,Y=150”.
3. Turn the sub-power switch to OFF then the main power to OFF.
4. Remove the Front cover. (See6.1.1)
5. Measure the gap between the LED-UV Unit and table using a
thickness gauge.
Measurement point : One point from center part of the LED-
UV Unit base
The rated value : 2.0 ±0.25mm
* If the measured value is out of the specified range, adjust the
height of the LED-UV Unit.
The adjustment procedure is given in the following steps.
2.0mm
LED-UV Unit
ORIGIN SET UP
TABLE HEIGHT 50.0
ORIGIN SET UP
150.0 150
Measurement point
