MIMAKI UJF-3042 User Manual

© 2011 MIMAKI ENGINEERING CO.,LTD. 6.2.9 R.2.0 P.2

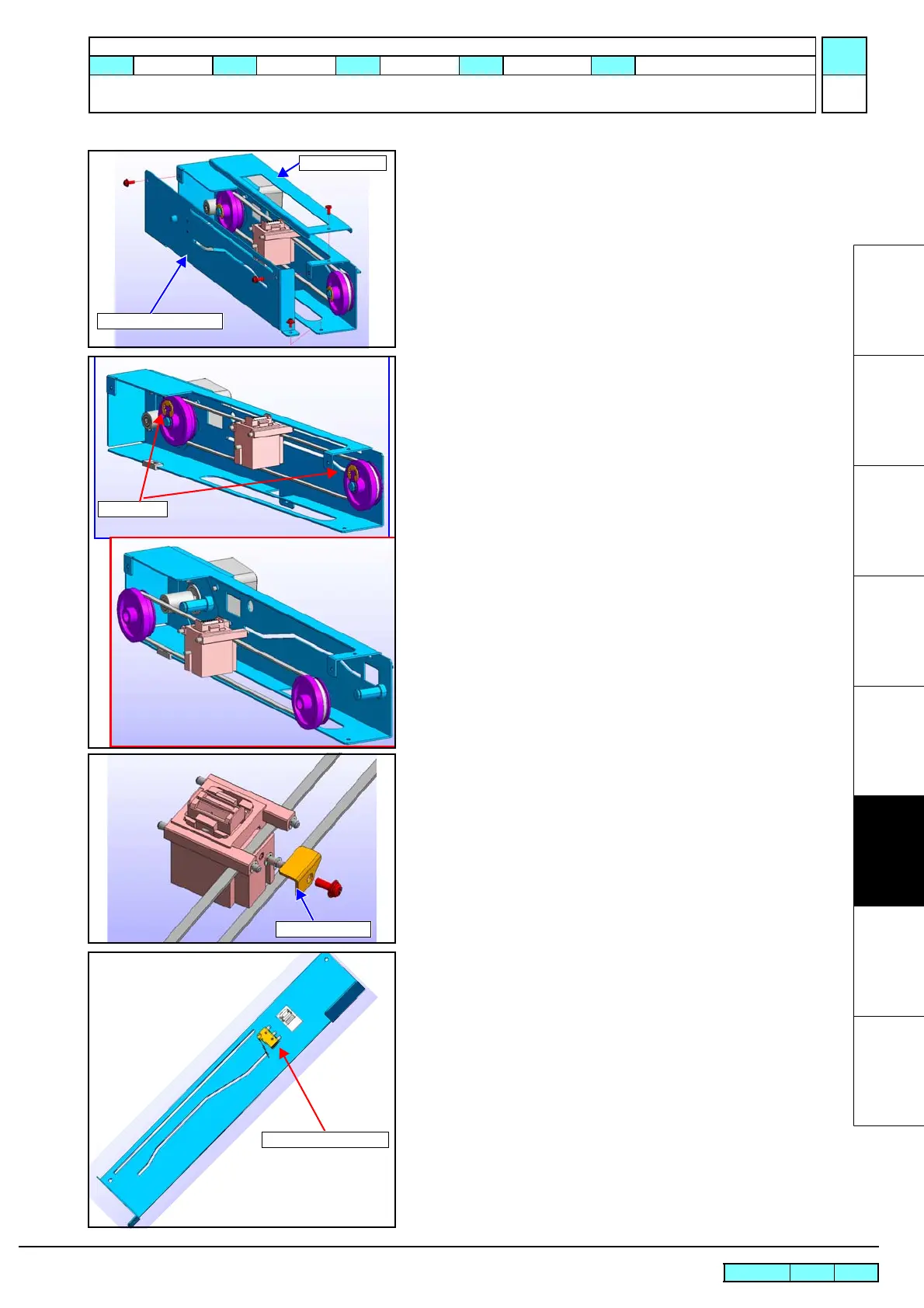

6.2.9 Wiper unit Assy(Belt, Sensor)
1
2
3
4
5
6
7
8
4. Remove the following parts:
•Wiper Cover
•Wiper BKT 2
5. Take the Belt pulley off. (with the nozzle Assy fixed)
• Remove the E-Ring.
6. Take the Nozzle Assy off.
• Remove the Belt holder.
7. Take the Wipaer Origin Sensor off.
8. Perform the assembly by reversing the disassembly procedure.
Wiper BKT 2
Wiper Cover
E-Ring
Belt holder
Wiper Origin Sensor
Maintenance Manual > Disassembly and Reassembly > Ink-related Parts > Wiper unit Assy(Belt, Sensor)
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver --- Remark
2.0
Rev.
