Maintenance Manual > Disassembly and Reassembly > Sensors > Table Cover sensor
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver --- Remark
2.0
Rev.

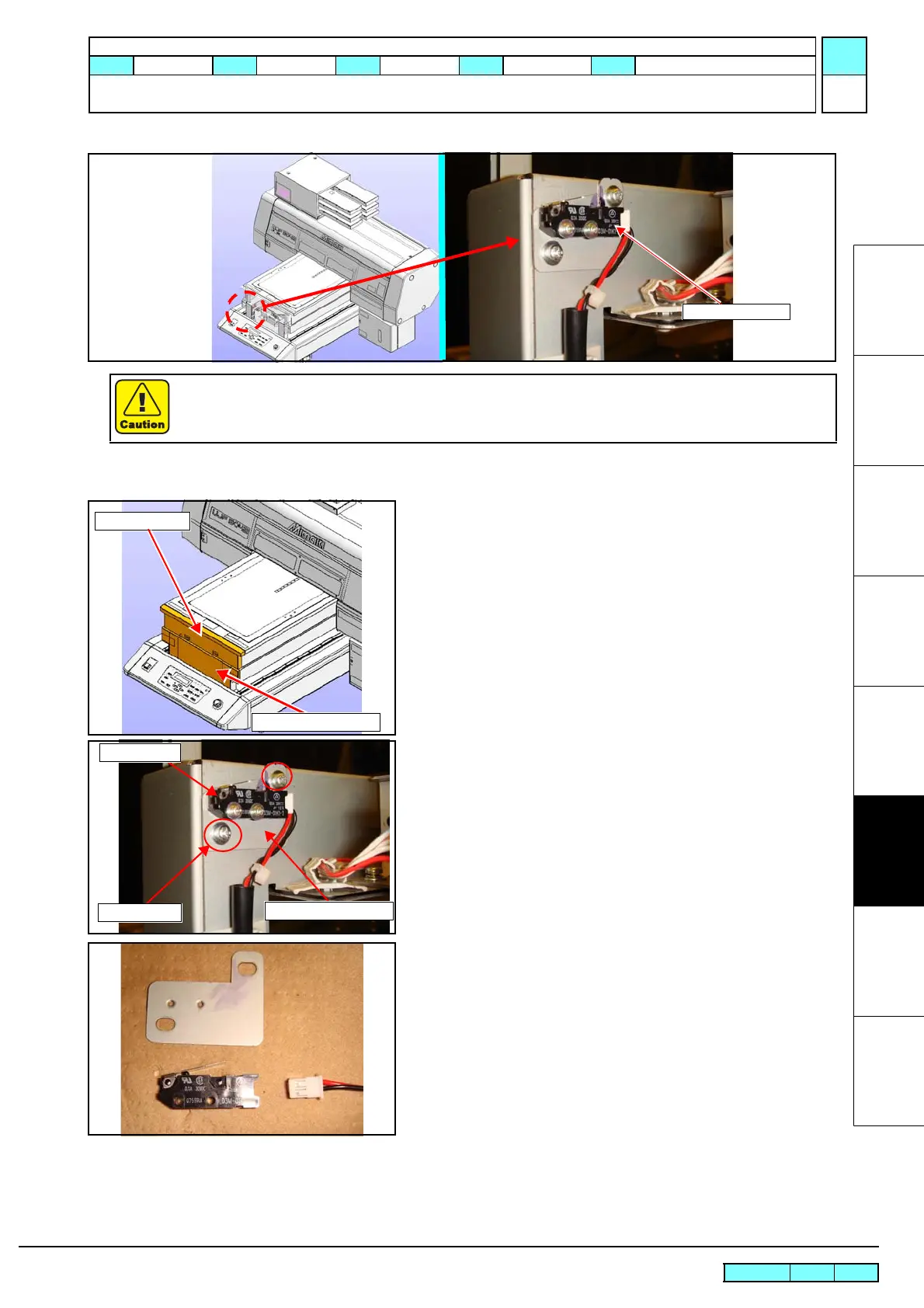

6.5.5 Table Cover sensor
 Working Procedure
1. Turn the main power off.
2. Remove the Following covers.
• Front Cover Under-TB
• Front Cover TB
3. Take the Inter lock BKT off.
4. Take the Sensor(Micro Switch) off.
• Remove two fixing screws.
• Disconnect the connector of the sensor.
5. Perform the assembly by reversing the disassembly procedure.
 To turn power off, be sure to turn the main power OFF.
Table Cover sensor
Front Cover TB
Front Cover Under-TB
Inter lock BKT
Sensor
Fixing screw
