MIMAKI UJF-3042 User Manual

© 2011 MIMAKI ENGINEERING CO.,LTD. 6.3.1 R.2.0 P.2
6.3.1 X-axis Motor Assy
1
2
3
4
5
6
7
8
L

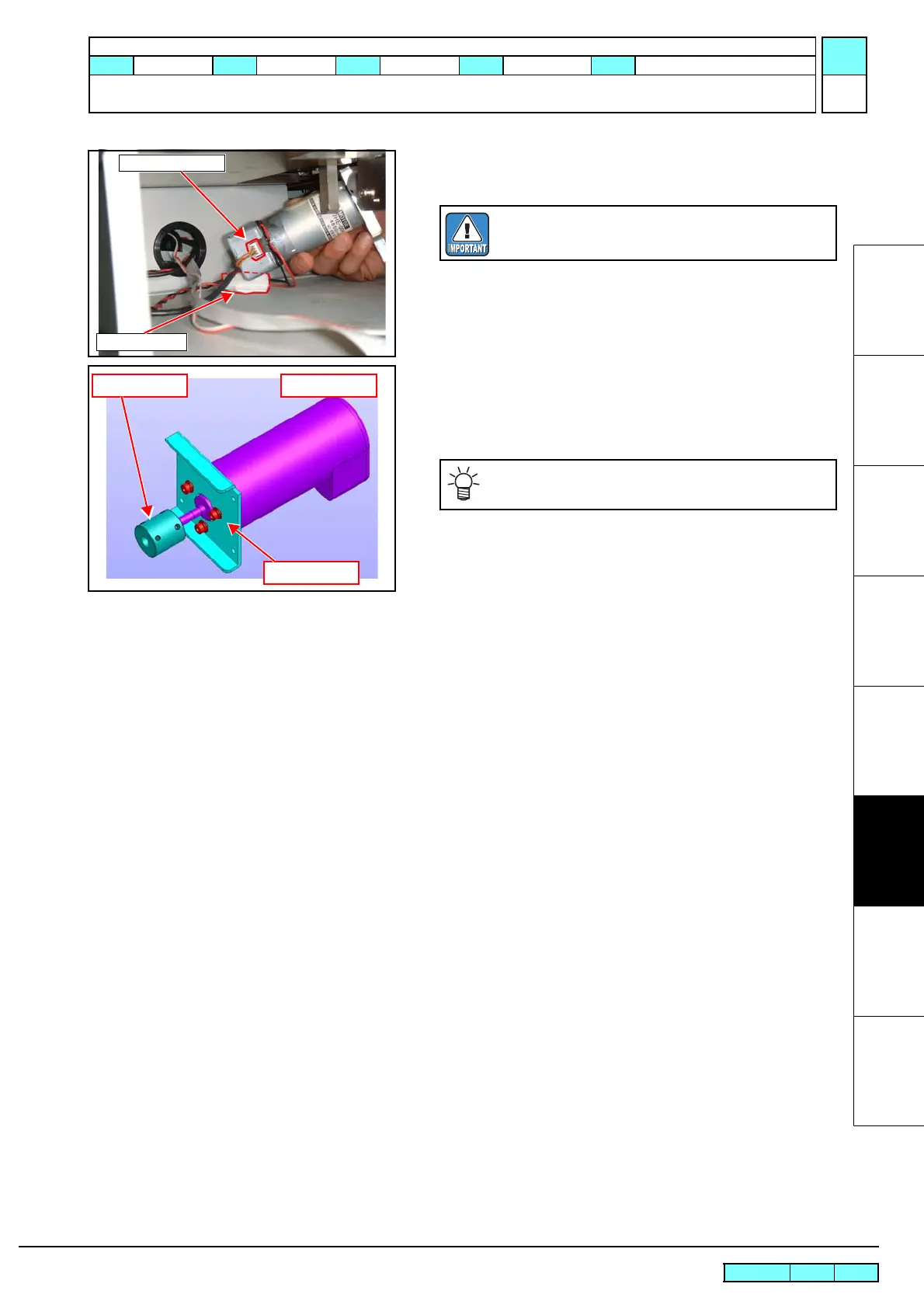

6. Disconnect the Encoder Connector and relay connector, and
then take out the motor.
*Disassembling shall be up to the status in the left figure.
• As the fixing screw of the coupling to the X motor shaft is
locked, it cannot be removed. Therefore, you cannot remove
the X motor BKT.
7. Perform the assembly by reversing the disassembly procedure.
Encoder Connector
relay connector
Remove the motor, taking care not to drop it.
coupling
X Motor BKT
X Motor
 Maintenance parts for replacing the X motor is
provided in the Assy indicated in the left figure.
Maintenance Manual > Disassembly and Reassembly > Driving Parts > X-axis Motor Assy
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver --- Remark
2.0
Rev.
