Maintenance Manual > Disassembly and Reassembly > Driving Parts > Mist Suction Fan Assy
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver --- Remark
2.0
Rev.

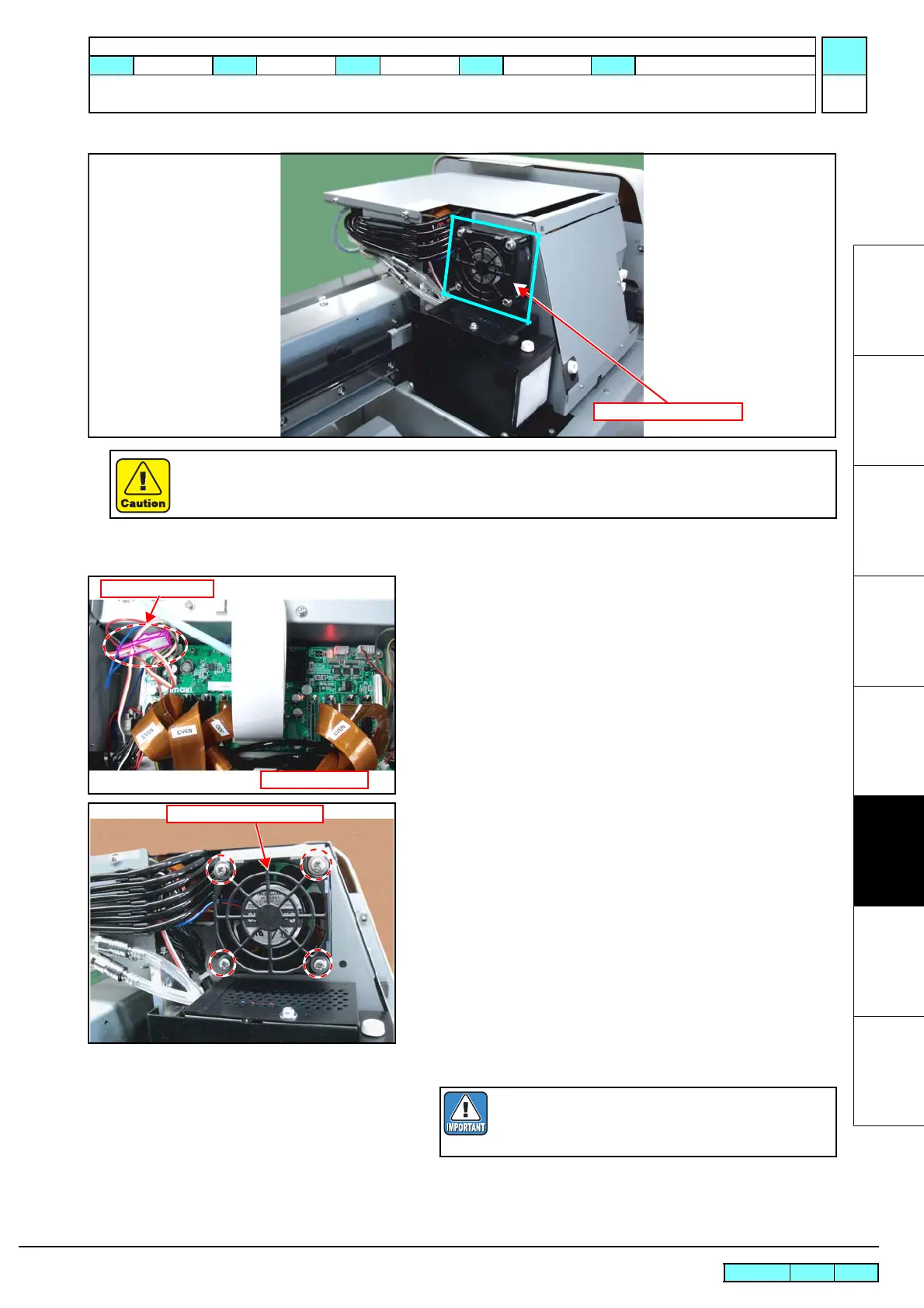

6.3.6 Mist Suction Fan Assy
 Procedure
1. Turn the main power OFF.
2. Remove the following covers:
• Front Cover
• Upper Cover
• Slider PCB Cover
3. Disconnect the relay connector shown in the left figure.
4. Remove the Mist Suction Fan Assy.
Screw : P3x35SMW x4
5. Perform the assembly by reversing the disassembly procedure.
To turn power off, be sure to turn the main power OFF.
Mist Suction Fan Assy
Slider PCB
Relay connector
Mist Suction Fan Assy
 When assembling, pass wiring of the fan under the
ink tube and be careful about wiring not coming
out.
