Maintenance Manual > Disassembly and Reassembly > Driving Parts > Motor Coupling
Model UJF-3042/FX Issued 2010.08.27 Revised 2013.07.18 F/W ver --- Remark
2.0
Rev.
6.3.10 Motor Coupling
Applicable scope:
M013772_X gearbox Assy II (UJF-3042-FX #1191 or later)
The coupling for the previous type, M009998_X gearbox Assy cannot be replaced.
 Procedures

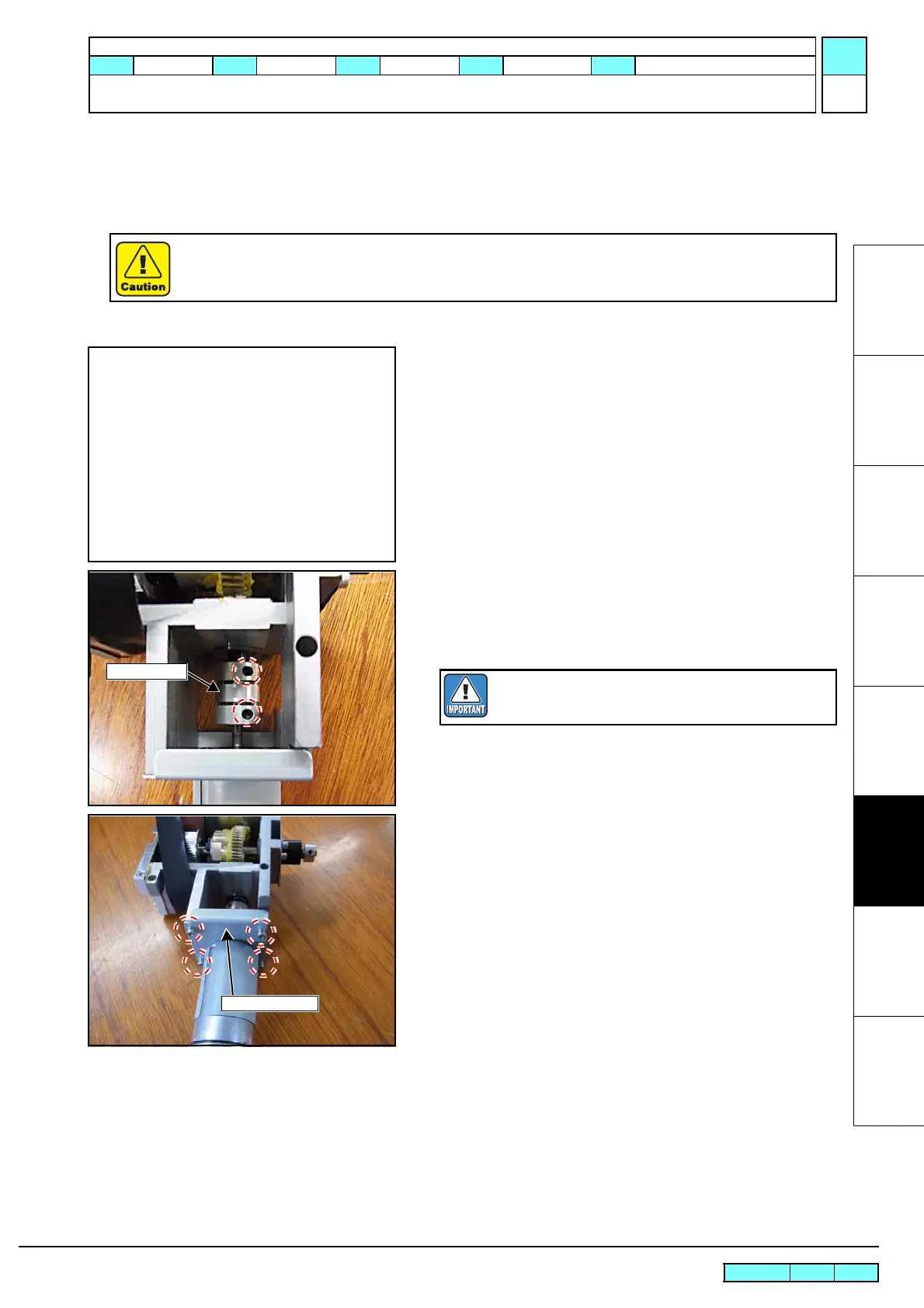

1. Remove the X gear box Assy.
Refer to ("6.3.9 X Gear Box") for the removal procedure.
2. Loosen the clamp bolt on the coupling, and remove the screws
(CS4x8 SMW) on the X motor BKT.
Remove the X motor, X motor BKT, and coupling from the X
gearbox Assy.
3. Replace the coupling.
To turn power off, be sure to turn the main power OFF.
Coupling
Do not remove the clamp bolt from the coupling.
X motor BKT
