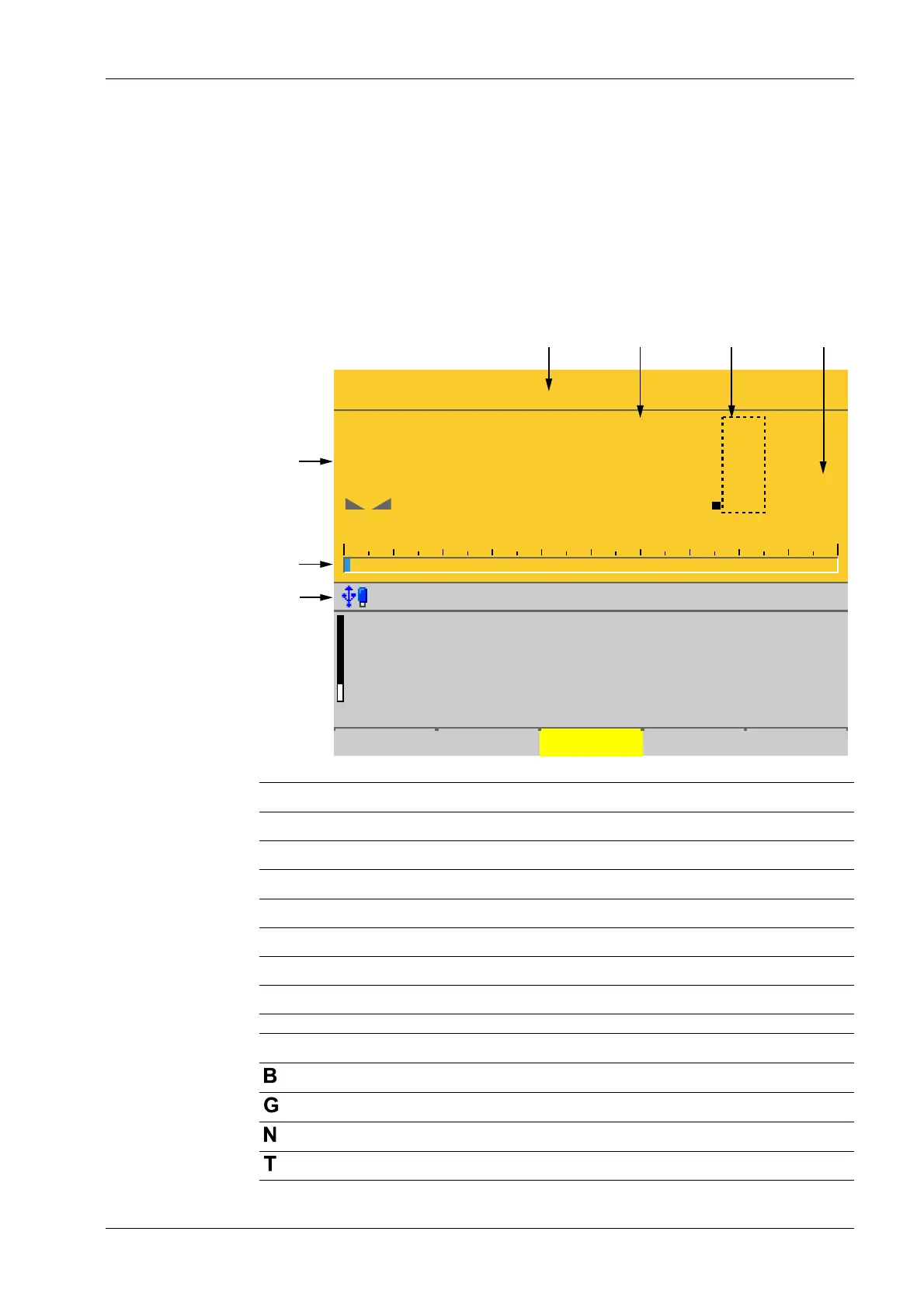

2.1.2.1 TFT user interface display
The TFT color graphics display can show weight values of up to 7 digits with decimal point
and plus or minus sign. The available mass units are t, kg, g, mg, lb, or oz.
The lb and oz units are not permitted for use in legal metrology in the EU and EEC.
Below the weight display, the currently displayed weight is shown in a bar graph that
indicates the percentage of the maximum capacity (Max). 0 is on the left, and 100% on the
right.
WP-A Max 12200g d= 0.1g
Min 5g e= 1g
9 041 g
N
+
5g 12200g
Weighing point A @admin
Net=Gross
Net
Tare
<1115.[9] g>
<140.[9] g>
975.0 g
A
A
A
Set tare
7654
3
2
1
No. Description
1 Info line
2 Bar graph
3 Weight type/plus or minus sign/standstill
4 Status display
5 Weight value
6 Border around decimal place
7 Symbols/mass unit
Weight type/plus or minus sign Description
Gross weight
Gross weight in NTEP or NSC mode
Net weight (Net = gross - tare)
Tare weight
