8 Operation
Maschinenfabrik Reinhausen GmbH 2020 1093587317/21 EN TAPCON
®
Reference time
You can use this parameter to set which time is to be transmitted by the con-
trol system. The device uses this information for time synchronization
[►Section 8.5, Page 97]. You can select the following options:
Option Description
Local The control system transmits the local time.
Note: If you use this option, you must deactivate the au-
tomatic changeover between daylight saving time and
standard time [►Page 98]. Otherwise the device will use
an incorrect time.
UTC The control system transmits the time as UTC. The de-
vice calculates the local time from UTC and the set time
zone [►Page 98].
Table28: Reference time
8.8.4 Configuring IEC 60870-5-104 (optional)
If you want to use the IEC 60870-5-104 control system protocol, you must
set the following parameters. Also refer to the section Configuring the net-
work [►Section 8.3, Page 92].
Settings
Parameters
IEC 60870-5-104
Name Value
TCP port 2404
ASDU address 1
ASDU sequence optimization None
Reference time UTC
Home
Events
Information
Recorder
Settings
EN
CHANGE
REBOOT
admin 31.01.2020 13:05

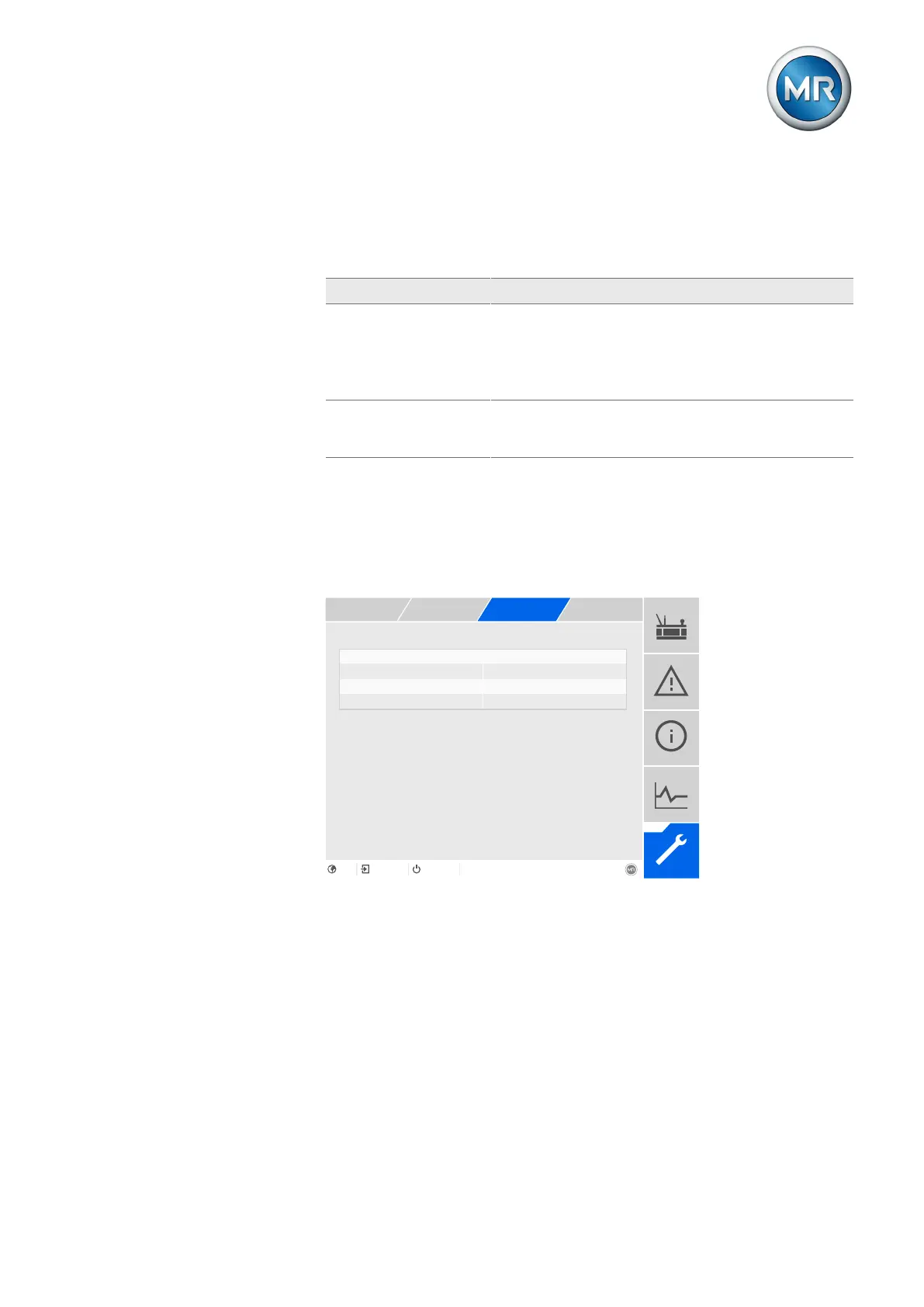

Figure84: IEC 60870-5-104
1. Go to Settings > Parameters > System > IEC60870-5-104.
2. Select the desired parameter.
3. Set the parameter.
4. Press the Accept button to save the modified parameter.
TCP port
You can use this parameter to set the TCP port.
