MR TAPCON - Analog Inputs and Outputs

15 Technical data
Maschinenfabrik Reinhausen GmbH 2020 3173587317/21 EN TAPCON
®

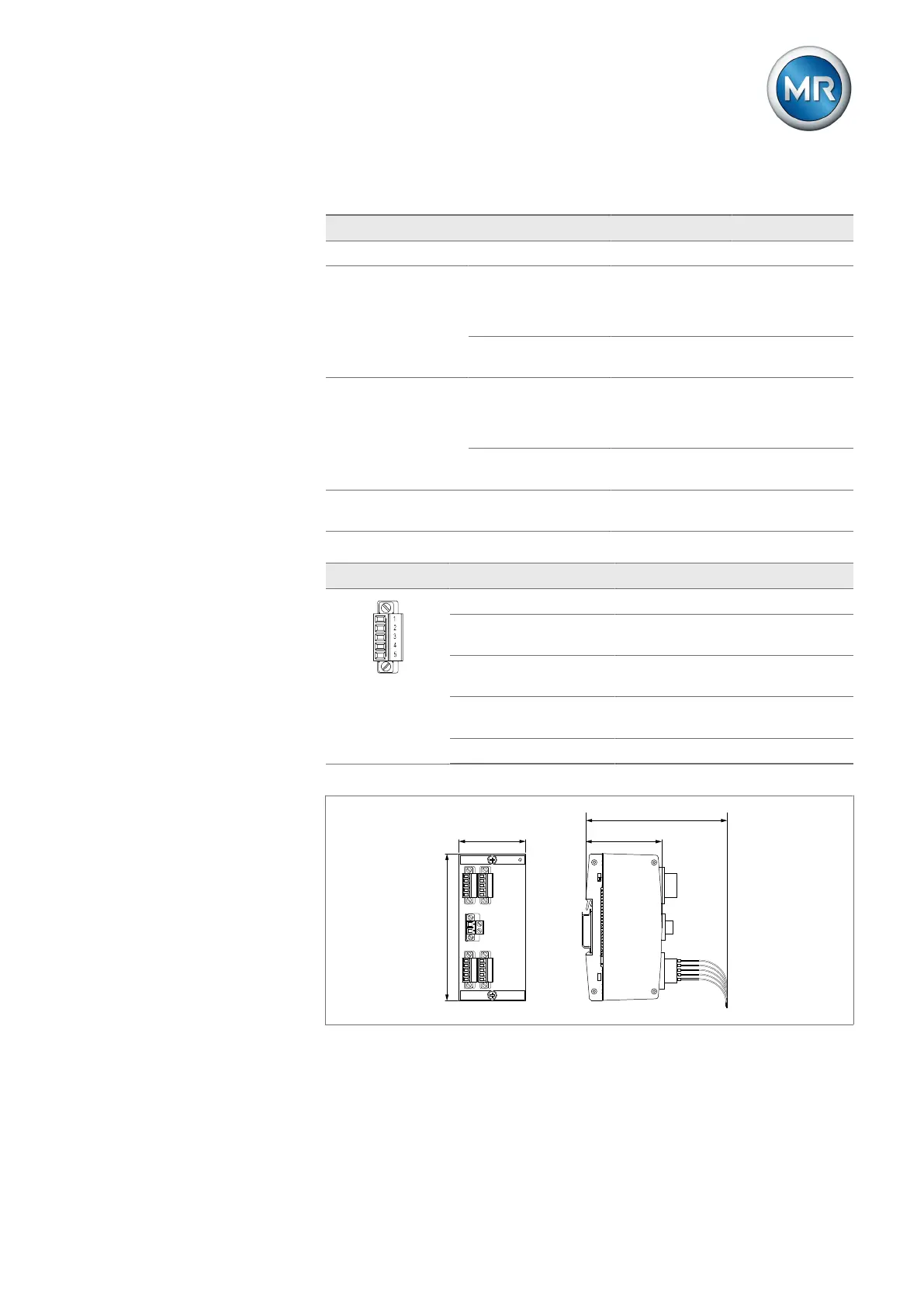

15.5 Analog inputs and outputs
AIO2 AIO4
Channels (input or output) 2 4
Inputs Measuring range 0...10V
0...20mA
4...20mA
Load resistance
(0/4...20mA)
Max. 300 Ω
Outputs Signal range 0...10V
0...20mA
4...20mA
Load resistance
(0/4...20mA)
Max. 500Ω
Resistor contact series Maximum resistance 100Ω...10kΩ,
max.35 tap positions
Table136: Technical data for the AIO2 and AIO4 assemblies
Interface Pin Description
1 6 11 16 I OUT (+): Current output +
2 7 12 17 I/U IN (+) U OUT (+): Voltage input
+, current input +, voltage output +
3 8 13 18 I/U IN (-): Voltage input -, current in-
put -
4 9 14 19 I/U OUT (-): Voltage output -, current
output -
5 10 15 20 Not used
Table137: Analog inputs and outputs
1
3
2
4
5
11
13
12
14
15
6
8
7
9
10
16
18
17
19
20
RDY
AIO
+
-
24V DC
55 mm (2.17 in)
ca. 120 mm (4.72 in)
119 mm (4.69 in)
54 mm (2.12 in)
Figure219: AIO2 and AIO4 dimensions
