MR TAPCON - Uninstalling the MC 2-2;SW 3-3 Assembly

12 Uninstallation
Maschinenfabrik Reinhausen GmbH 2020296 3587317/21 ENTAPCON
®
4. Unplug the assembly.

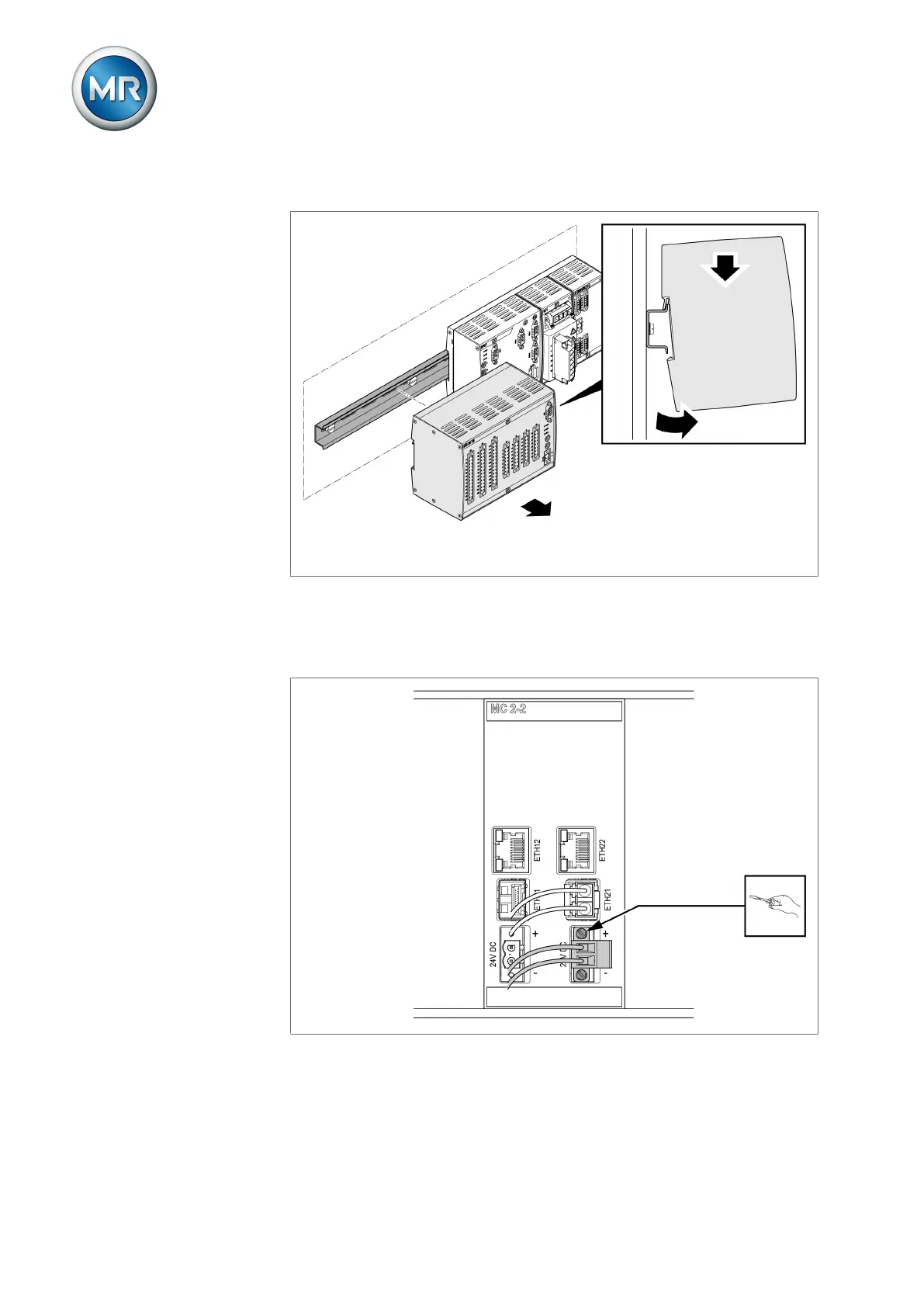

Figure205: Unplugging the DIO assembly
12.5 Uninstalling the MC 2-2/SW 3-3 assembly
1. Remove the 24V DC plug.
Figure206: Removing the plug (voltage supply)
