8.20.1 Displaying current measured values
The current measured values can be displayed on the measured value
screen. Note that the displayed measured values may differ from the raw
values displayed in the information display of the UI assembly. The mea-
sured values are prepared for the measured value display by the device as
follows:
▪ The tap-change operation set for the current transformer and voltage
transformer is taken into account, as is a corresponding phase displace-
ment.
▪ The UI assemblies use the generator sign convention. The device dis-
plays the measured values using the load sign convention.
You can change the measured value display to the generator sign conven-
tion by activating the Retrofit TAPCON® 2xx [►Section 8.18.3, Page 193]
parameter.
The following measured values are displayed:
▪ Voltage
▪ Current
▪ Power factor (cos ϕ)
▪ Frequency
▪ Reactive power
▪ Active power
▪ Apparent power

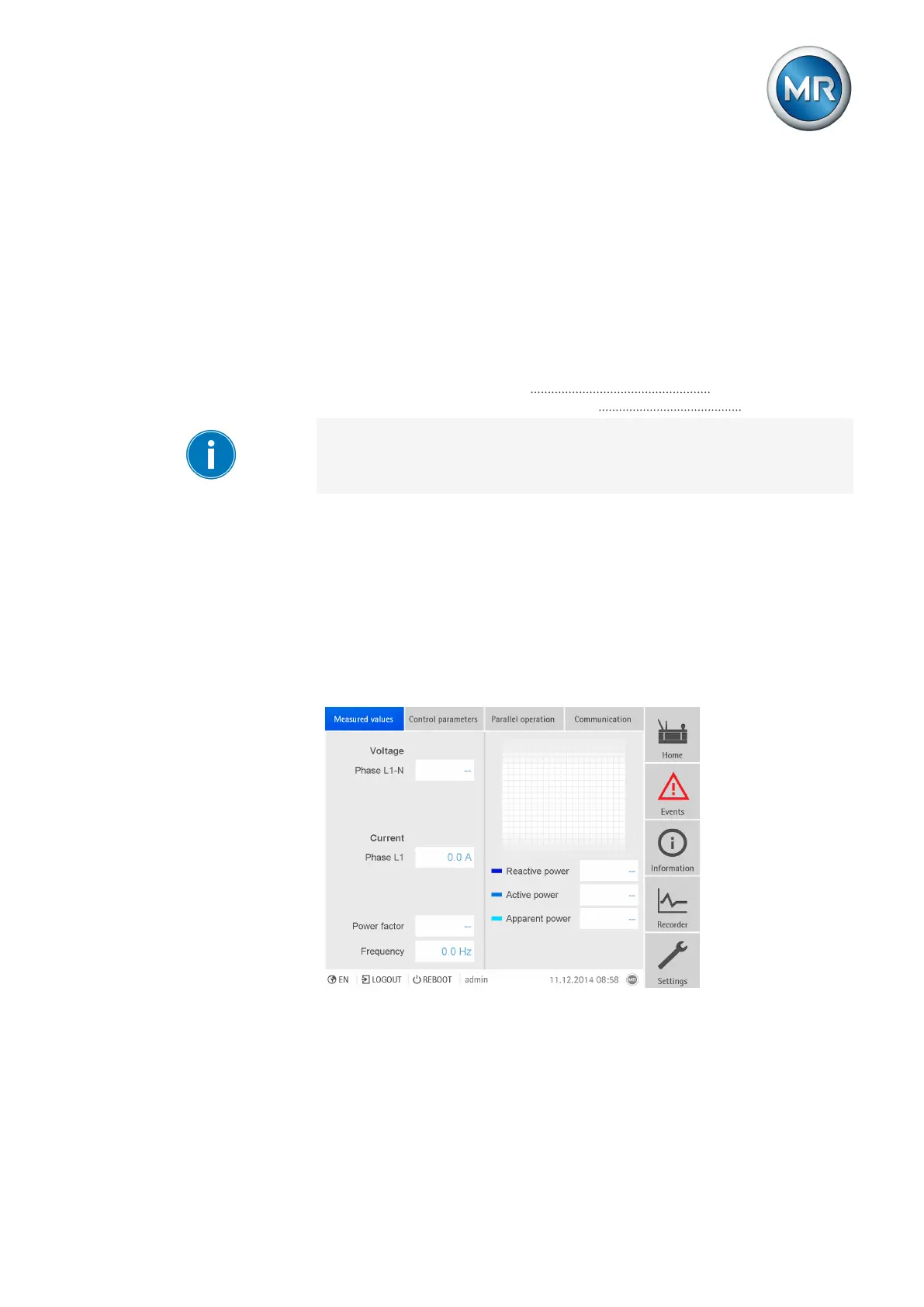

Figure149: Measured values
► Go to Information > Grid > Measured values.
Also refer to
2 TAPCON® 2xx retrofit [►193]
