MR TAPCON - Wiring the DIO Assembly

6 Mounting
Maschinenfabrik Reinhausen GmbH 2020 693587317/21 EN TAPCON
®
2. Insert and screw the plug into the respective slot in accordance with the
supplied connection diagram.

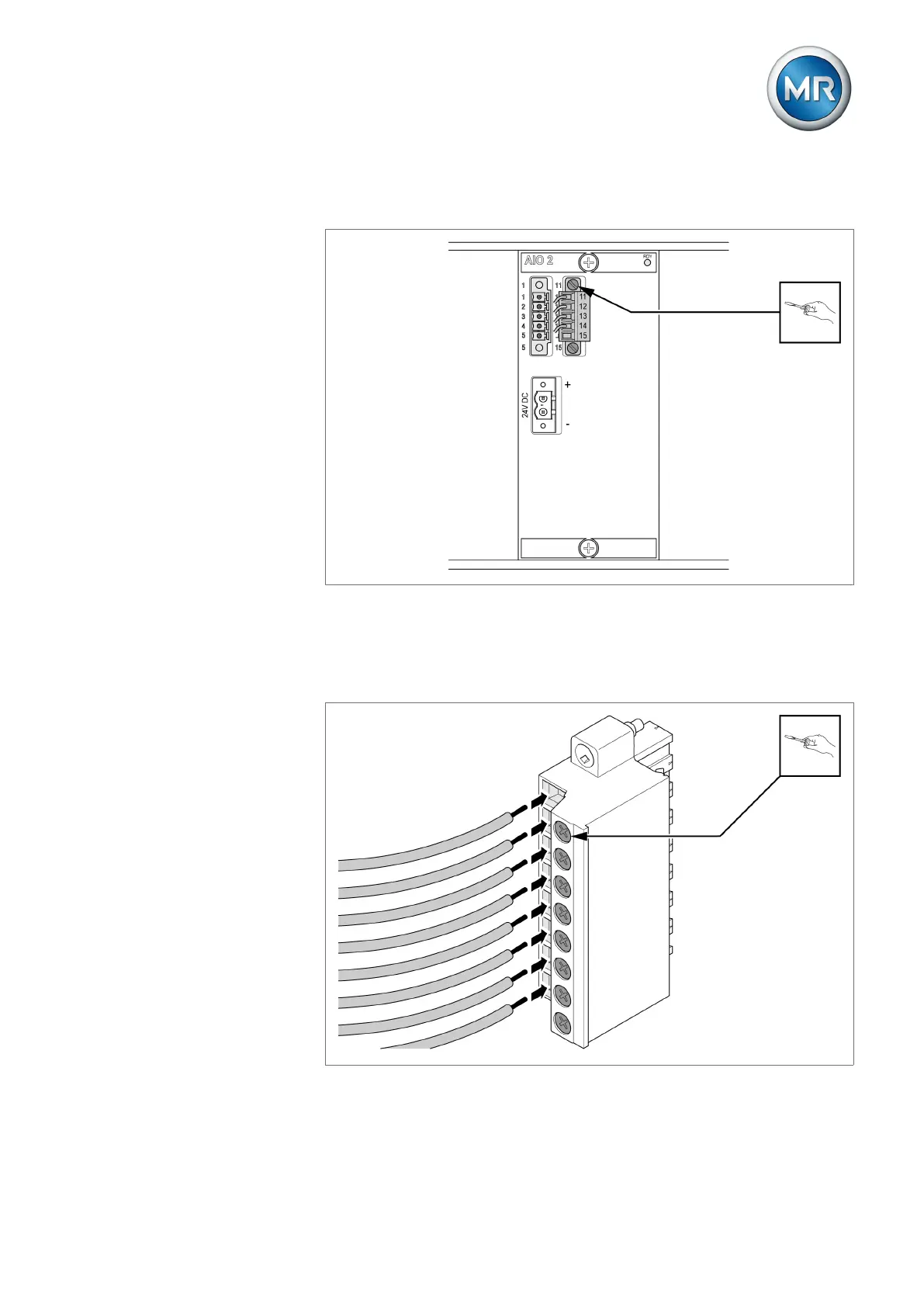

Figure56: Fastening the plug (analog inputs/outputs)
6.6.9 Wiring the DIO assembly
1. Guide the leads into the plug terminal in accordance with the supplied
connection diagram and fasten them using a screwdriver.
Figure57: Inserting the leads
