4 Product description
Maschinenfabrik Reinhausen GmbH 2020 273587317/21 EN TAPCON
®
Remote mode (REMOTE)
In remote mode, you can make entries and issue commands using digital in-
puts or the control system, depending on the setting of the Remote behavior
[►Page 90] parameter.
AVR AUTO AVR MANUAL
LOCAL REMOTE LOCAL REMOTE
Automatic regulation Yes Yes No No
Tap-change operation via
operating controls
No No Yes No
Tap-change operation via
inputs
No No No Yes
2)
Tap-change operation via
SCADA
1)
No No No Yes
2)
Value adjustment via
SCADA
1)
No Yes No Yes
2)
Table8: Overview of operating modes
1)
Optional when connecting TAPCON® to a control system (SCADA)
2)
You can use the Remote behavior [►Page 90] parameter to set the be-
havior
4.6 Design
Depending on the order, the device is either designed as a 19-inch plug-in
housing or supplied as individual components for assembly on a cap rail.
The individual device assemblies are described in the following section.

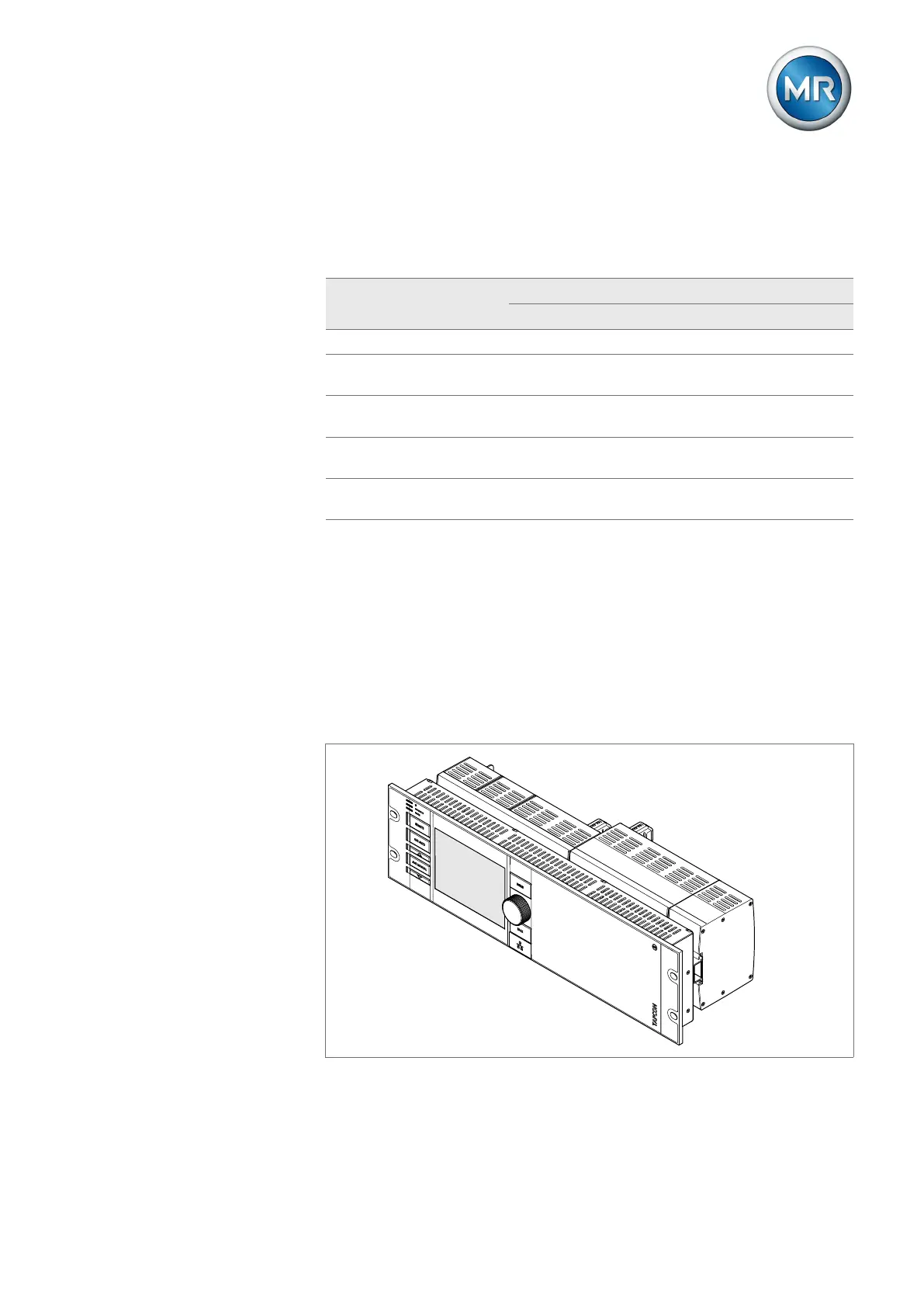

Figure4: 19-inch plug-in housing
