MR TAPCON - Wiring the AIO 2;AIO 4;AIO 8 Assembly

6 Mounting
Maschinenfabrik Reinhausen GmbH 2020 653587317/21 EN TAPCON
®
2. Insert the plugs into the respective slots and engage the plug.

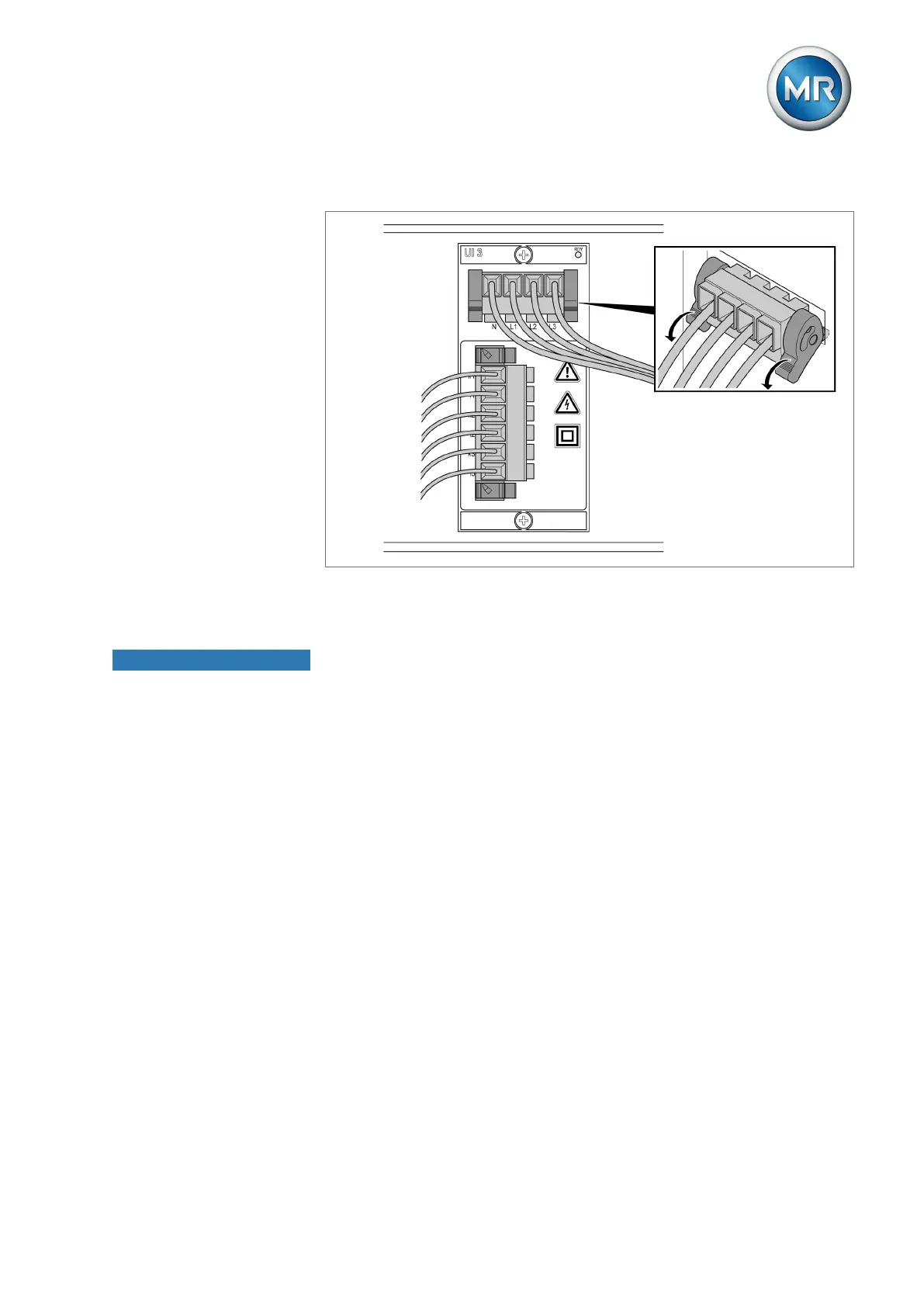

Figure50: Engaging the plug
6.6.8 Wiring the AIO 2/AIO 4/AIO 8 assembly
NOTICE
Damage to the device and sensors!
Incorrectly connected and configured analog inputs/outputs may result in
damage to the device and sensor.
► Follow information about connecting analog sensors.
► Configure analog inputs and outputs according to the connected sensors.
