6 Mounting
Maschinenfabrik Reinhausen GmbH 202066 3587317/21 ENTAPCON
®
In order to correctly record the analog signals, you must place the cable
shielding on the grounding bar. The cable shielding should only be removed
just prior to connecting, to ensure that the section with unshielded cables is
kept as short as possible. The shielding must be connected with shielding
clips.
1
3
2
4
5
11
13
12
14
15
6
8
7
9
10
16
18
17
19
20
RDY
AIO 4
+
-
24V DC
11
12
13
14
15
16
17
18
20
19
1
2
3
4
5
6
7
8
9
10

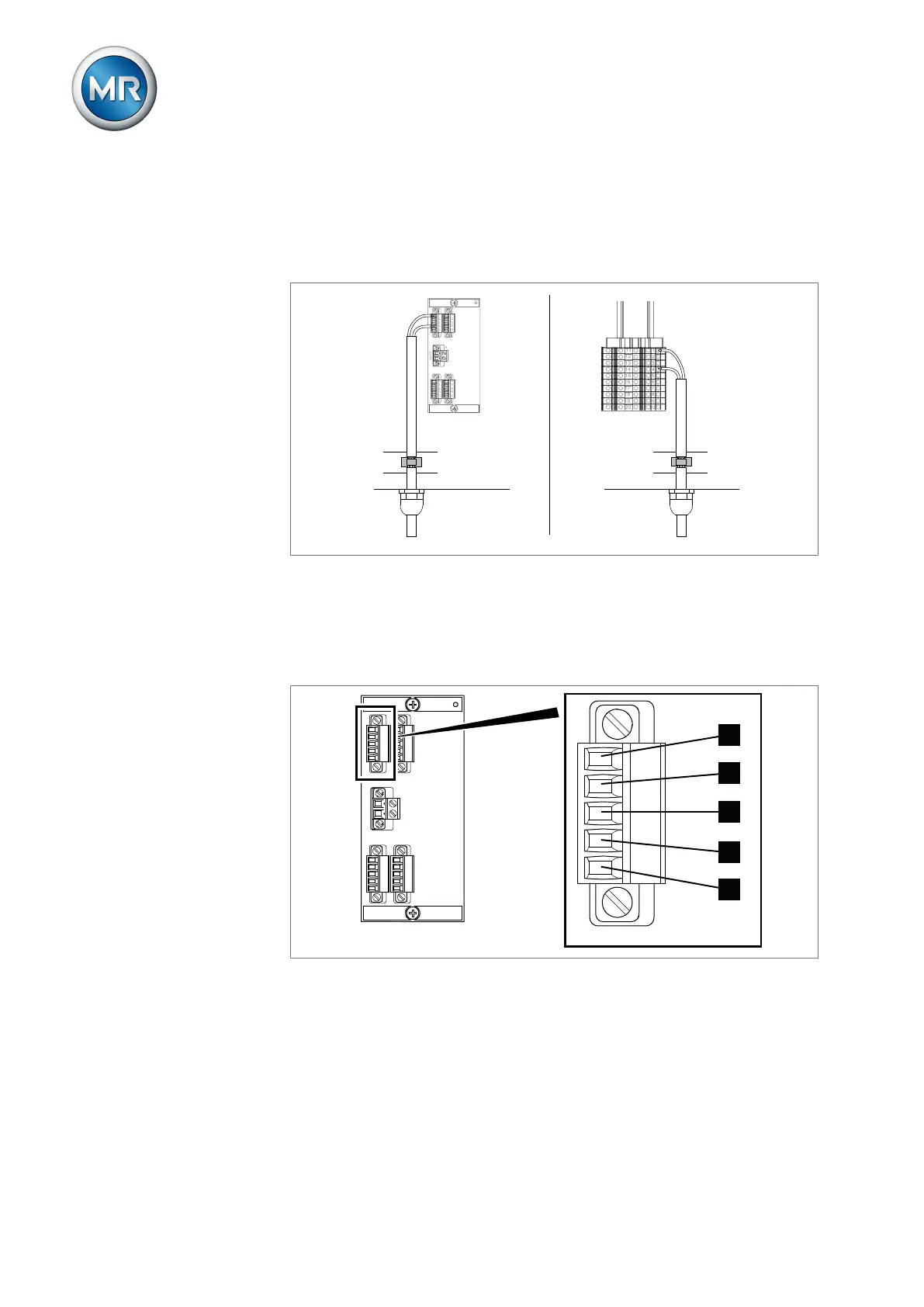

Figure51: Examples of supporting shielding on grounding bar (on left: Direct connection to AIO
assembly, on right: Connection using line-up terminal)
Plug assignment
The AIO 2, AIO 4 and AIO 8 assemblies have a separate plug connector for
each channel (input or output). The plugs are assigned as follows:
1
3
2
4
5
11
13
12
14
15
6
8
7
9
10
16
18
17
19
20
RDY
AIO
+
-
24V DC
1
3
2
4
5
1
2
3
4
5
Figure52: Plug assignment of AIO 2 and AIO 4 assemblies
