2. Select the desired circuit breaker.

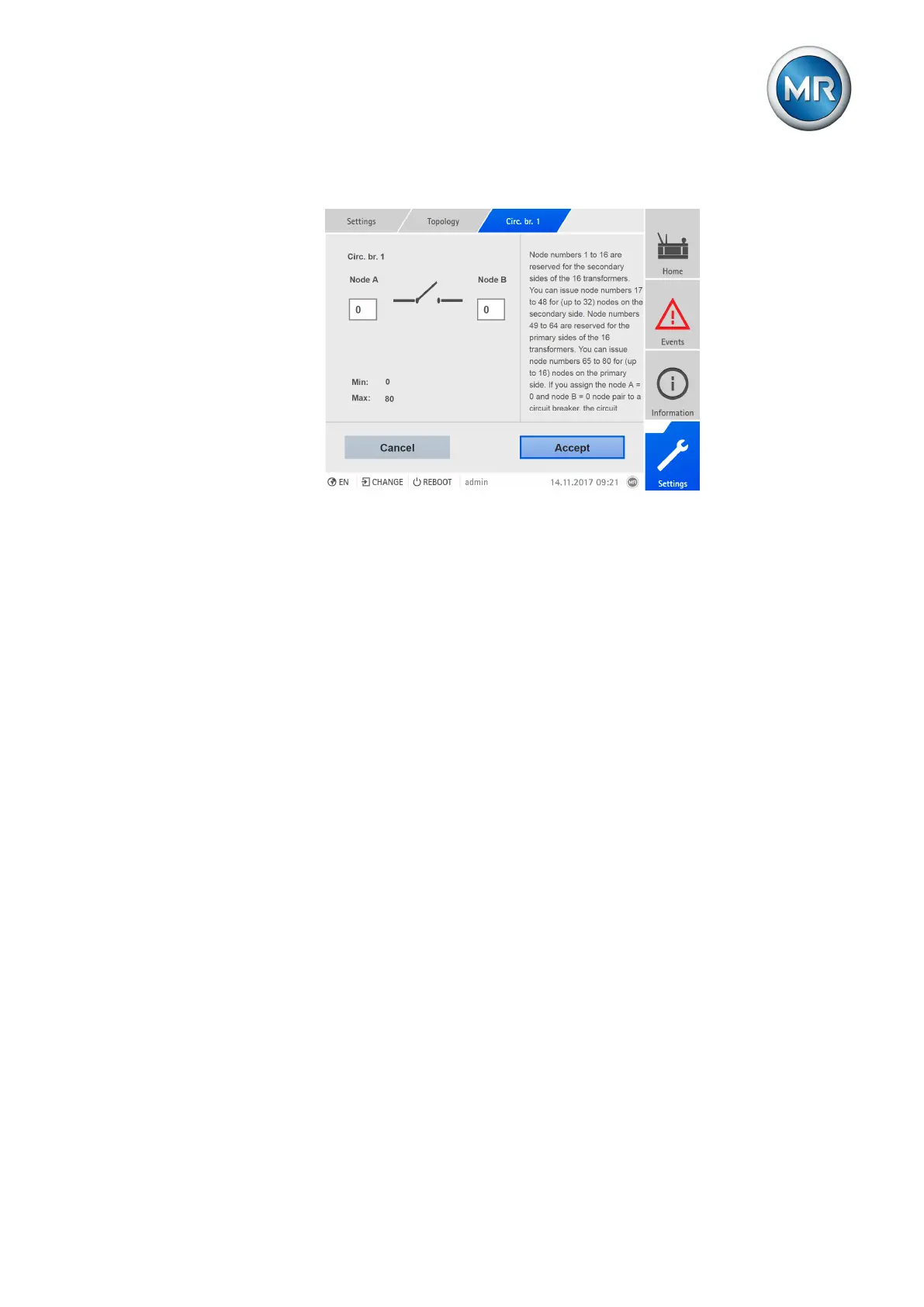

Figure137: Configuring the topology for circuit breaker 1
3. Enter the desired node numbers in the node A and node B fields.
4. Press the Accept button to save the modified parameter.
8.19 Monitoring functions
For various measured values, you can define limit values that are monitored
by the device.
8.19.1 Voltage monitoring
In order to monitor the transformer's current output voltage, you can set 4
limit values:
▪ Undervoltage U<<: Lower limit2
▪ Undervoltage U<: Lower limit1
▪ Overvoltage U>: Upper limit1
▪ Overvoltage U>>: Upper limit2
