15 Technical data
Maschinenfabrik Reinhausen GmbH 2020314 3587317/21 ENTAPCON
®

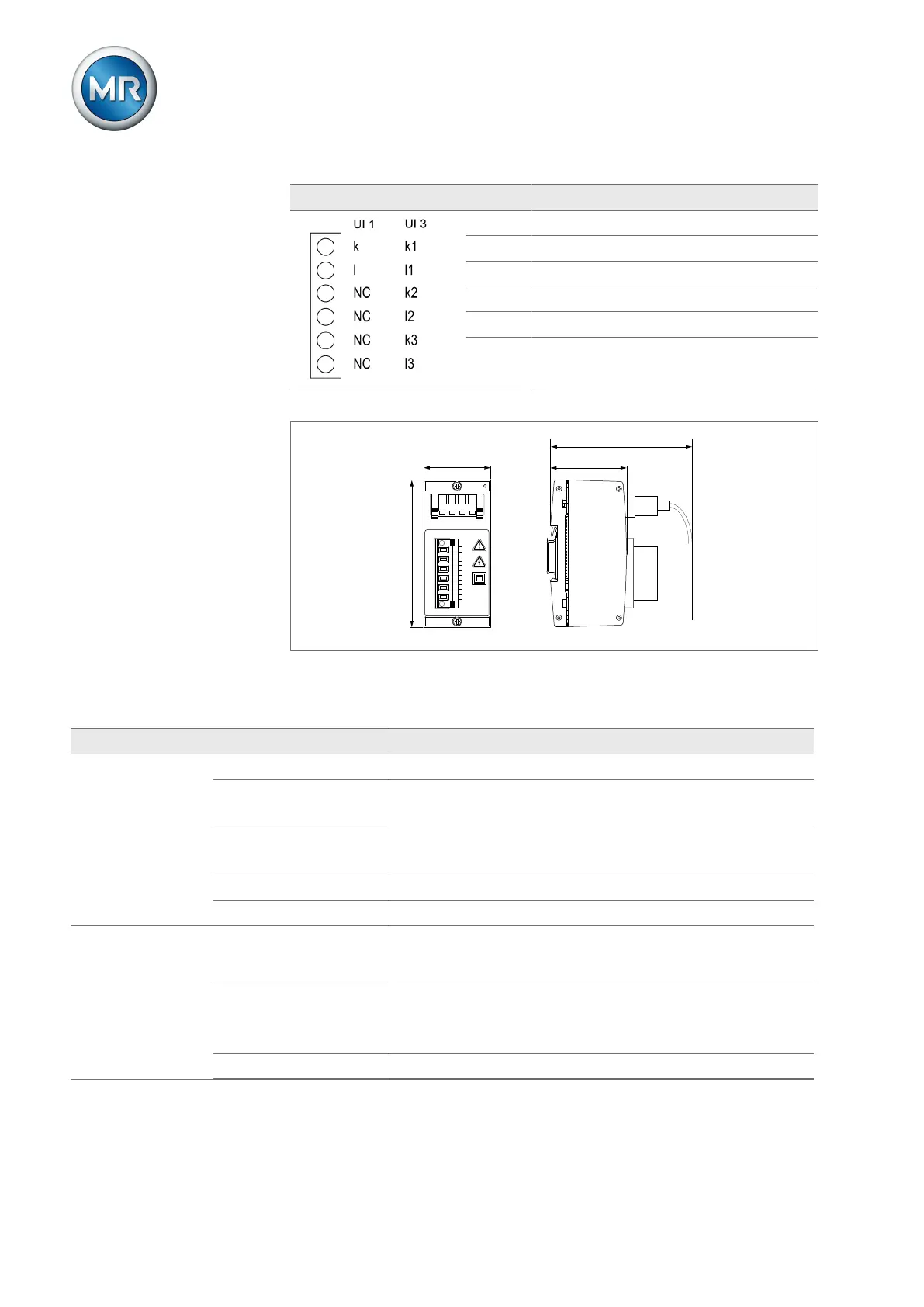

Interface Pin Description
k, k1 Current input for phase L (UI1) or L1 (UI3)
l, l1 Current output for phase L (UI1) or L1 (UI3)
k2 Current input for phase L2 (UI3 only)
l2 Current output for phase L2 (UI3 only)
k3 Current input for phase L3 (UI3 only)
l3 Current output for phase L3 (UI3 only)
Table132: Current measurement
k1
k2
k3
l1
l2
l3
RDY
N L1 L2 L3
UI 3
55 mm (2.17 in)
ca. 120 mm (4.72 in)
119 mm (4.69 in)
54 mm (2.12 in)
Figure215: UI1 und UI3 dimensions
15.4 Digital inputs and outputs
DIO 28-15 DIO 42-20 DIO 42-20 HL
Inputs (plug-based
electrical isolation)
Quantity 28 42
Logical0 0...10V AC (RMS)
0 to 10VDC
0...40V AC (RMS)
0 to 40VDC
Logical1 18...260V AC (RMS)
18 to 260VDC
170...260V AC (RMS)
170 to 260VDC
Input current Typ. 1.3mA (regardless of U)
Simultaneity factor At 70°C and U ≥ 230V: max. 50%
Outputs (floating re-
lay outputs)
Number (number of
change-over contacts in
parentheses)
15(9) 20(12)
Contact load capacity Min.: 5V, 10mA
Max. AC: 230VAC; 5A
Max. DC: See diagram
Simultaneity factor Up to 60°C: 100%, > 60°C: -5%/K
Table133: Technical data for the DIO 28-15 and DIO 42-20 assemblies
