15 Technical data
Maschinenfabrik Reinhausen GmbH 2020 3153587317/21 EN TAPCON
®
10
20
30
40
50
100
V
300
0.1 0.2 0.5 1 2 5 10 20A
U
I

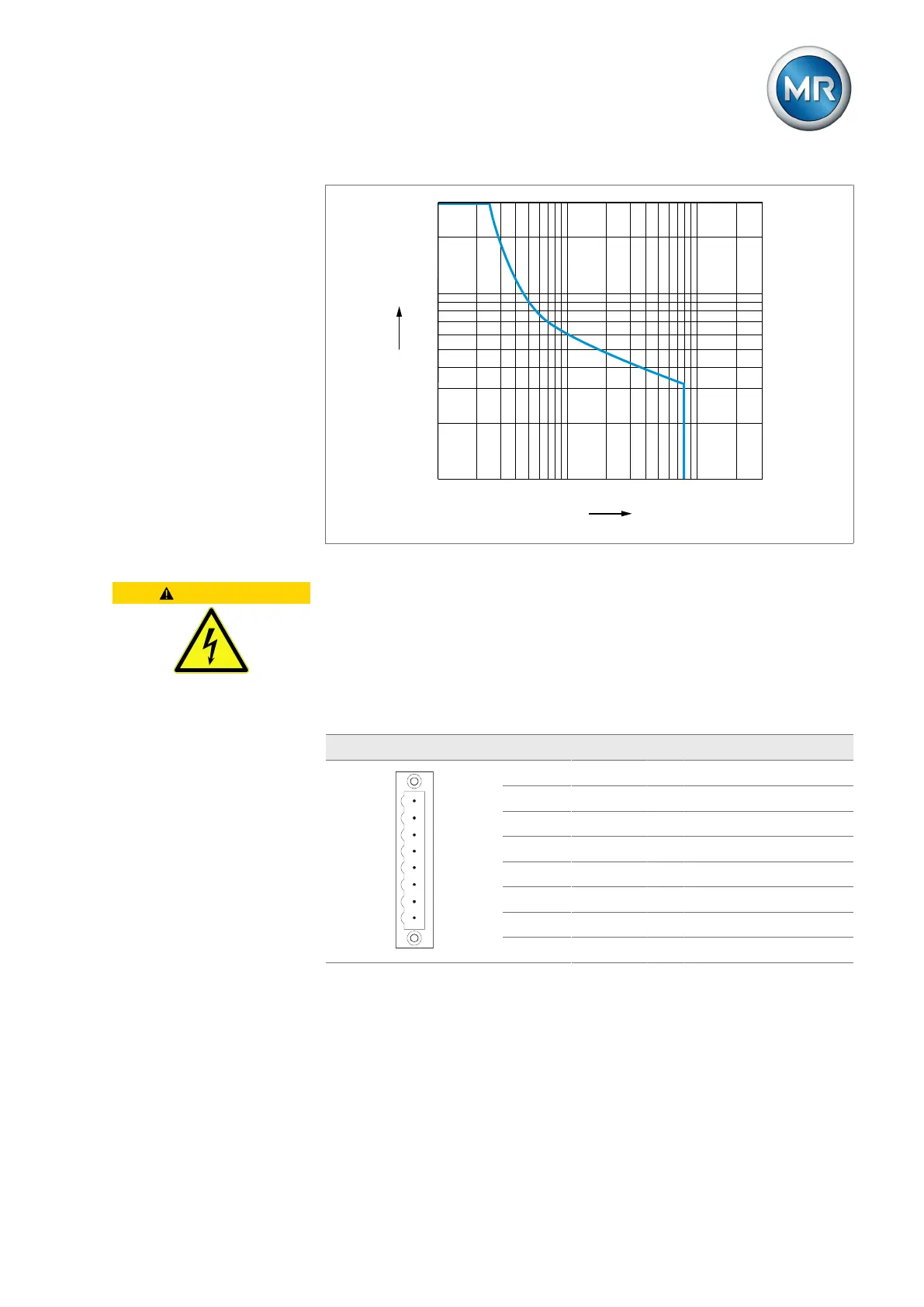

Figure216: Contact load capacity of digital outputs with resistive load
CAUTION
Electric shock!
The inputs of the DIO assembly have plug-based electrical isolation. A mix-
ture of voltage ranges (e.g. extra low voltage and low voltage) or various
phases within a plug can lower the protection against electric shock.
► Use the same voltage ranges within a plug.
► Use the same phase within a plug.
Interface Pin Description
1 9 17 25 33 41 Input
2 10 18 26 34 42 Input
3 11 19 27 35 43 Input
4 12 20 28 36 44 Input
5 13 21 29 37 45 Input
6 14 22 30 38 46 Input
7 15 23 31 39 47 Input
8 16 24 32 40 48 Common
Table134: Digital inputs
