MR TAPCON - Wiring the MC 2-2;SW3-3 Assembly

6 Mounting
Maschinenfabrik Reinhausen GmbH 202070 3587317/21 ENTAPCON
®
2. Insert and screw the plug into the respective slot in accordance with the
supplied connection diagram.

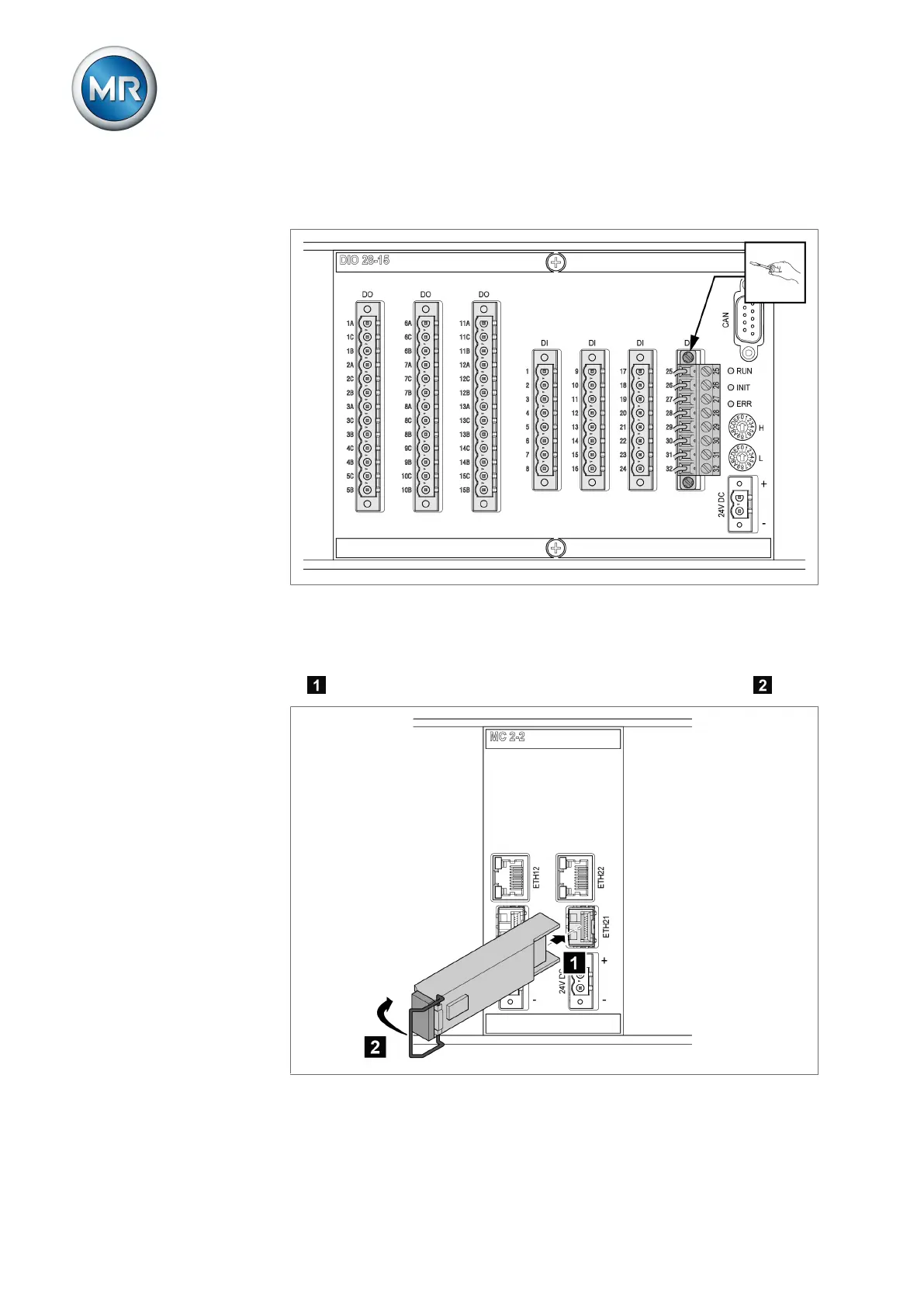

Figure58: Fastening the plug
6.6.10 Wiring the MC 2-2/SW3-3 assembly
1. Insert the supplied SFP module into the corresponding Ethernet interface
in accordance with the connection diagram and fold the clasp down.
Figure59: Engaging the SFP module
