MR TAPCON - Digital Tap Position Capture; Analog Tap Position Capture

8 Operation
Maschinenfabrik Reinhausen GmbH 2020 1773587317/21 EN TAPCON
®
– N/O contact series
– Decadal contact series
▪ Analog signal
– Injected current (0/4…20mA)
– Voltage (0…10V)
– Resistor contact series
8.17.1 Digital tap position capture
The tap position can optionally be transmitted from the motor-drive unit to
the device as a digital signal. No further settings are needed.
8.17.2 Analog tap position capture
8.17.2.1 Injected current (0/4…20 mA) or voltage (0...10 V)
For the analog tap position capture, you must set which tap positions corre-
spond to the minimum analog signal and maximum analog signal.
The device is configured at the factory according to the order. However,
should modifications be necessary, note the following sections.

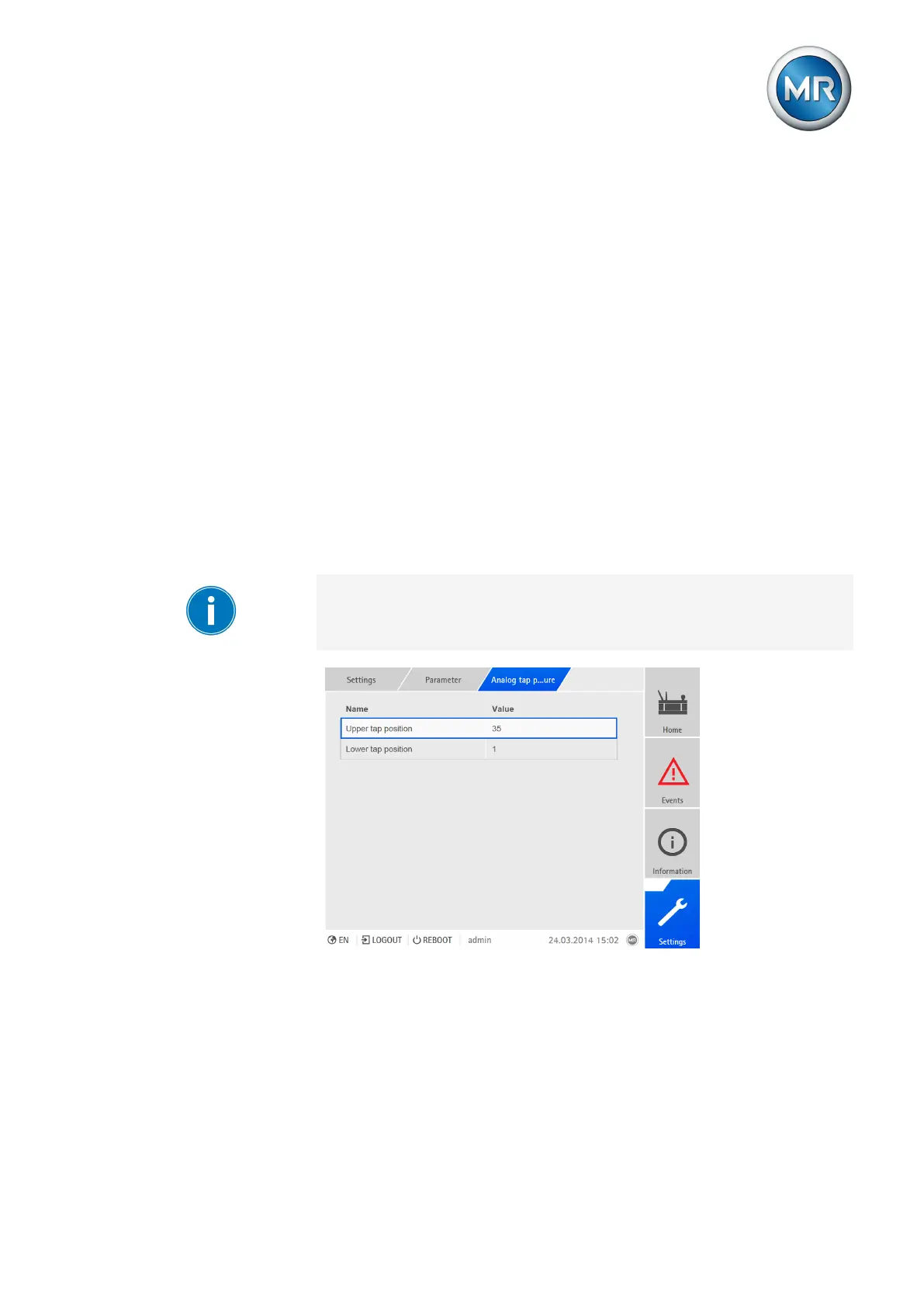

Figure122: Setting analog tap position capture
Pos. at max. analog signal
You can use this parameter to set the tap position of the on-load tap-
changer corresponding to the maximum analog signal (e.g. 20 mA for 4...20
mA signal).
