15.1 Display elements
Display 5.7" LCD, Backlight LED
VGA (640 x 480 pixels)
262,000 colors (18-bit)
LEDs 8 LEDs for operation display and messages
15.2 Voltage supply
OT1205 (MR/N)
Permissible voltage range 85 to 265VAC/VDC
V
N
: 100 to 240VAC
V
N
: 100 to 220VDC
Permissible frequency range 50/60Hz
Power consumption 55W
Internal fuse (2x) 250V; 2A; 5 x 20mm, "delayed-action"
characteristic
Table128: Standard design with wide range power supply

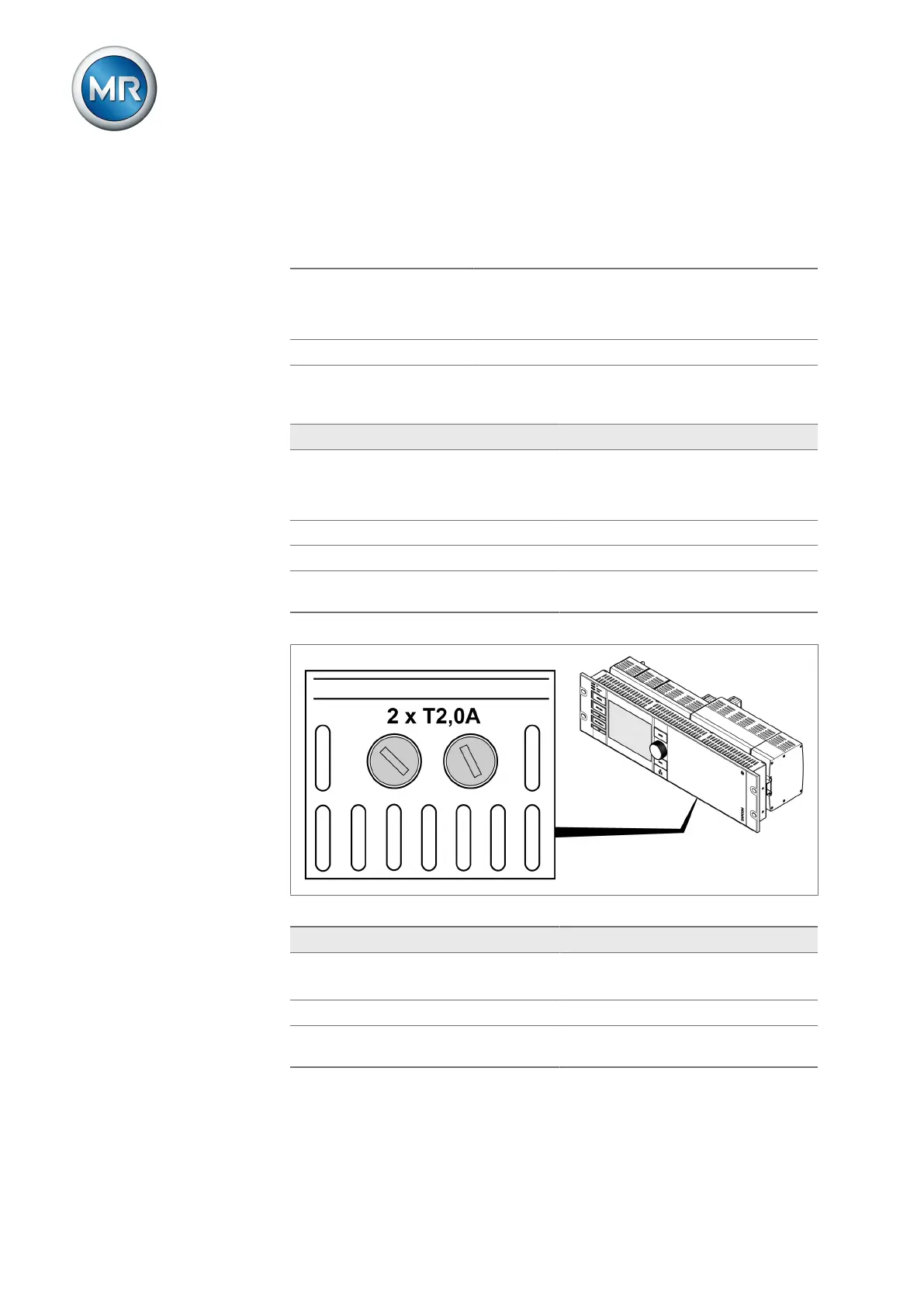

Figure213: Internal fuse (2x) of wide range power supply in assembly OT1205
OT1205 (MR/48)
Permissible voltage range 20 to 70VDC
V
N
: 48VDC
Power consumption 55W
Internal fuse 250 V; 5A; 5 x 20mm, "fast-acting"
characteristics
Table129: Special version with DC voltage power supply
