6 Mounting
Maschinenfabrik Reinhausen GmbH 2020 613587317/21 EN TAPCON
®
6.6.4 Mounting terminating resistor of CAN bus
If you want to operate the device in parallel operation, you need to mount a
120 Ω terminating resistor at both ends of the CAN bus. Use the plug con-
nector with terminating resistor provided as an option.

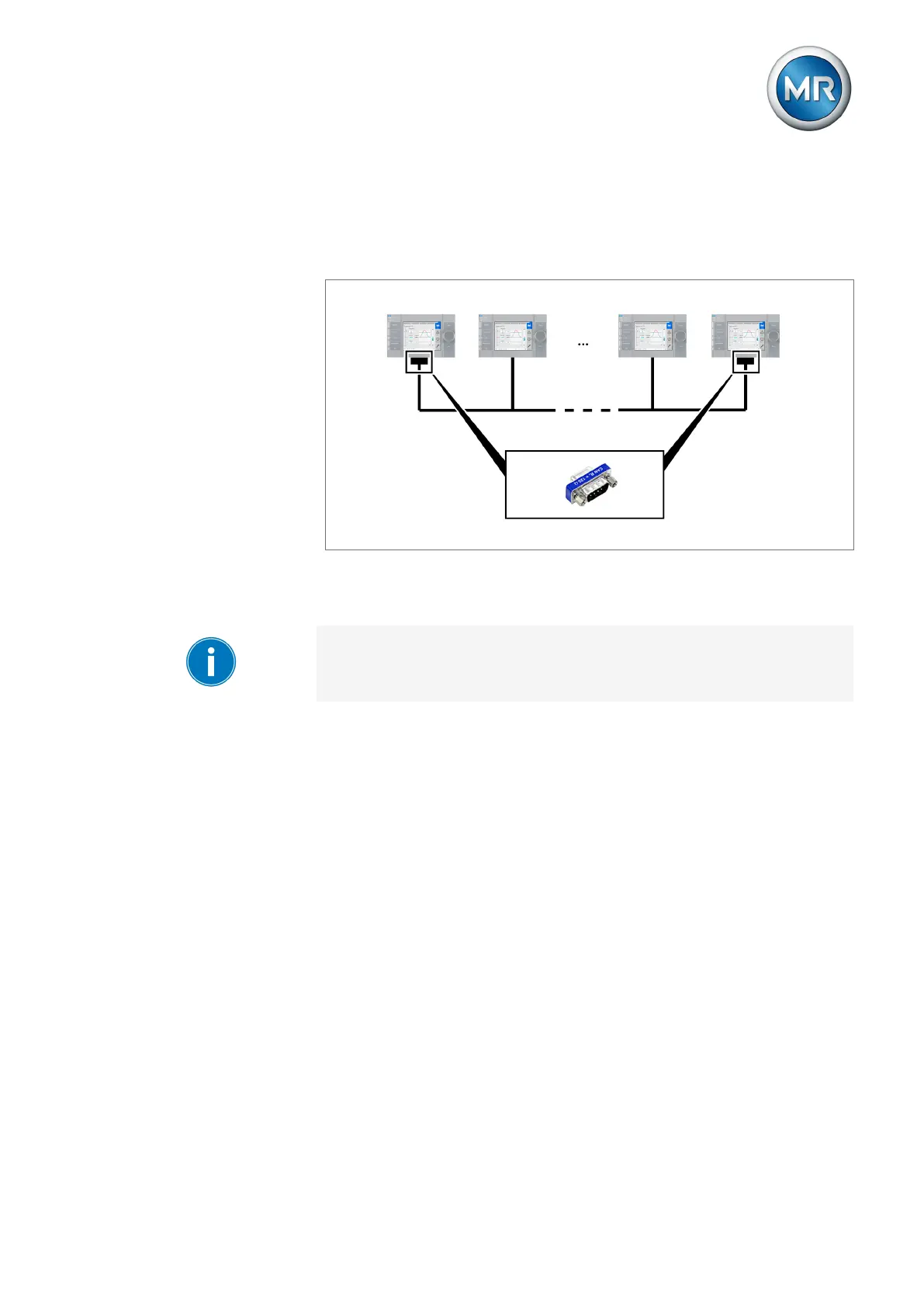

Figure44: Terminating resistor of CAN bus
6.6.5 Connecting cables to the system periphery
To obtain a better overview when connecting cables, only use as many
leads as necessary.
To connect cables to the system periphery, proceed as follows:
ü Use only the specified cables for wiring. Note the cable recommendation.
► Connect the lines to be wired to the device to the system periphery as
shown in the connection diagrams supplied.
