MR TAPCON - CPU (Central Processing Unit) I

15 Technical data
Maschinenfabrik Reinhausen GmbH 2020318 3587317/21 ENTAPCON
®

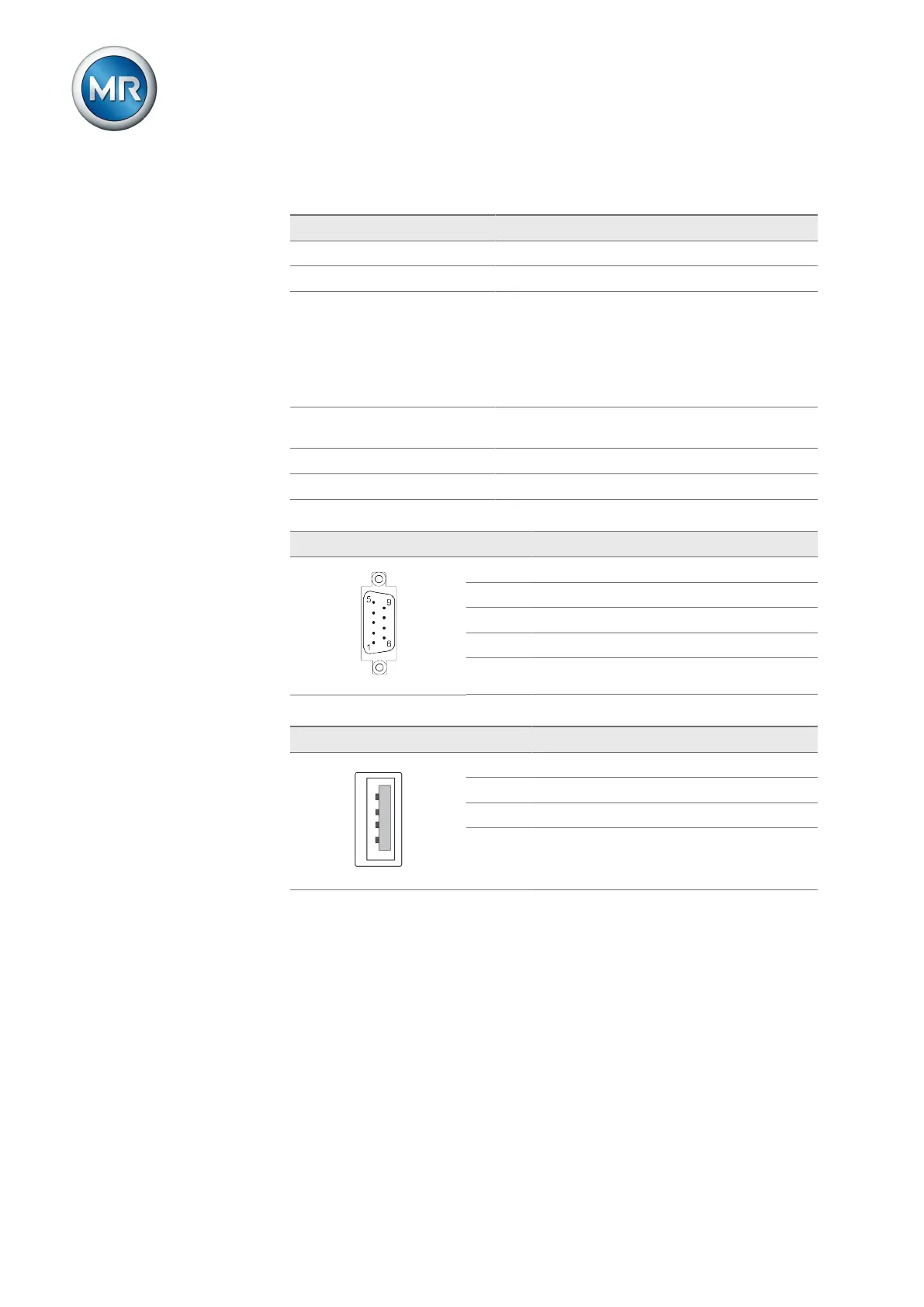

15.6 CPU (central processing unit) I
CPUI
Processor 266MHz
RAM 256MB
Interfaces 1x serial RS232/485 (electrically isolated)
3x Ethernet 10/100Mbps
1x USB2.0
1x CAN (electrically isolated)
1x CAN
NVRAM (SRAM with battery
backup)
256kB
Application memory 1GB
Power supply +24V DC (18...36V DC)
Table138: Technical data for the CPUI assembly
Interface Pin Description
2 RXD (RS232)
3 TXD (RS232)
5 GND (RS232, RS485)
6 RXD+/TXD+ (RS485)
9 RXD-/TXD- (RS485)
Table139: COM2 (RS232, RS485)
Interface Pin Description
1 VCC
2 D-
3 D+
4 GND
Table140: USB 2.0
