8.27.4 Topology
Under Topology, you can display which transformers are in parallel opera-
tion and which parallel operation group the transformers belong to. The fol-
lowing representation forms are possible:

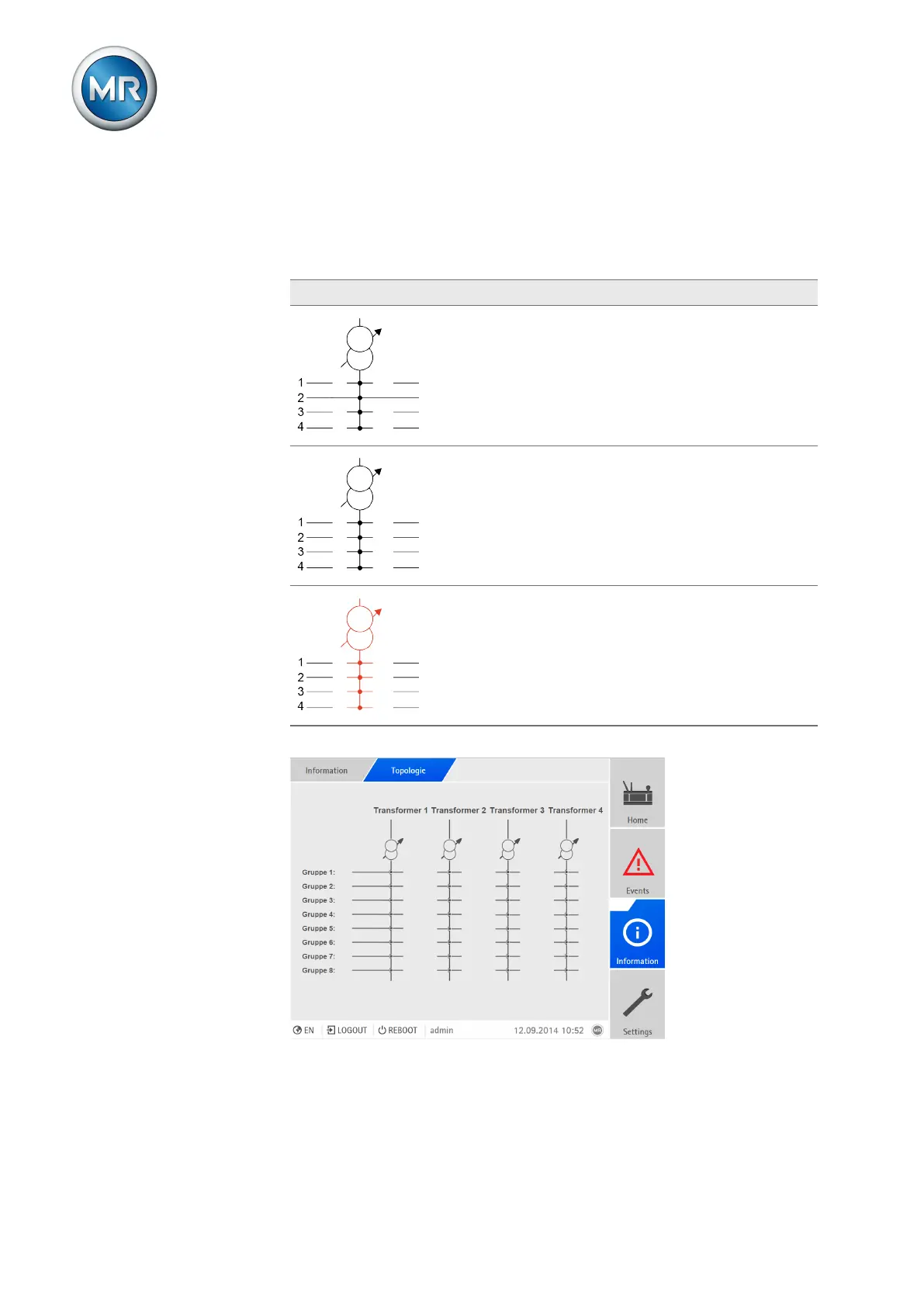

Symbol Description
Transformer is in parallel operation and belongs to parallel
operation group 2.
Transformer is in independent mode.
The CAN bus connection to the TAPCON® of this trans-
former is faulty.
Table89: Representation forms (examples)
Figure178: Topology
► Go to Information > On-load tap-changer regulator > Topology.
