8 Operation
Maschinenfabrik Reinhausen GmbH 2020200 3587317/21 ENTAPCON
®
If the measured value is higher than the upper limit (> or >>) or lower than
the lower limit (< or <<), the device transmits an event message.
U>>
U<
U
t
U>
U<<
t
V
t
E
H

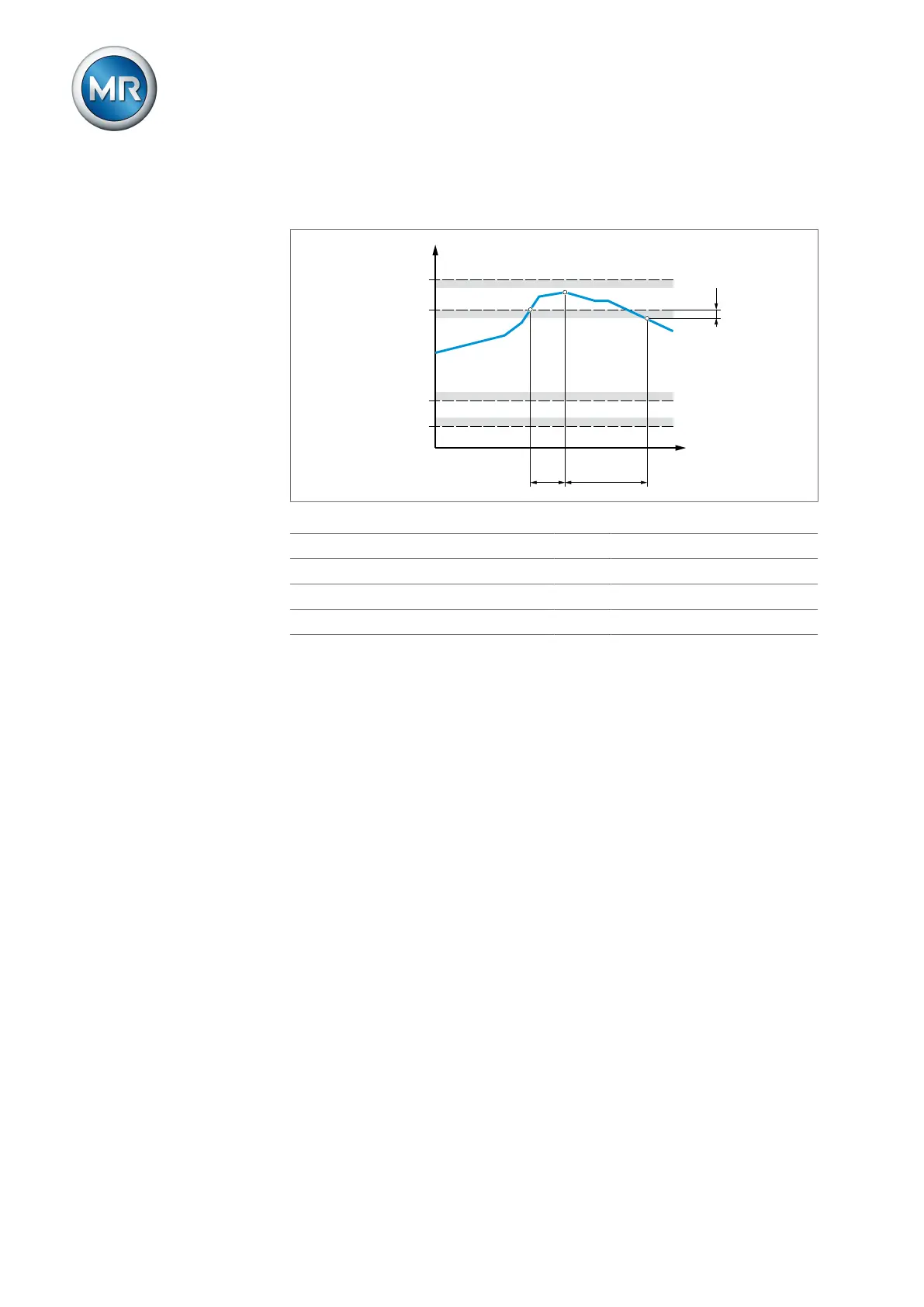

Figure138: Example of voltage monitoring with the limit value Overvoltage U> being exceeded
U>> Overvoltage U>> U> Overvoltage U>
U< Undervoltage U< U<< Undervoltage U<<
t
V
Delay time t
E
Event duration
H Hysteresis
You can set the following parameters for each limit value:
▪ Relative/absolute limit value
▪ Limit value [V]: Absolute limit value
▪ Limit value [%]: Limit value relative to the desired voltage value (only for
devices with voltage regulation)
▪ Hysteresis limit value
▪ Delay time limit value
▪ Behavior limit value (only for devices with voltage regulation)
