To wire the UI assembly, proceed as follows:
1. Guide the cables into the corresponding plug terminals and fasten them
using a screwdriver.

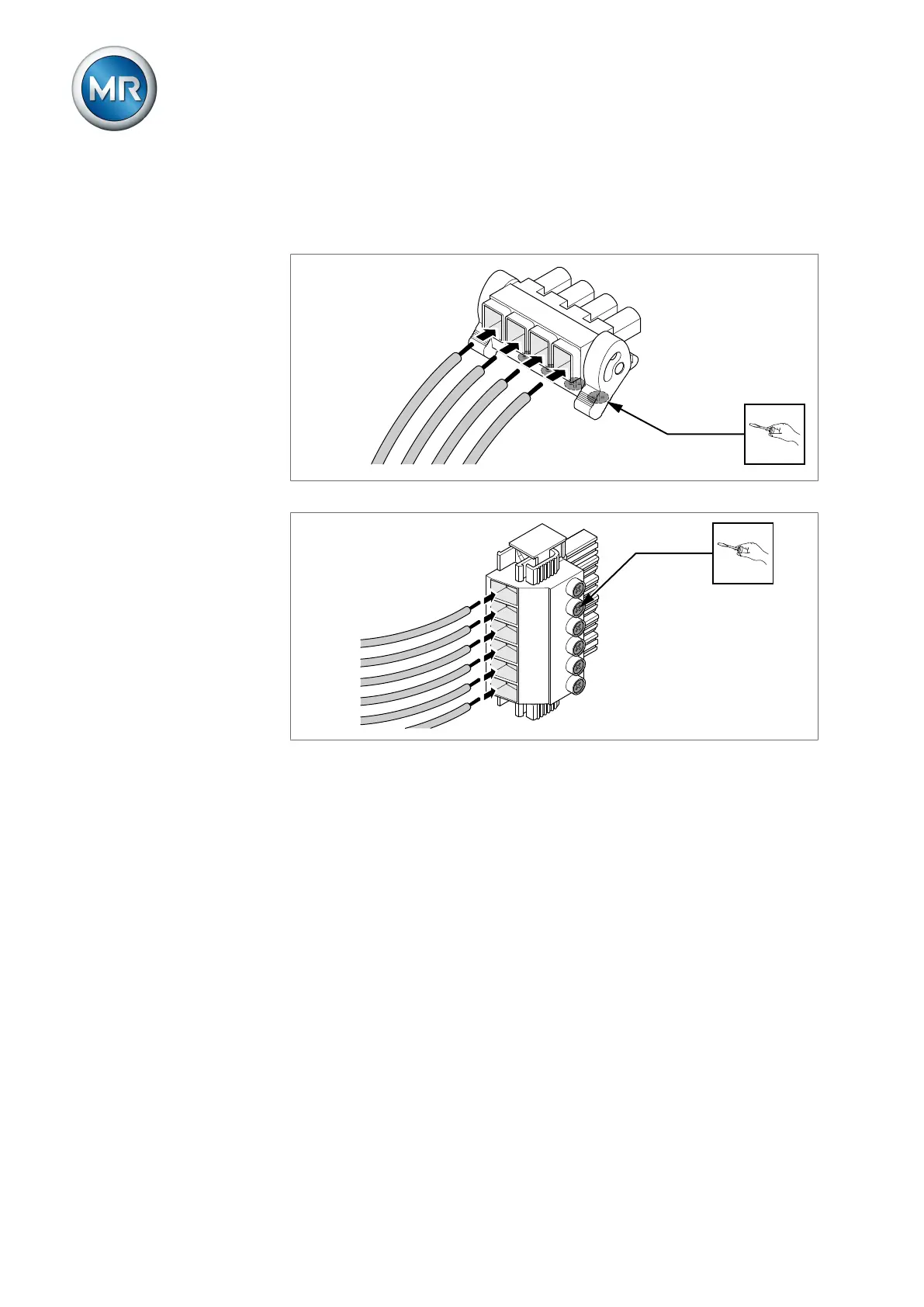

Figure48: Example: Plug for voltage measurement
Figure49: Example: Plug for current measurement
