6 Mounting
Maschinenfabrik Reinhausen GmbH 202068 3587317/21 ENTAPCON
®
I OUT (+)
I/U IN (+)
U OUT (+)
I/U IN (-)
I/U OUT (+)
1
2
3
4
5
---
2-wire
I OUT (+)
I/U IN (+)
U OUT (+)
I/U IN (-)
I/U OUT (+)
1
2
3
4
5
---
3-wire
I OUT (+)
I/U IN (+)
U OUT (+)
I/U IN (-)
I/U OUT (+)
1
2
3
4
5
---
4-wire
PT100/PT1000

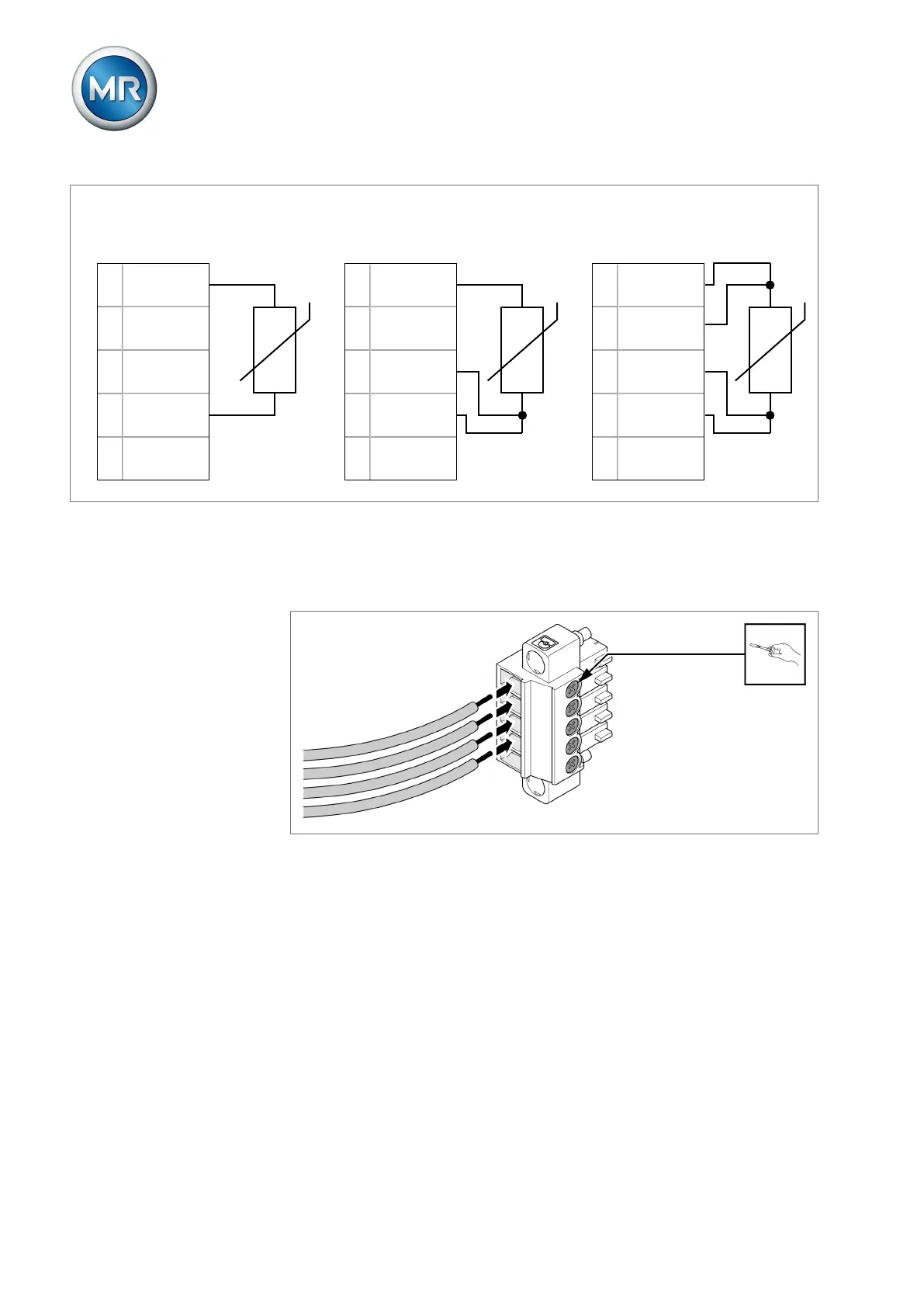

Figure54: Connection example for a PT100/PT1000 sensor
Wiring analog inputs/outputs
1. Guide the leads into the plug terminal and fasten them using a screw-
driver.
Figure55: Inserting the leads into the plug connector
