Continuous pulse Selecting the "Continuous pulse" option causes the device to issue the
switching pulse in AVRAuto operating mode until the measured value is
back within the bandwidth. In AVRManual operating mode, the device is-
sues the switching pulse for as long as you press the or key.
If the device is operated as a follower in parallel operation in this case, then
the TAPCON® will issue the switching pulse until one of the following re-
quirements has been met:
▪ The set motor runtime has been reached
▪ The Motor running signal switches from state 1 to 0
▪ The tap position required by the master has been reached
A pause is enforced after every switching pulse before another switching
pulse is issued.
Time-controlled switching
pulse
Selecting the "Time-controlled switching pulse" option causes the device to
issue the switching pulse for a set duration. A pause is enforced after ev-
ery switching pulse before another switching pulse is issued.
If you use a motor-drive unit from Maschinenfabrik Reinhausen GmbH, you
need to select the "Time-controlled switching pulse" option.
V
s
1 2 1

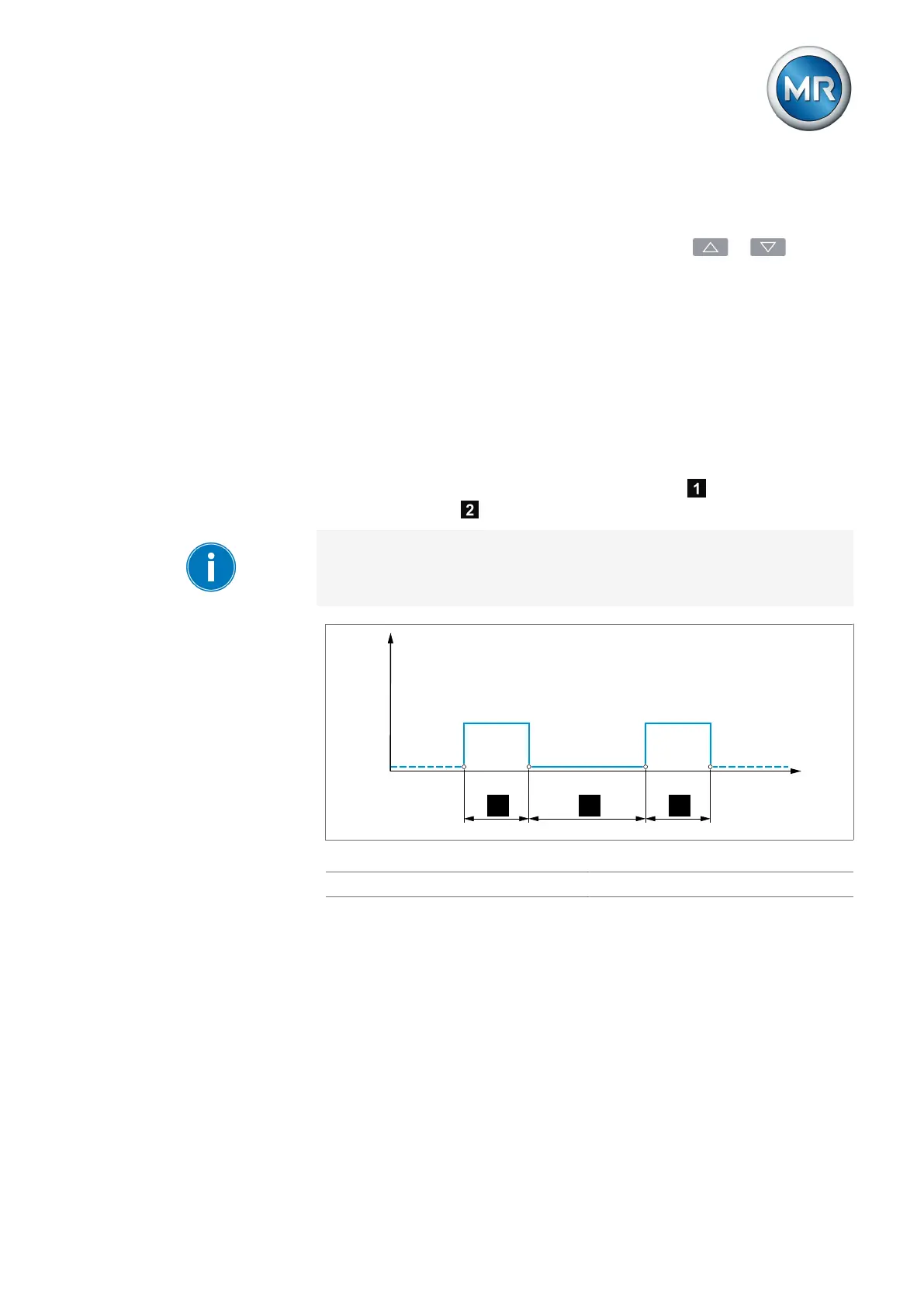

Figure101: Switching pulse time and switching pulse pause
1 Switching pulse time 2 Switching pulse pause
Switching pulse time
You can use this parameter to set the maximum duration of the switching
pulse. The switching pulse resets after the switching pulse time has elapsed
or if the device receives the Motor running signal beforehand or the tap posi-
tion is changed.
Switching pulse pause
You can use this parameter to set the switching pulse pause between 2
switching pulses. The device can only issue another switching pulse once
the switching pulse pause has elapsed.
