8 Operation
Maschinenfabrik Reinhausen GmbH 2020192 3587317/21 ENTAPCON
®
The following tap stagger settings are possible:
TSL Master
1
Follower
1
-1 -1 0
1 +1 0
-2 -1 +1
2 +1 -1
-3 -2 +1
3 +2 -1
-4 -2 +2
4 +2 -2
... ... ...
-32 -16 +16
32 +16 -16
Table66: Tap stagger setting
1
Tap position difference in relation to the tap position of the entire system
Selecting a tap stagger setting (optional)
This parameter allows you to select the tap stagger setting that the device is
to use for control. The currently selected tap stagger setting is displayed in
the voltage regulation overview screen.

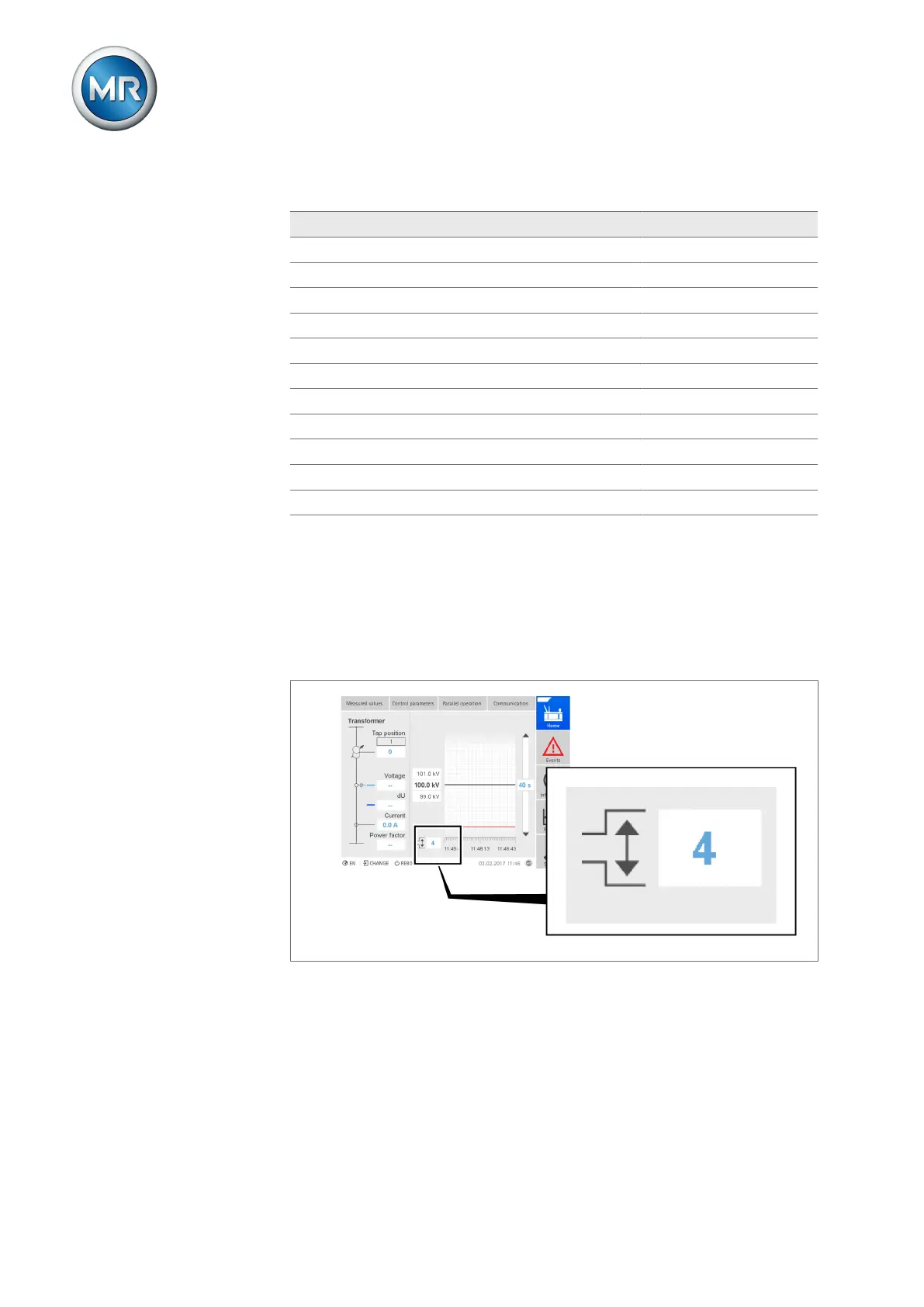

Figure131: Current tap stagger setting
