3 IT security
Maschinenfabrik Reinhausen GmbH 202020 3587317/21 ENTAPCON
®
Interfaces
The device uses the following interfaces for communication:

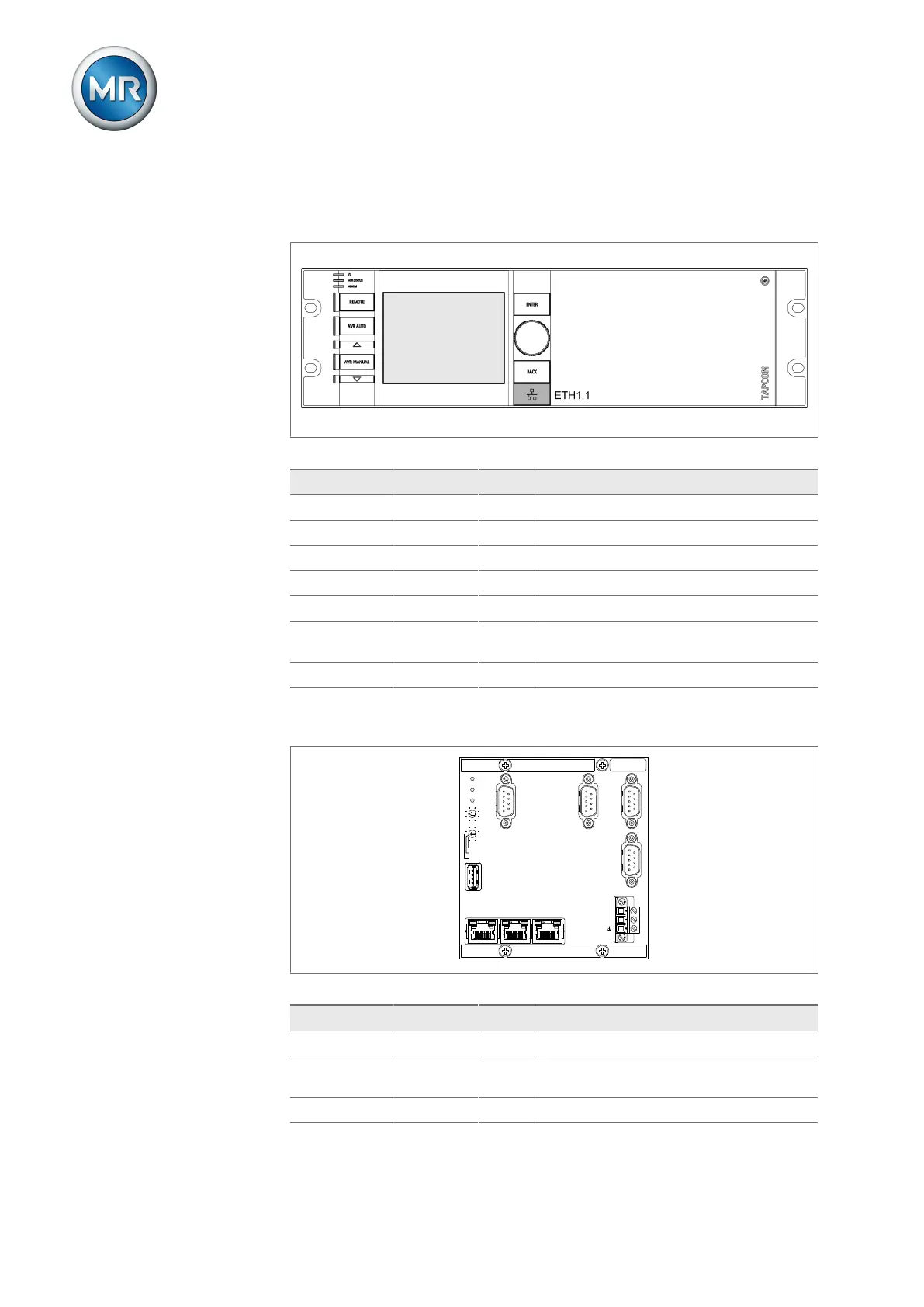

Figure1: ETH1.1 interface on the OT1205 assembly
Interface Protocol Port Description
ETH1.1 TCP 21 FTP service access
1)
ETH1.1 TCP 80 Web visualization
1)
ETH1.1 TCP 443 SSL-protected web visualization
ETH1.1 TCP 990 SSL-protected FTP service access
ETH1.1 TCP 8080 Web visualization (alternative port)
1)
ETH1.1 TCP 8081 SSL-protected web visualization (alternative
port)
ETH1.1 UDP 67 DHCP server
Table5: Interfaces and open ports of the OT1205 assembly
1)
Port is closed if you activate the device's SSL encryption.
CPU
CAN 1
1
9
CAN 2
1
9
COM 1
1
9
COM 2
1
9
-
+
24V DC
RUN
INIT
ERR
USB2.0
4
62
A
8
C
H
TEST
PROG
RUN
4
62
AE
0 8
C
L
ETH 1 ETH 2.1 ETH 2.2
Figure2: CPU assembly interfaces
Interface Protocol Port Description
CAN1 - - DIO assembly connection
CAN2 - - Communication with other ISM® devices
(e.g. parallel operation)
COM1 - - Internal system interface
