8 Operation
Maschinenfabrik Reinhausen GmbH 2020236 3587317/21 ENTAPCON
®
Property Options
Configuration DI: High active or low active
DO: N/O contact (NO), N/C contact (NC); Note: If the device is dis-
connected or in the event of an error, the digital outputs are always
open (no bi-stable relay).
Assembly/
channel
Channel of the DIO assembly to which the function is linked. Func-
tions that are not linked with a channel are identified with "-". Note
the connection diagram supplied.
Table83: Configuration of the digital inputs and outputs

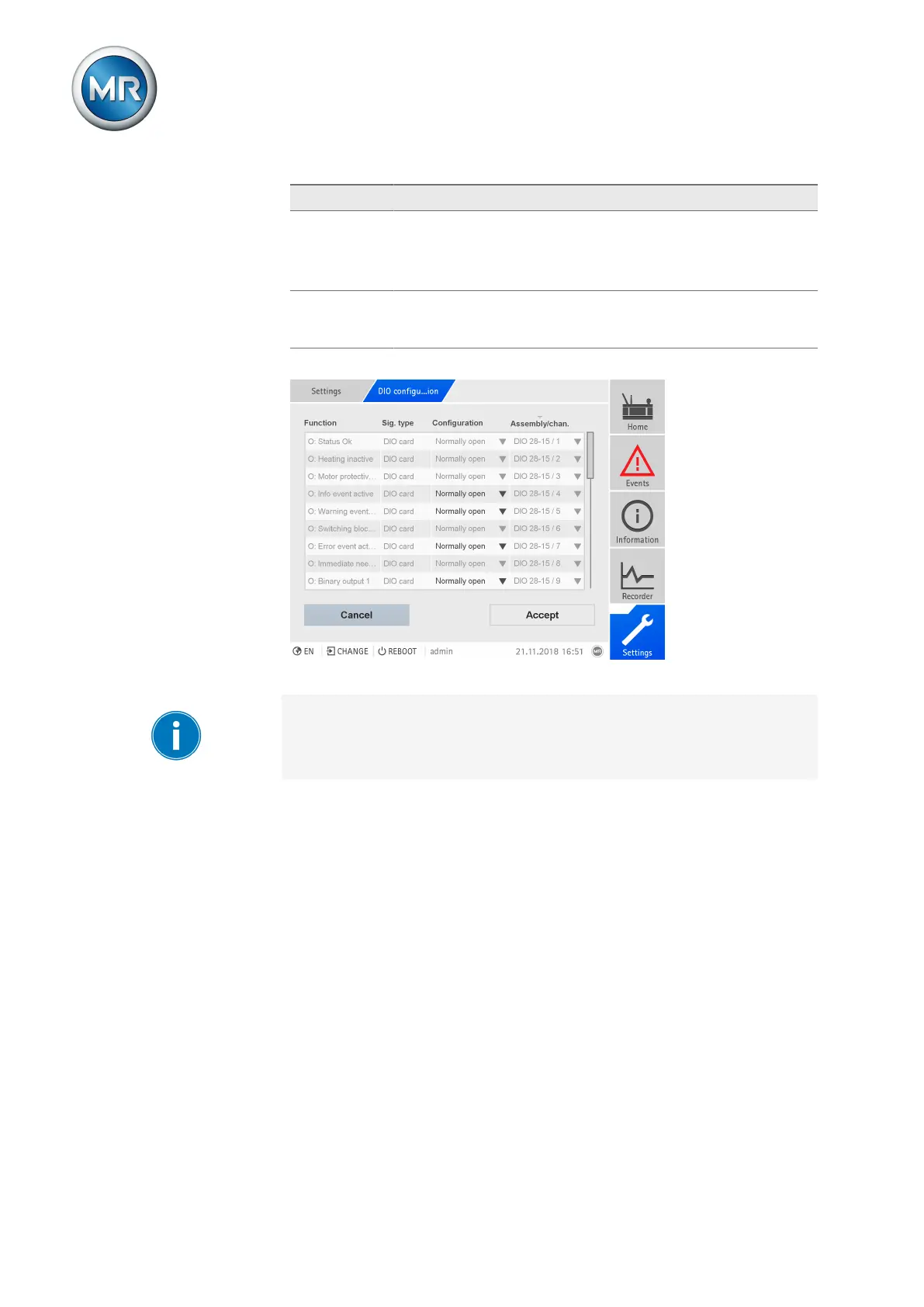

Figure167: Configuring digital inputs and outputs
The operation described below is only possible if you access the visualiza-
tion using a computer. You can only change the configuration of the digital
inputs and outputs if you have a Parameter Configurator or Administrator
role.
When in delivery status, you can log in as the administrator as follows:
▪ User name: admin
▪ Password: admin
Creating a backup You need to create a backup to be able to reset the system in the event that
any incorrect configuration settings are made. To do so, proceed as follows:
1. Go to Settings > Export.
2. Go to the option Settings to export a backup copy of the current settings.
3. Select the desired Interface (USB or PC).
4. Press the Export button to start the export.
Configuring DIO To configure the device's digital inputs and outputs, proceed as follows:
1. Go to menu item Settings > DIO configuration.
2. Where necessary, select the buttons ▲ or ▼ to sort the properties in a
column alphabetically.
3. Configure the properties as desired.
