8 Operation
Maschinenfabrik Reinhausen GmbH 2020 2593587317/21 EN TAPCON
®
8.30.1.3.7 Current impulse relay
Description RS, current impulse relay
Inputs Trigger (BOOL)
Set (BOOL)
Reset (BOOL)
Outputs Output (BOOL)
Parameter None
Function If the Reset input is TRUE, Output forcibly becomes
FALSE.
If the Reset input is FALSE and the Set input is TRUE,
Output forcibly becomes TRUE.
If the Reset and Set inputs are FALSE, the status of
Output changes when there is a rising edge at the Trig-
ger input. If there is no edge at the Trigger input, Out-
put remains unchanged.
Initial state All inputs and outputs are FALSE.
Non-configured inputs are assumed to be FALSE so
that they have no impact on the output.
Table100: Current impulse relay function module

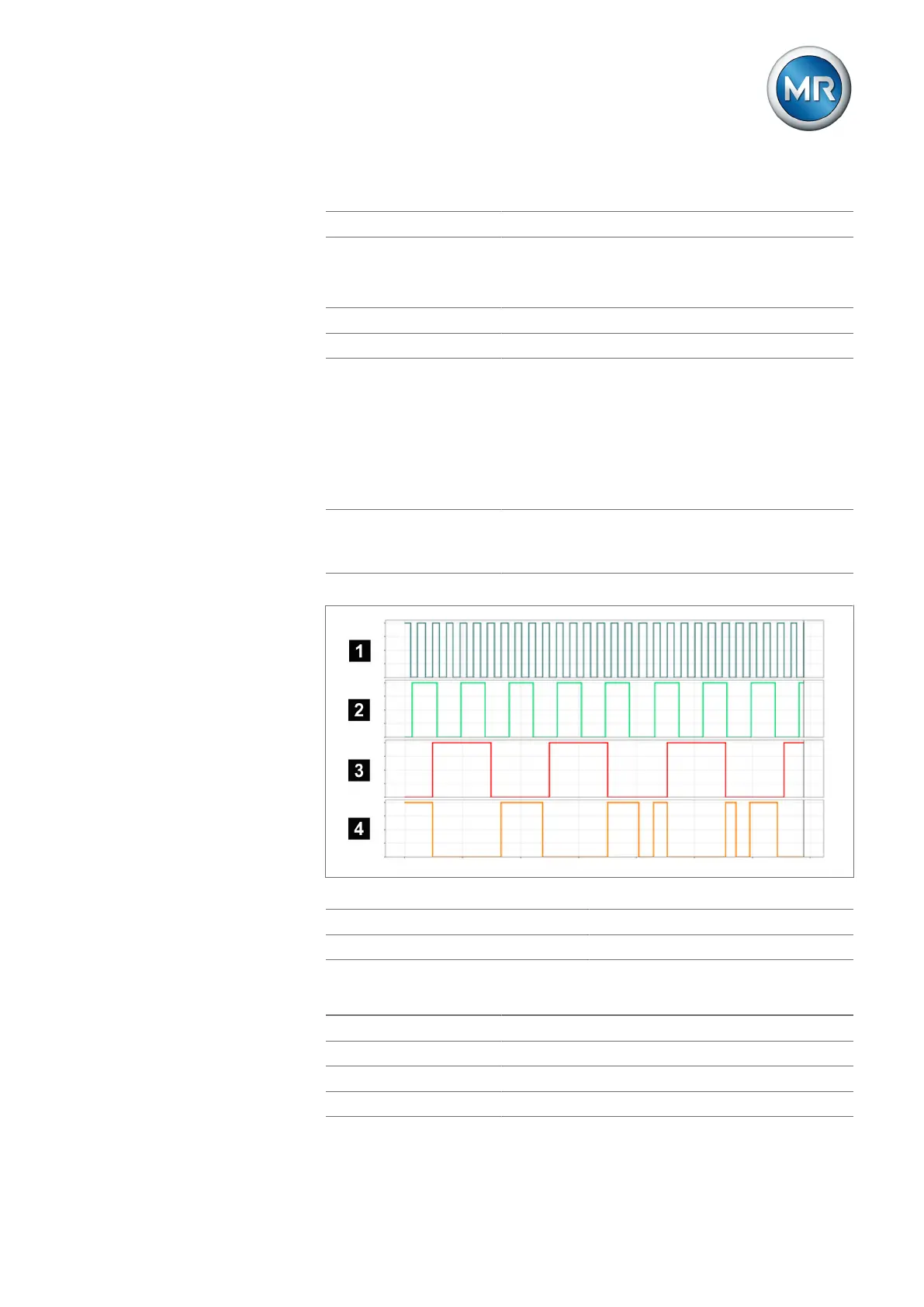

Figure181: Example of RS
1 Trigger 2 Set
3 Reset 4 Output
8.30.1.3.8 Switch-on delay
Description TON, switch-on delay
Inputs Input (BOOL)
Outputs Output (BOOL)
Parameter Time ms (UINT32), 1...1,000,000, default = 1,000
