15 Technical data
Maschinenfabrik Reinhausen GmbH 2020 3213587317/21 EN TAPCON
®
SW 3-3
Time synchronization PTPv2 (IEEE1588-2008)
RJ45 Max. 100m (per section)
10/100Mbps
Cable impedance 100Ω
Fiber-optic cable Max. 2,000m
100Mbps
Light-emitting diode: class 1
Wavelength: 1,310nm
Max. optical output power: <1mW (in accordance
with IEC60825-1:2014)

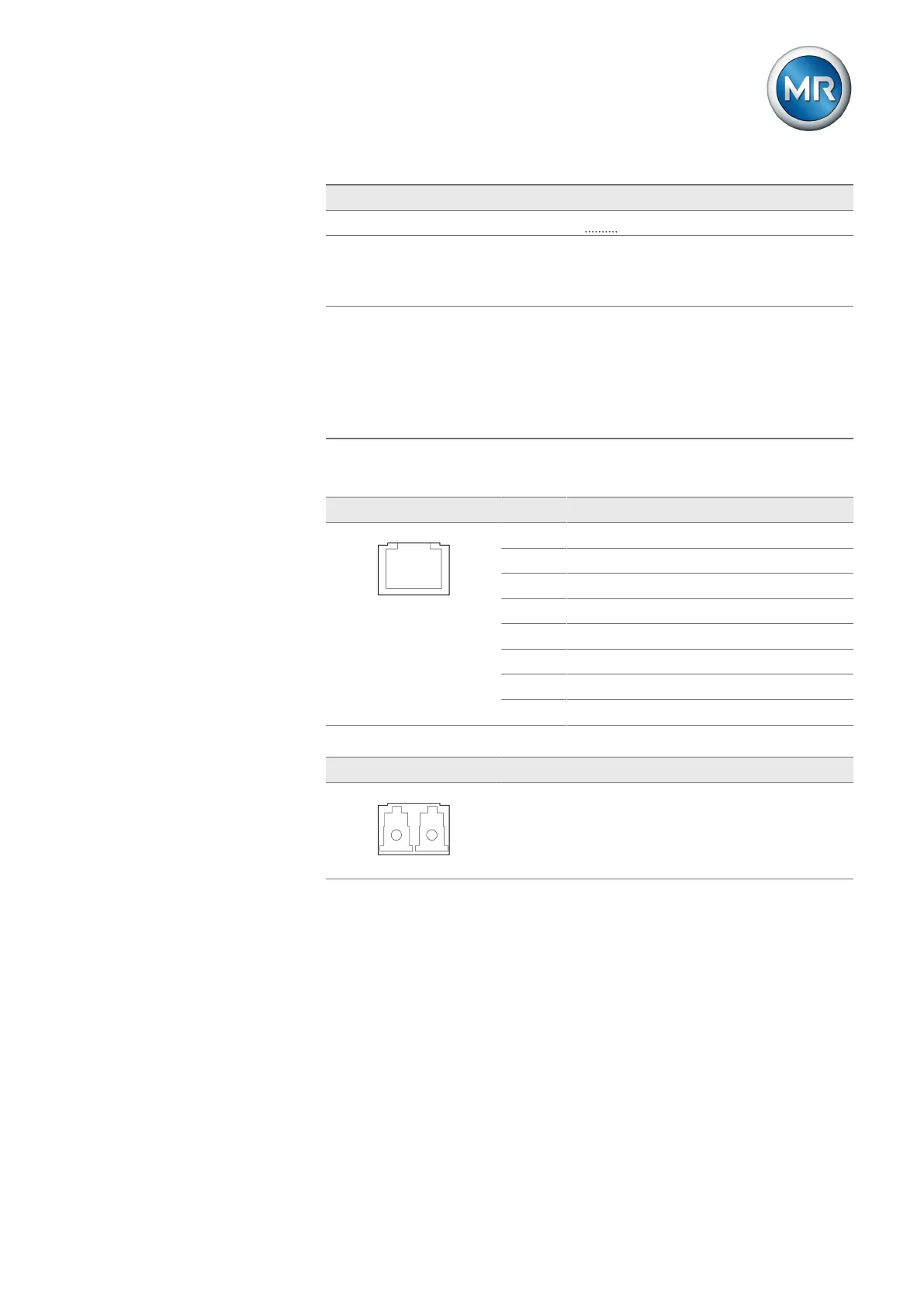

Table145: Technical data for the SW 3-3 assembly
1)
Factory setting
Interface Pin Description
1 TxD+
2 TxD-
3 RxD+
4 NC
5 NC
6 RxD-
7 NC
8 NC-
Table146: ETHxx (RJ45)
Interface Description
Fiber glass 50/125 and 62.5/125 multimode
Table147: ETHxx (duplex LC SFP)
