VJ-1604 Maintenance Manual 5 Self-Diagnosis Mode
5-37 Rev.-05

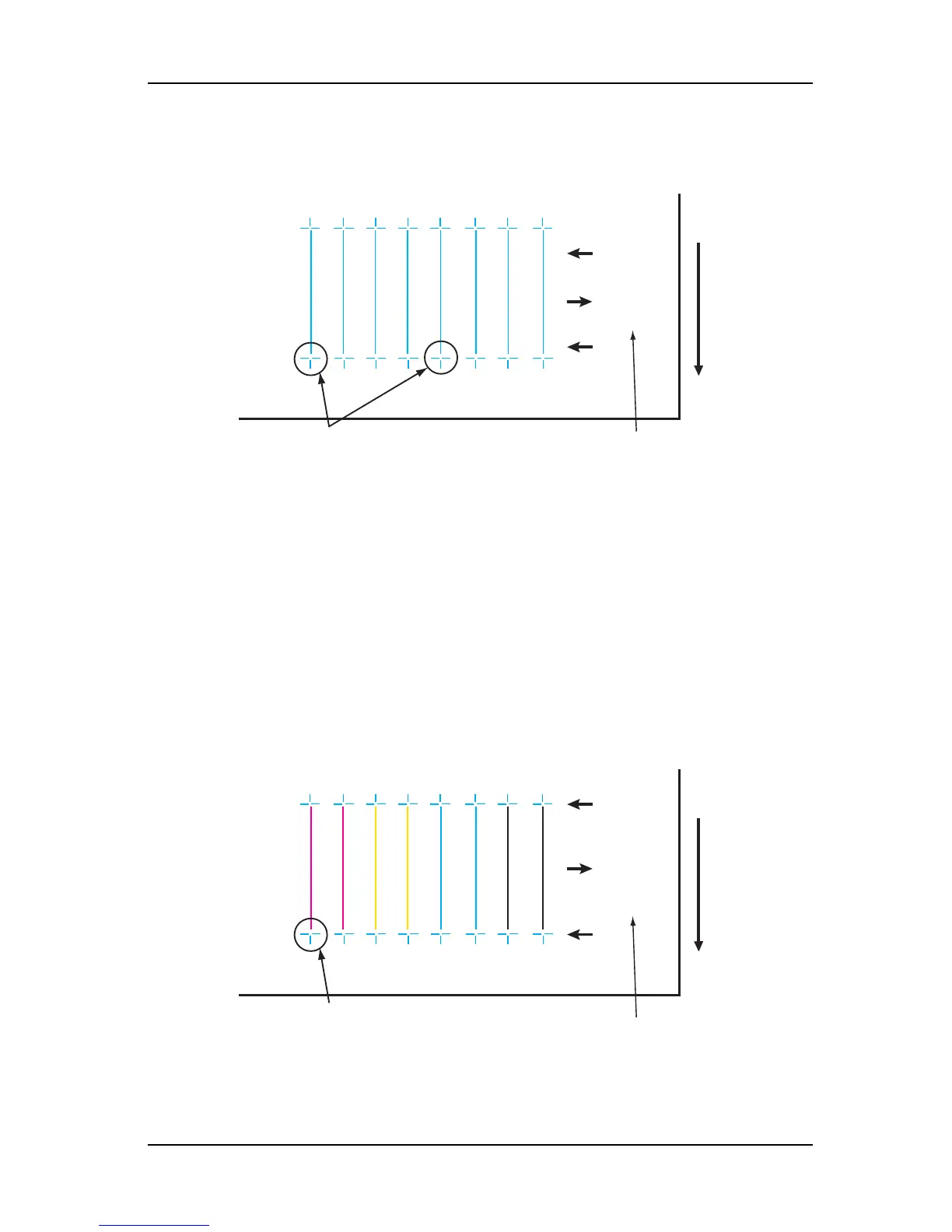

(The following shows a case for Bi-D 240 Low Print 1.)
The plotter prints the pattern by using 2A nozzle line.
* Both Uni-D / Bi-D High should be adjusted in the same procedure.
A: Media feed direction
B: Adjust the setting value so that these point matches.
C: Executed adjustment item is printed like this.
Bi-D 240: Bi-Lo/Hi 240 cps
Bi-D 320: Bi-Lo/Hi 320 cps
Bi-D 240B: Bi-Lo/Hi 240 cps-Banner
Bi-D 320B: Bi-Lo/Hi 320 cps-Banner
* Either “Lo“ or “Hi“ is displayed where explained as “Lo/Hi“ above.
(The following shows a case for Bi-D 240B Low Print 2.)
The plotter prints the pattern by using 2A nozzle line.
* Both Uni-D / Bi-D High should be adjusted in the same procedure.
A: Media feed direction
B: Adjust the setting value so that these point matches.
Bi-Lo
240cps
Banner
2A 2A 2A 2A2A2A2A2A
- + - + - + - + - + - + - + - +
B
C
A
Bi-Lo
240cps
Banner
$ # $
#
$ #
$ #
       
B
C
A
