ADD-ON MODULE-D
term
– 14 –
A2008-10
ADD-ON MODULE-D
term

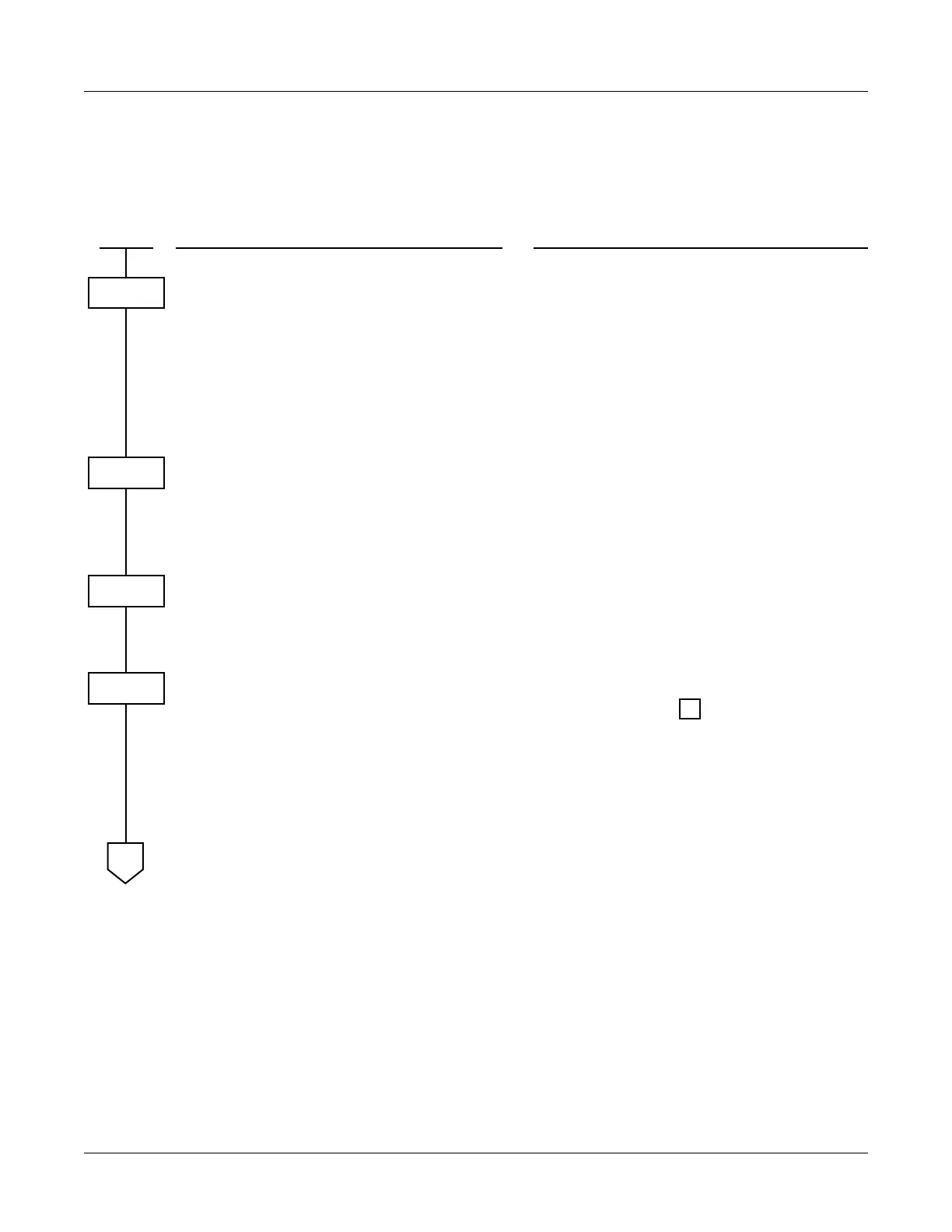

PROGRAMMING
DESCRIPTION DATA
Assign the Add-On Module number to its
associated LEN.
NOTE: When the data assignment of
both DSS Console and Add-On
Module are required, the same
number (the last two digits of the
data) cannot be used.
(1)
(2)
000-763: LEN
EC00-EC31: Add-On Module No.
For PIM0/1: EC00-EC07
For PIM2/3: EC08-EC15
For PIM4/5: EC16-EC23
For PIM6/7: EC24-EC31
NOTE
Assign the D
term
which is associated with
the Add-On Module.
NOTE: The D
term
and the Add-On Mod-
ule must be in the same PIM.
•
(1)
(2)
Y=0
00-31: Last two digits of Add-On Mod-
ule No. EC00-EC31
X-XXXXXXXX: My Line No.
Assign the Service Restriction Class for
the accommodation of Single-Line Tele-
phone to D
term
. (Assignment for Single-
Line Telephone only)
•
(1)
(2)
Y=05
X-XXXXXXXX: Station No.
0: Accommodated
Assign the station and trunk numbers to
the keys on each Add-On Module.
NOTE: Single-Line, Virtual Line or My
Line can be assigned on Add-On
Module.
•
(1)
(2)
Y=00
My Line No. + + Add-On Module
Key No. (30-54)
X-XXXXXXXX: Station No.
NOTE
D000-D255: Trunk No.
CM12
CM90
START
CM10
A
CM98
,
To Next Page
