Newport XPS-D - State Diagram

XPS Unified Programmer’s Manual

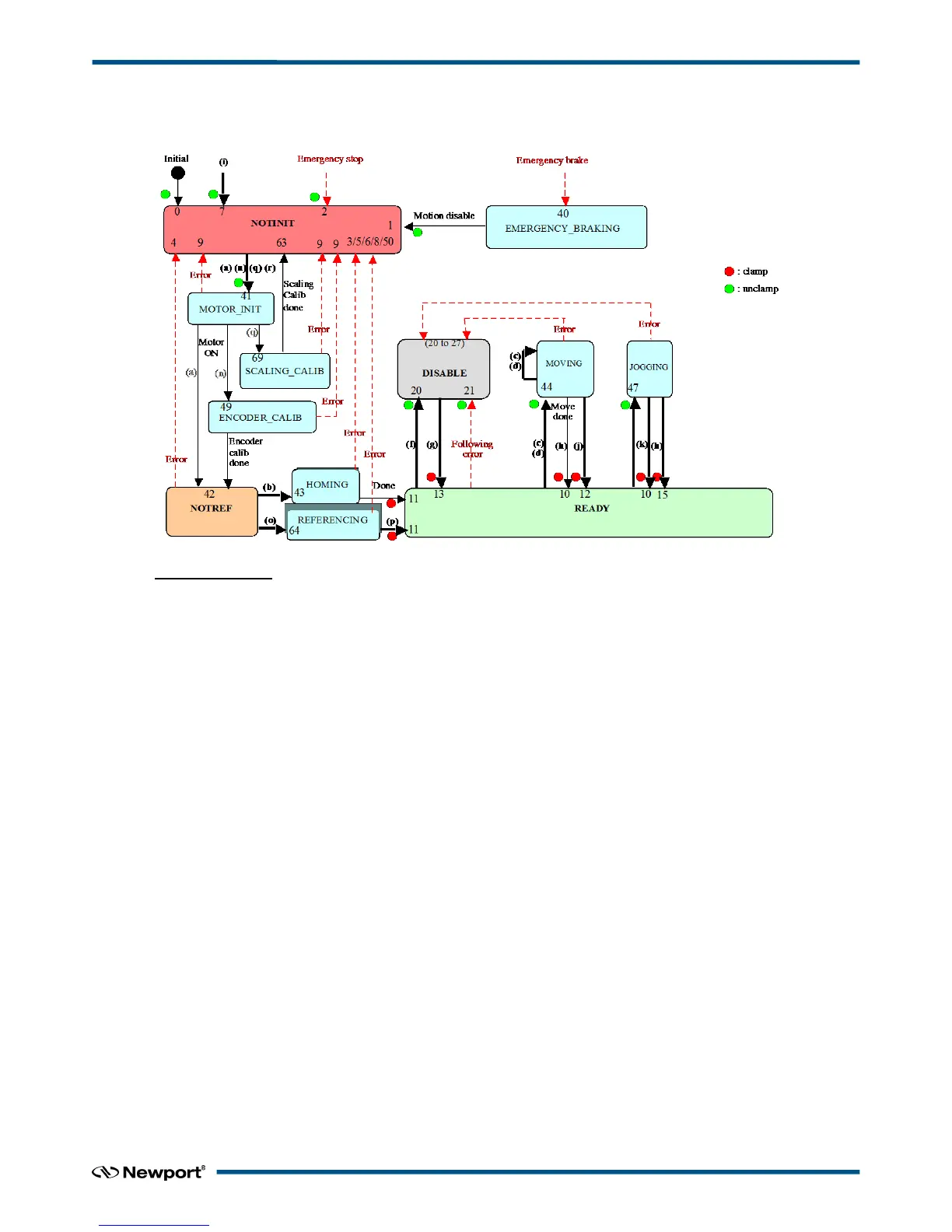

6.1.1 State Diagram
Called functions:
(a) GroupInitialize
(k) GroupJogModeDisable
(b) GroupHomeSearch
(l) GroupAnalogTrackingModeEnable
(c) GroupMoveAbsolute
(m) GroupAnalogTrackingModeDisable
(d) GroupMoveRelative
(n) GroupInitializeWithEncoderCalibration
(f) GroupMotionDisable
(o) GroupReferencingStart
(g) GroupMotionEnable
(p) GroupReferencingStop
(h) GroupMoveAbort
(q) PositionerAccelerationAutoScaling
(i) GroupKill or KillAll
(r) GroupInitializeNoEncoderReset
(j) GroupJogModeEnable
