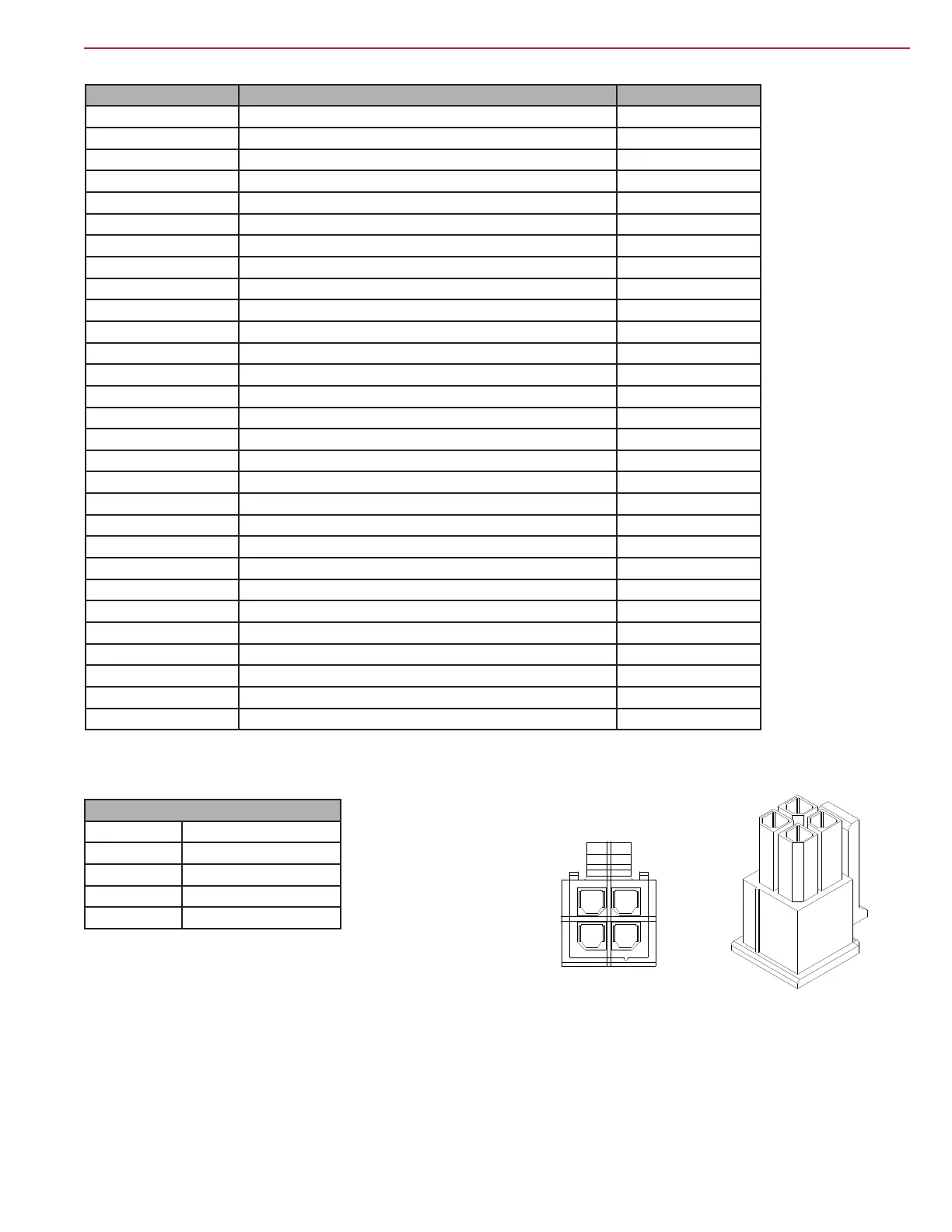

Electrical System 113Service Manual – CS7000
Component ID Component Name Connector ID
M7 Vacuum Motor X24
M8 Right side broom motor X28
M9 Left side broom motor X26
M10 Hydraulic Pump, Hopper Lift X126
M11 Scrub Deck Actuator Motor X256
M12 Squeegee Lift actuator X22
M13 Side broom actuator X109
M14 Shaker motor X20
M16 Steering Actuator X97
M19 Pump, Solution Control (Optional) X111
M20 Fuel pump X275
M21 Main Broom actuator X27
M22 Dust guard pump X122
M23 Pump, Low Pressure (Optional) X20
M23 Low Pressure Pump (Optional) X120
M24 Wheel Drive Motor X99
M24 Wheel Drive Motor X100
M25 Pump, Extended Scrub (optional) X118
M26 Dump door actuator motor X124
R1 Drive Pedal Position Sensor X145
S1 Scrub Deck Retract Limit Switch X255
S3 Hopper Interlock Switch X204
S4 Extended Scrub Level Switch (optional) X268
S5 Brake switch X202
S7 Dump door extend limit switch X236
S8 Dump door retract limit switch X238
S13 Battery interlock switch X187
S16 Steering Travel Limit Switch, Right X106
S17 Steering Travel Limit Switch, Left X105
J1 - Control Panel (A3)
Pin Wire # Color
1 130 WHT/BRN
2 304 BLK
3 301 YEL
4 300 GRN
SIDE
FRONT
MOLEX 430250400
To Next Page
