Nilfisk-Advance CS7000 Service Manual

Electrical System 114Service Manual – CS7000
J2 - Main Machine Controller (A1)
Pin Wire # Color
1 091 ORN/YEL
2 094 ORN/BLU
3 098 YEL/RED
4 101 YEL/GRN
5 107 TAN/BLK
6 064 BLK/YEL
7 119 BRN/WHT
8 080 WHT/GRN
9 078 BLU/BRN
10 132 RED/GRN
11 135 YEL/GRA
12 162 BLK
13 057 VIO
14 051 BLK/ORN
15 163 BRN/BLK
16 063 GRN/GRA
17 045 BLU
18 150 BLK/RED
19 116 WHT/YEL
20 157 YEL/ORN
21 160 BLU/VIO
22 167 BLK/YEL
23 169 BRN
24 039 ORN/RED
25 047 YEL/BLU
26 015 WHT/VIO
27 061 GRA/RED
28 038 BLU/ORN
29 ---
30 ---
31 ---
32 221 GRA/BLIU
33 ---
34 054 BLK/WHT
35 053 BLK/WHT

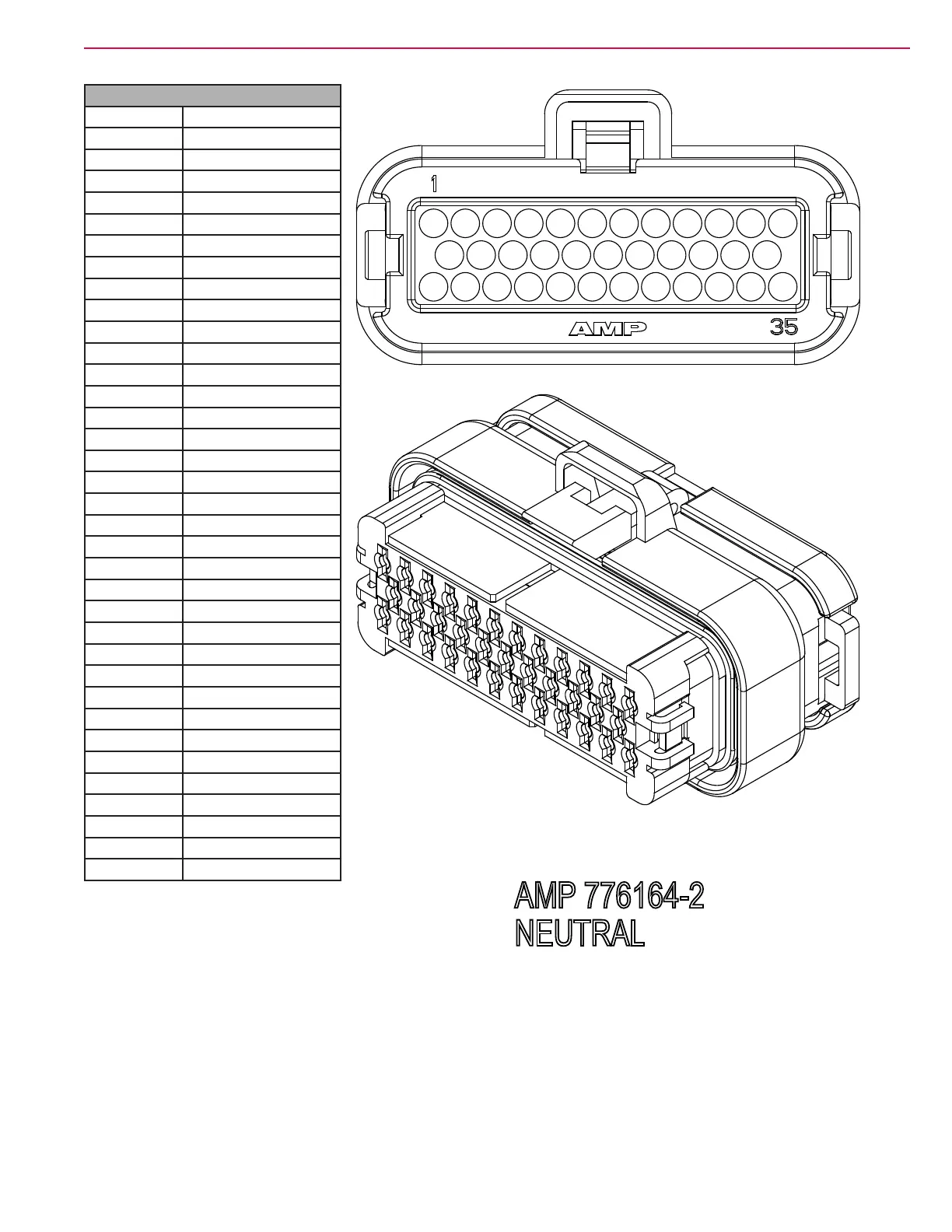

AMP 776164-2
NEUTRAL
J2
