Electrical System 115Service Manual – CS7000

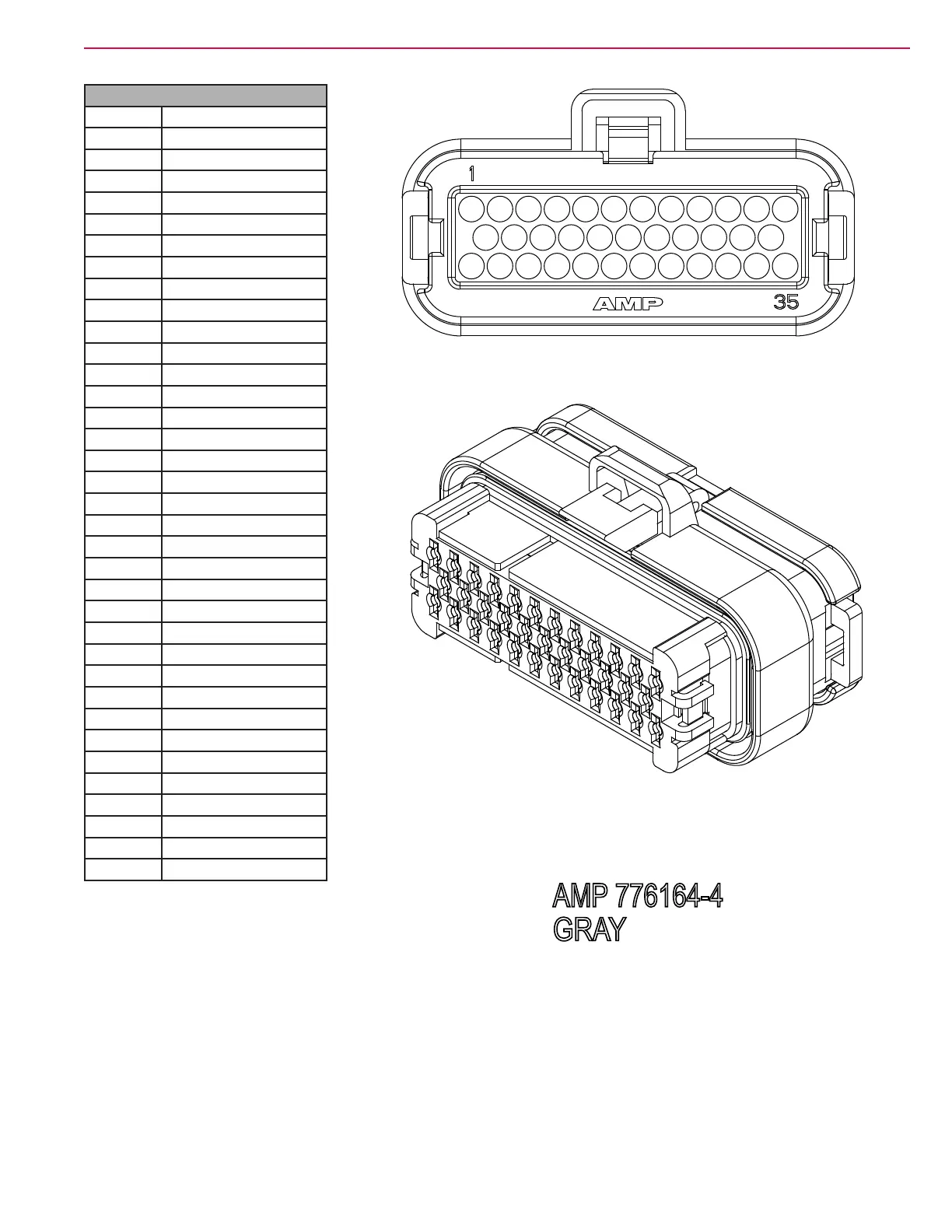

J3 - Main Machine Controller (A1)
Pin Wire # Color
1 042 VIO/ORN
2 093 RED/YEL
3 030 BRN/WHT
4 031 RED/VIO
5 106 GRA/VIO
6 111 BRN/GRN
7 115 RED/GRA
8 118 WHT/ORN
9 123 PINK
10 129 BLU/PINK
11 131 GRA/ORN
12 134 GRA/BLU
13 137 BRN/RED
14 139 VIO/BRN
15 144 BLK
16 142 BLK
17 250 GRN/ORN
18 149 BLK
19 154 BLK
20 156 BLK
21 159 BLK
22 ---
23 059 VIO/RED
24 171 GRN/WHT
25 ---
26 058 GRA
27 076 GRN/BRN
28 ---
29 166 BLK
30 ---
31 ---
32 049 ORN/BLK
33 ---
34 056 GRA/BLK
35 055 GRA/BLK
AMP 776164-4
GRAY
J3
