Nilfisk-Advance CS7000 Service Manual

Electrical System 116Service Manual – CS7000

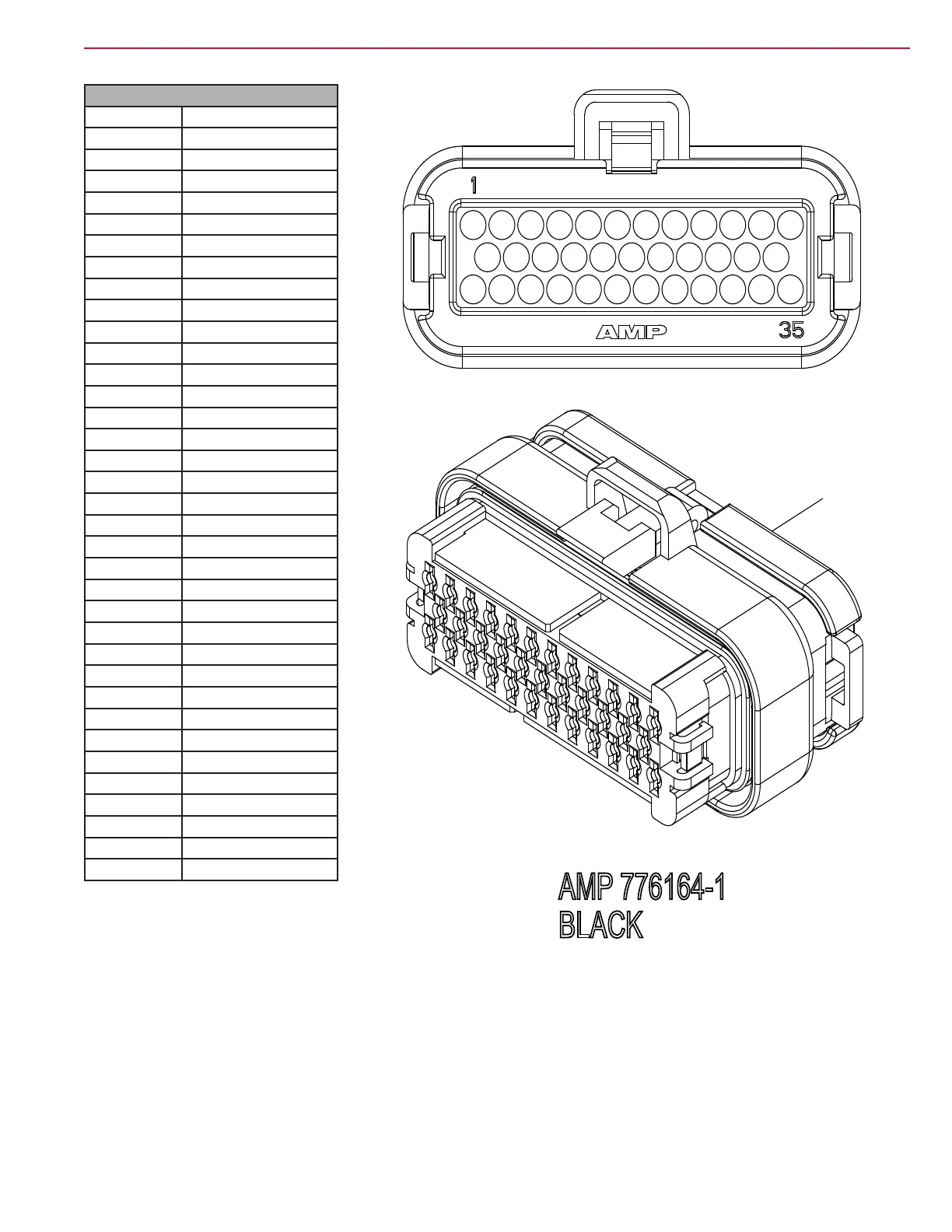

J4 - Drive Controller (A2)
Pin Wire # Color
1 185 ORN
2 ---
3 ---
4 ---
5 ---
6 126 VIO/GRN
7 186 BLK/PINK
8 187 TAN/RED
9 188 GRN/BLU
10 ---
11 ---
12 ---
13 127 TAN/ORN
14 ---
15 189 WHT/BLK
16 190 BRN/RED
17 ---
18 191 VIO/BLK
19 ---
20 ---
21 ---
22 ---
23 192 YEL
24 ---
25 193 VIO/WHT
26 194 PINK/RED
27 ---
28 195 WHT/ORN
29 196 BLU/GRN
30 ---
31 197 PINK/WHT
32 198 PINK/BLU
33 ---
34 ---
35 342 GRN
AMP 776164-1
BLACK
