Electrical System 118Service Manual – CS7000

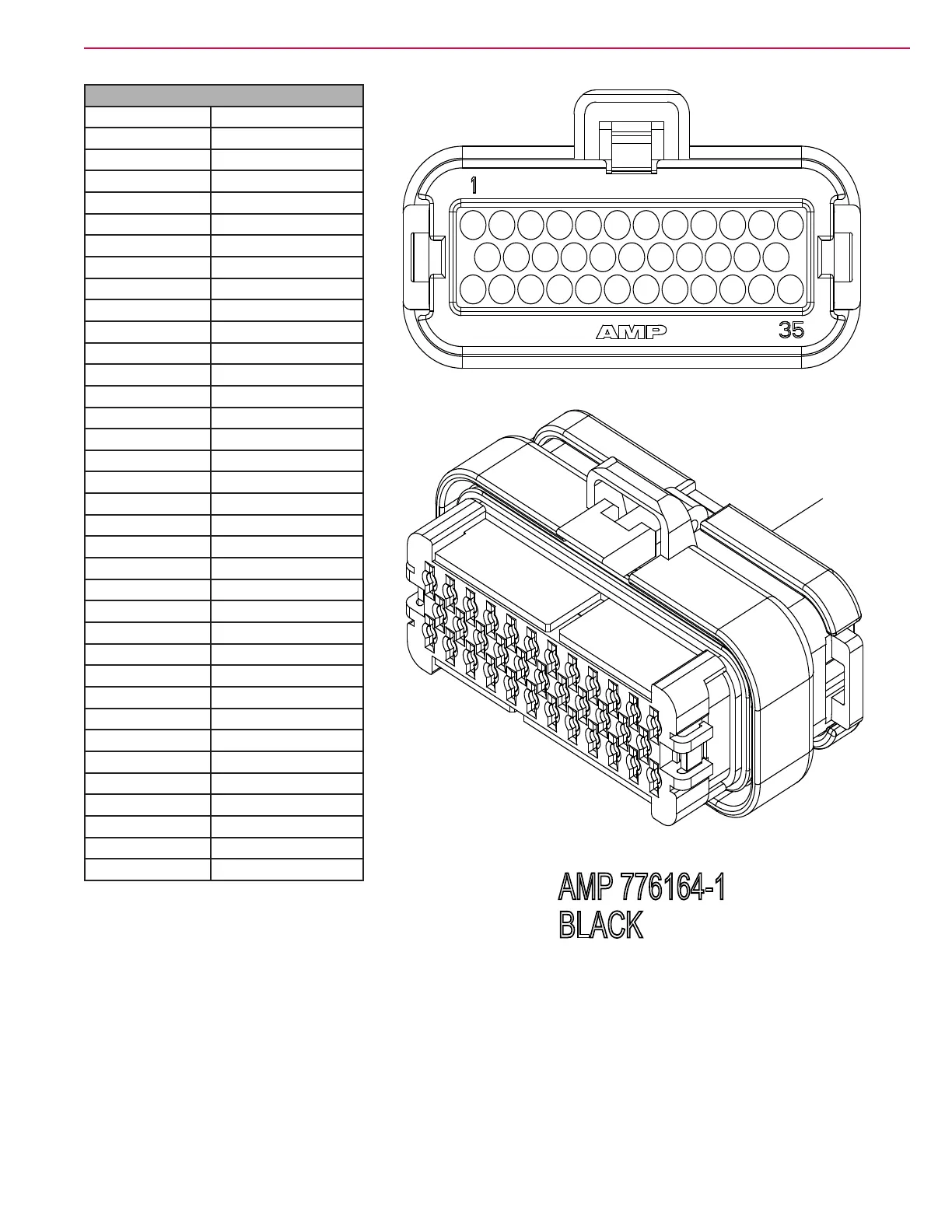

J7 - Main Machine Controller (A1)
Pin Wire # Color
1 092 GRN/BLU
2 095 GRN
3 099 YEL
4 102 GRA
5 108 GRA/YEL
6 112 TAN/WHT
7 117 YEL/RED
8 ---
9 ---
10 130 WHT/BRN
11 133 BLK
12 050 YEL/BRN
13 141 ORN
14 046 RED/BLK
15 035 GRA/YEL
16 143 WHT/GRA
17 145 ORN/GRA
18 151 YEL/VIO
19 155 VIO/GRN
20 ---
21 161 RED/ORN
22 168 ORN/RED
23 170 YEL/WHT
24 172 BLU/YEL
25 174 VIO/WHT
26 ---
27 178 BRN
28 ---
29 184 RED/WHT
30 ---
31 215 ORN/BLU
32 ---
33 032 BLU/ BLK
34 033 GRA/GRN
35 034 TAN/RED
AMP 776164-1
BLACK
