Electrical System 119Service Manual – CS7000

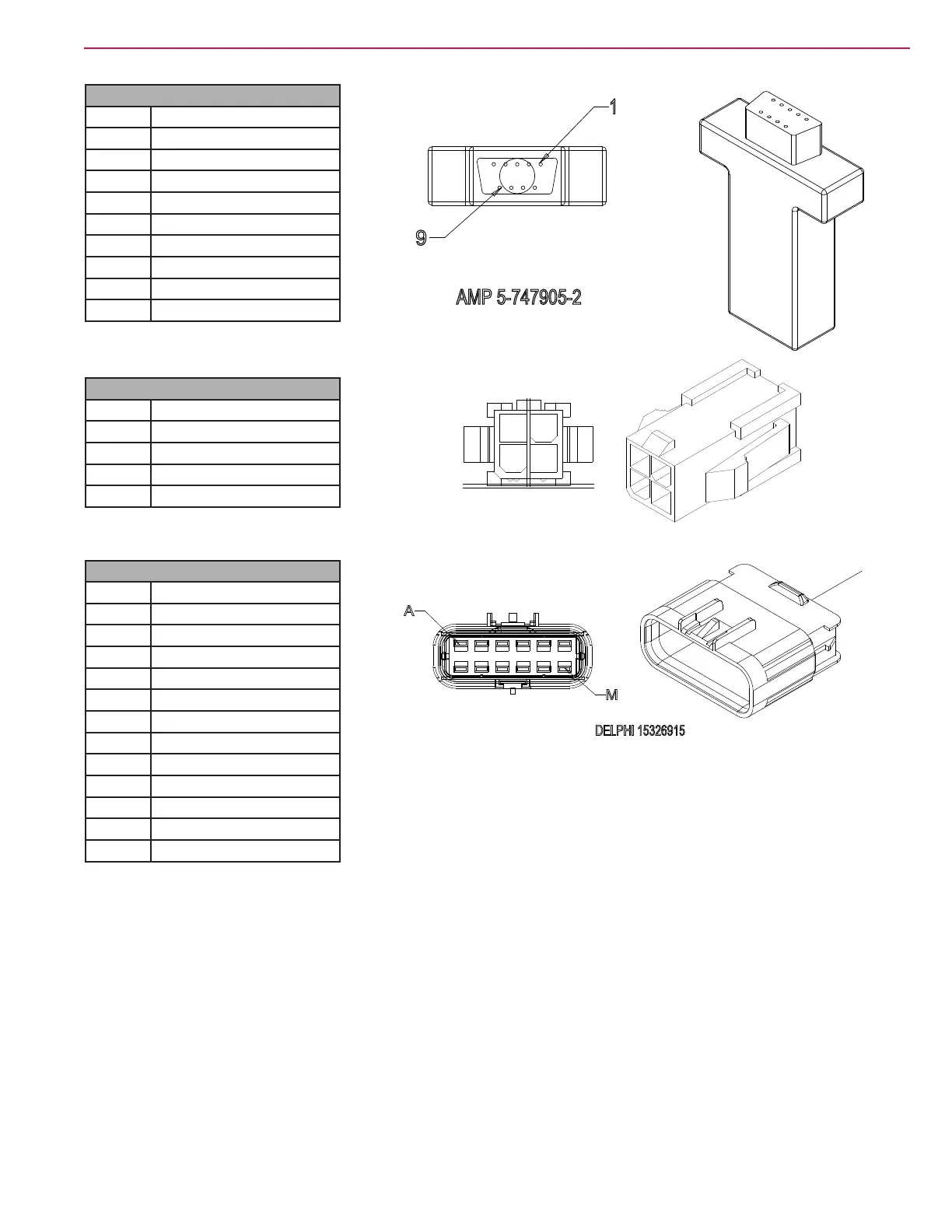

J8 - CAN Bus Connector

Pin Wire # Color

1 ---

2 241 GRN

3 242 BLK

4 ---

5 ---

6 ---

7 243 YEL

8 ---

9 ---

J10 - Drive Controller Programmer

Pin Wire

1 196 BLU/GRN

2 249 BLK/PINK

3 195 WHT/ORN

4 193 VIO/WHT

X1 - Hopper Harness Connector (X262)

Pin Wire

A 264 GRA

B 137 BRN/RED

C 143 WHT/GRA

D 244 BLK

E 151 YEL/VIO

F 240 BLK

G 070 ORN/GRN

H 248 BLK

J 067 VIO

K 150 BLK/RED

L 169 BRN

M 238 BLK/WHT

AMP 5-747905 -2

SIDE

TOP

MOLEX 39012041

DELPHI 15326915
