Electrical System 120Service Manual – CS7000

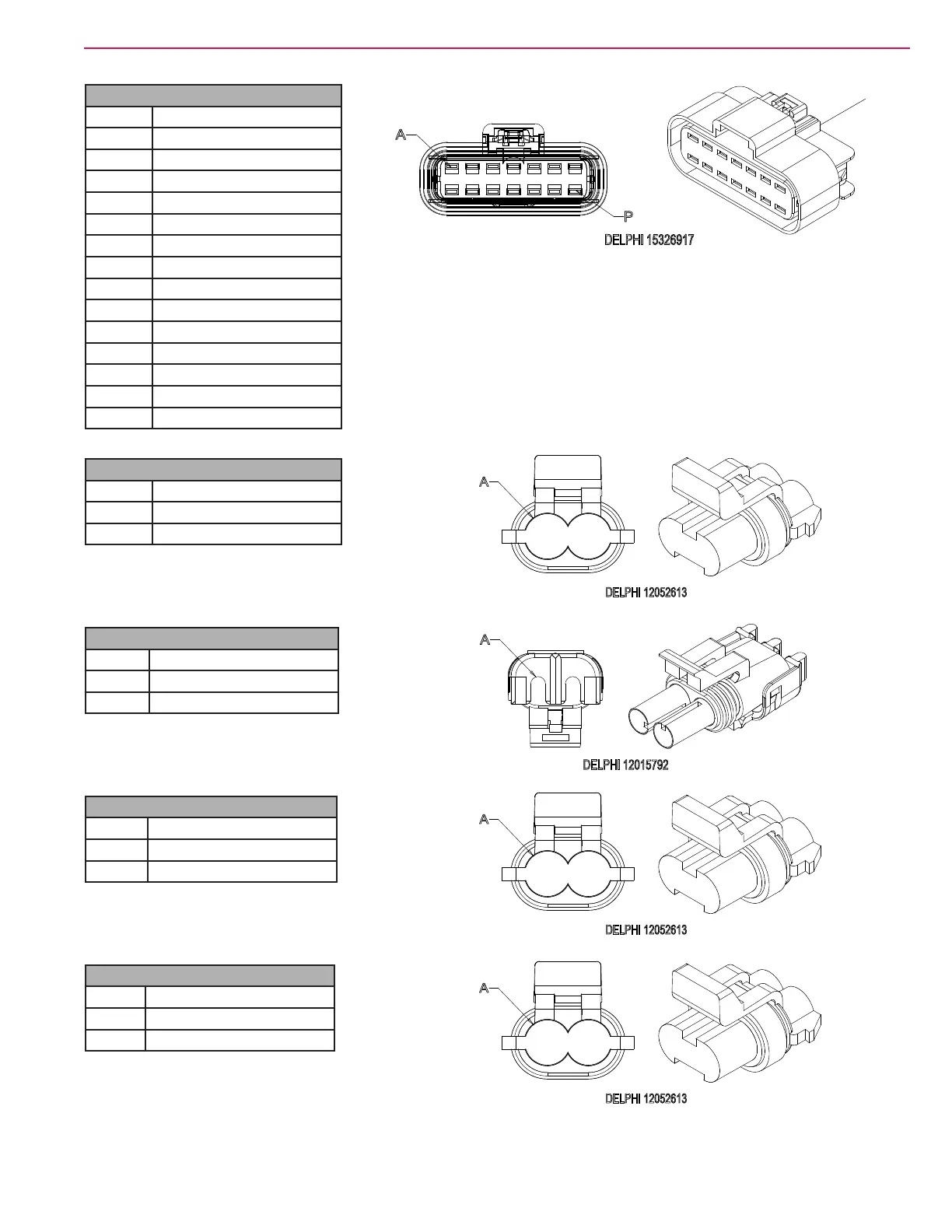

X2 - Hopper Harness Connector (X263)

Pin Wire

A ---

B 091 ORN/YEL

C 284 BLK/YEL

D 098 YEL/RED

E 106 GRA/VIO

F 250 GRN/ORN

G 111 BRN/GRN

H 115 RED/GRA

J 168 ORN/RED

K 235 BLK

L 170 YEL/WHT

M 239 BLK

N 071 WHT/RED

P 233 BLK

X17- Brush Motor, Right (M4)

Pin Wire # Color

A 251 BLK

B 152 BLU/YEL

X18 - Brush Motor, Center (M3)

Pin Wire

A 109 GRA/BLK

B 254 BLK

X19 - Brush Motor, Left (M2)

Pin Wire

A 113 WHT/ORN

B 253 BLK

X20 - Shaker Motor (M14)

Pin Wire

A 267 VIO

B 268 BLK/RED

DELPHI 15 326917

DELPHI 12052613

DELPHI 120157 92

DELPHI 12052613
