Electrical System 121Service Manual – CS7000

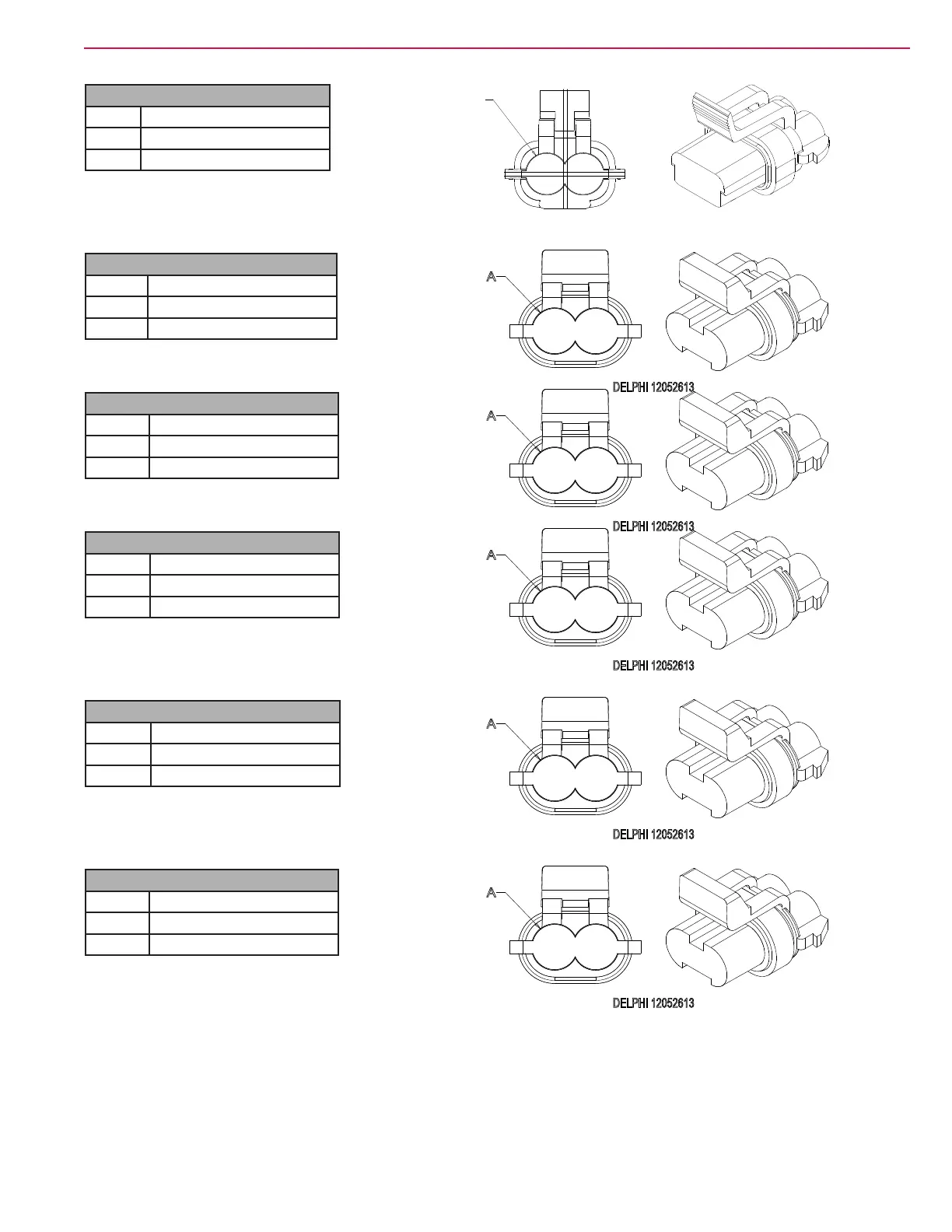

X21 - Dust Control Motor (M5)

Pin Wire

A 259 ORN/GRN

B 260 BLK

X22 - Squeegee Lift Actuator (M12)

Pin Wire

A 080 WHT/GRN

B 078 BLU/BRN

X23 - Vacuum Motor (M6)

Pin Wire

A 017 BLU/GRA

B 018 BLK

X24 - Vacuum Motor (M7)

Pin Wire

A 019 BLU/GRA

B 020 BLK

X25 - Main Broom Motor (M1)

Pin Wire

A 043 BRN/VIO

B 044 BLK

X26 - Left Side Broom Motor (M9)

Pin Wire

A 213 WHT/RED

B 214 BLK

SIDE

TOP

DELPHI 15300027

DELPHI 12052613
