Electrical System 122Service Manual – CS7000

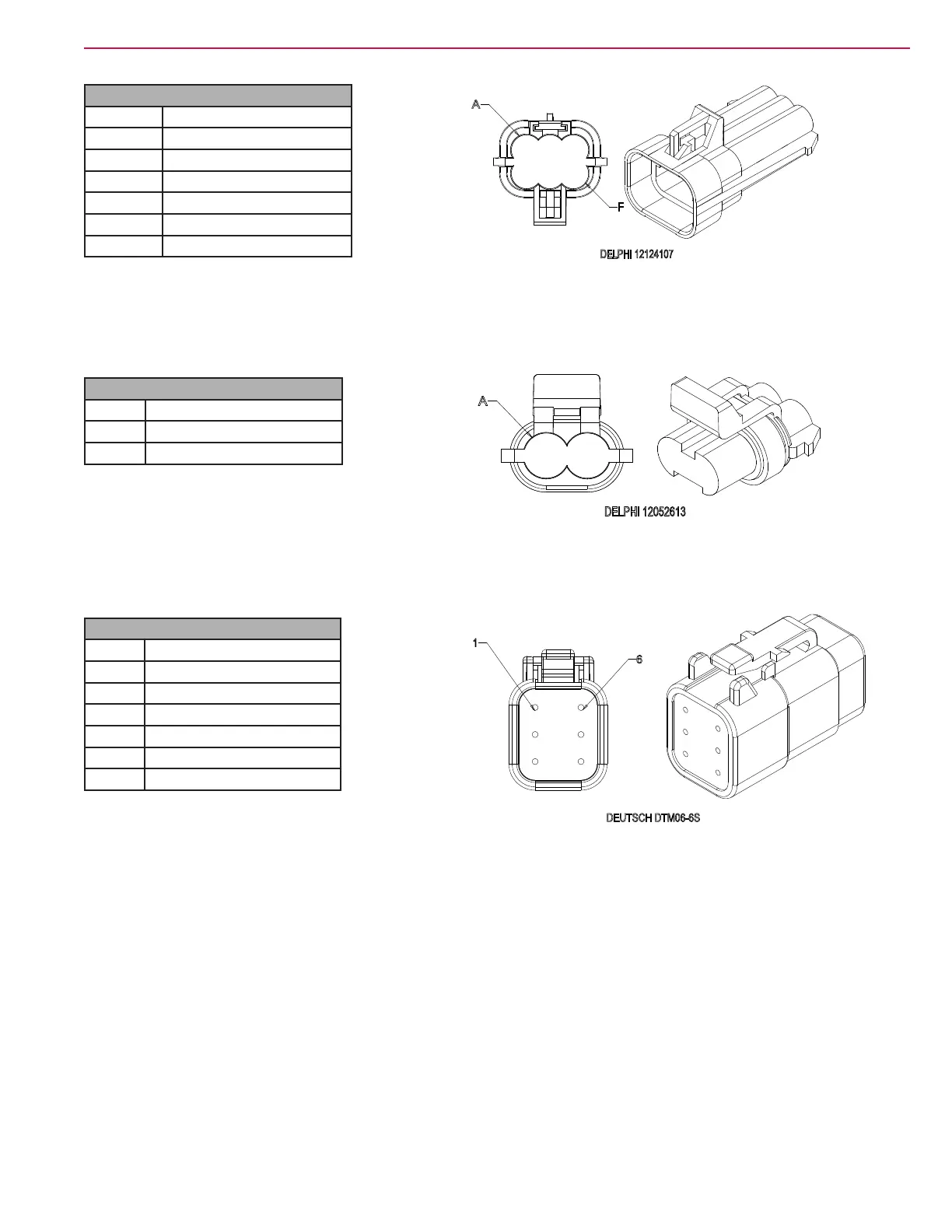

X27 - Main Broom Actuator (M21)

Pin Wire

A 030 BRN/WHT

B 031 RED/VIO

C 032 BLU/ BLK

D 033 GRA/GRN

E 034 TAN/RED

F ---

X28 - Right Side Broom Motor (M8)

Pin Wire

A 295 WHT/RED

B 297 BLK

X97 - Steering Actuator (M16)

Pin Wire

1 299 ORN/BLK

2 202 WHT

3 203 BLU/GRA

4 208 YEL/RED

5 ---

6 298 BLK

DELPHI 12124107

DELPHI 12052613

DEUTSCH DTM06-6S
