Electrical System 123Service Manual – CS7000

X98 - Steering Wheel Sensor (E4)

Pin Wire

1 307 GRN/WHT

2 309 BLU

3 205 BLK

4 209 ORN/BLK

5 308 RED/WHT

6 310 GRN/BLK

7 206 BLK

8 211 ORN/BLK

9 199 BRN/WHT

10 329 GRA/ORN

11 ---

12 ---

X99 - Wheel Drive Motor (M24)

Pin Wire

1 194 PINK/RED

2 198 PINK/BLU

3 197 PINK/WHT

4 288 BLK/PINK

X100 - Wheel Drive Motor (M24)

Pin Wire

1 187 TAN/RED

2 289 BLK/PINK

X102 - Generator Harness Connector

(X107)

Pin Wire

+ 228 WELDING RED 3-0

- 235 WELDING BLK 3-0

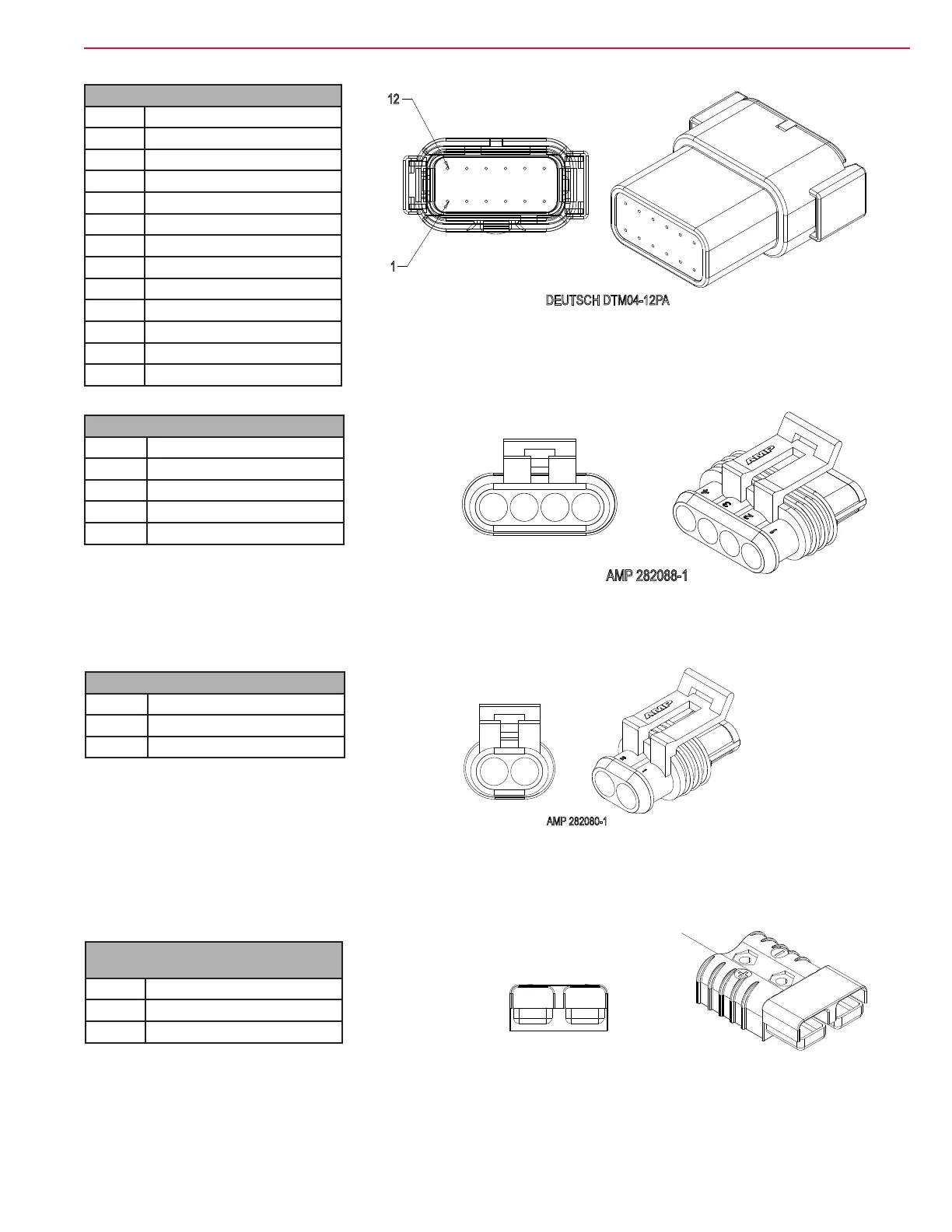

DEUTSCH DTM04-12PA

AMP 282088-1

AMP 282080-1
