Electrical System 124Service Manual – CS7000

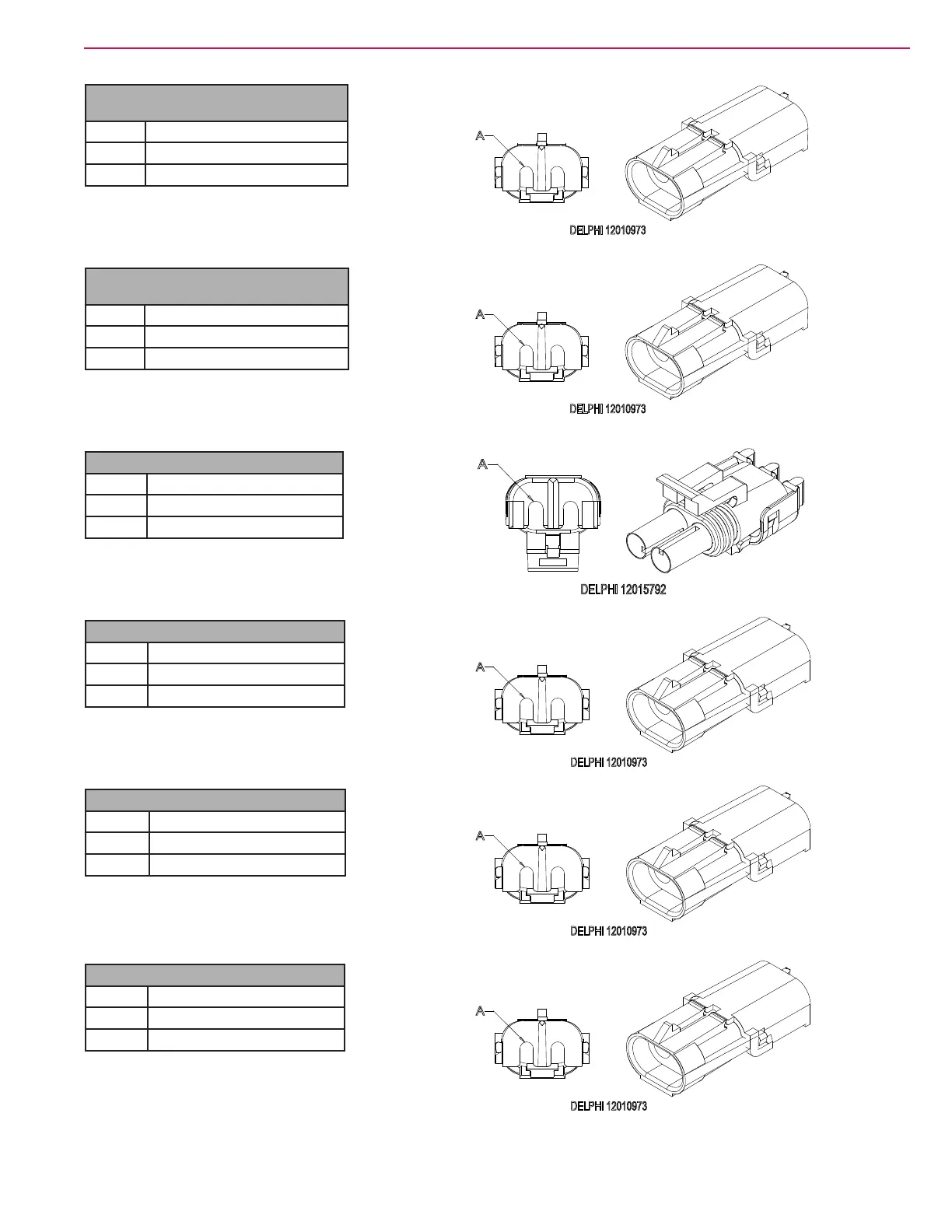

X105 - Steering Travel Limit Switch, Left

(S17)

Pin Wire

A 210 ORN/RED

B 270 GRA/ORN

X106 - Steering Travel Limit Switch, Right

(S16)

Pin Wire

A 207 WHT/BLU

B 277 GRA/ORN

X109 - Side Broom Actuator (M13)

Pin Wire

A 282 GRA/VIO

B 283 GRN/ORN

X111 - Pump, Solution Control (M19)

Pin Wire

A 269 GRA

B 093 RED/YEL

X118 - Pump, Extended Scrub (M25)

Pin Wire

A 041 GRA

B 042 VIO/ORN

X120 - Low Pressure Pump (M23)

Pin Wire

A 266 GRA

B 171 GRN/WHT

DELPHI 12010973

DELPHI 120157 92

DELPHI 12010973
