Electrical System 125Service Manual – CS7000

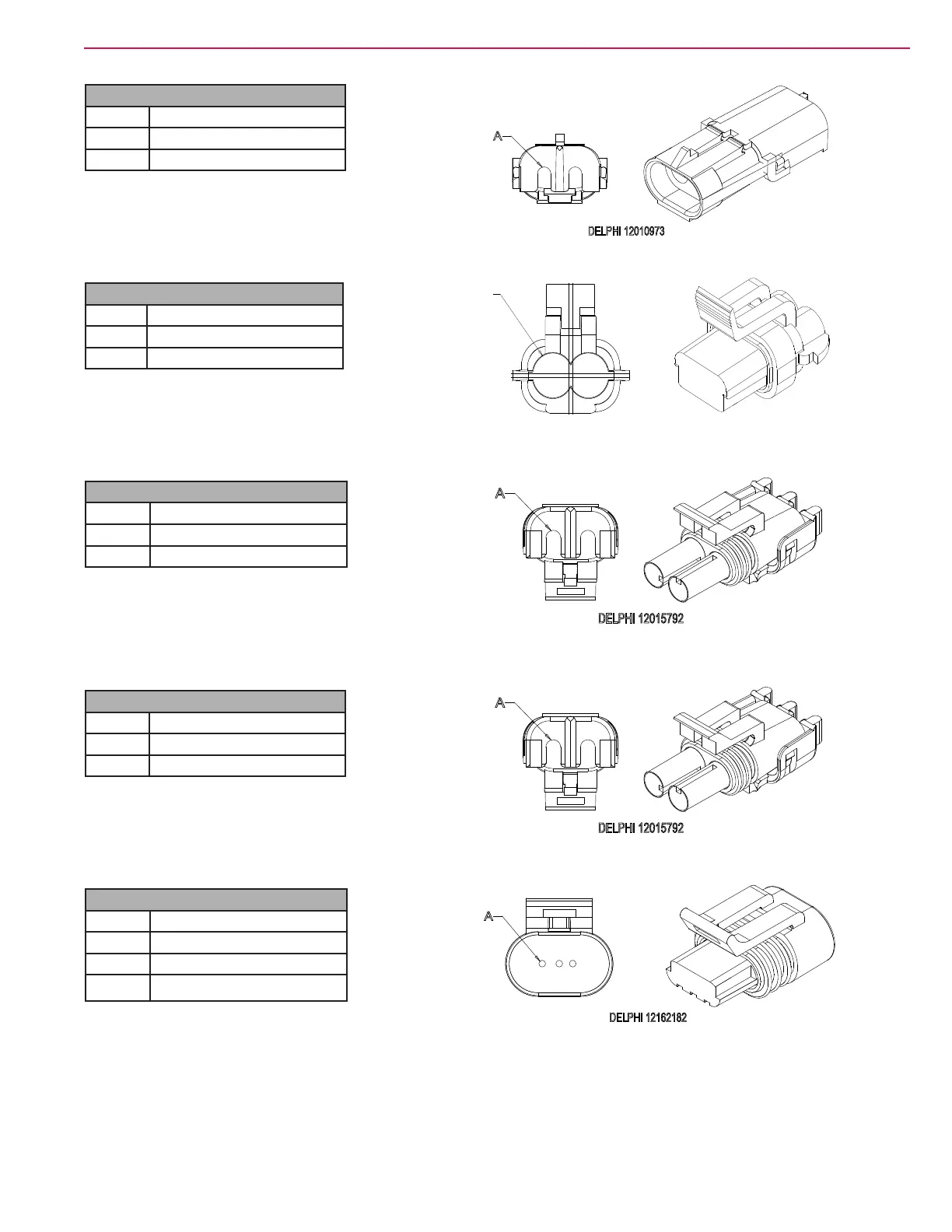

X122 - Dust Guard Pump (M22)

Pin Wire

A 147 GRA

B 148 BRN/RED

X124 - Dump Door Actuator Motor (M26)

Pin Wire

A 286 BRN/GRN

B 287 RED/GRA

X126 - Hydraulic Pump, Hopper Lift (M10)

Pin Wire

A 175 BLU/YEL

B 177 RED/BRN

X140 - Dust Guard Valve (L2)

Pin Wire

A 086 GRA

B 087 BRN/RED

X145 - Drive Pedal Position Sensor (R1)

Pin Wire

A 189 WHT/BLK

B 190 BRN/RED

C 191 VIO/BLK

DELPHI 12010973

SIDE

TOP

DELPHI 15300027

DELPHI 120157 92
